Optical drive

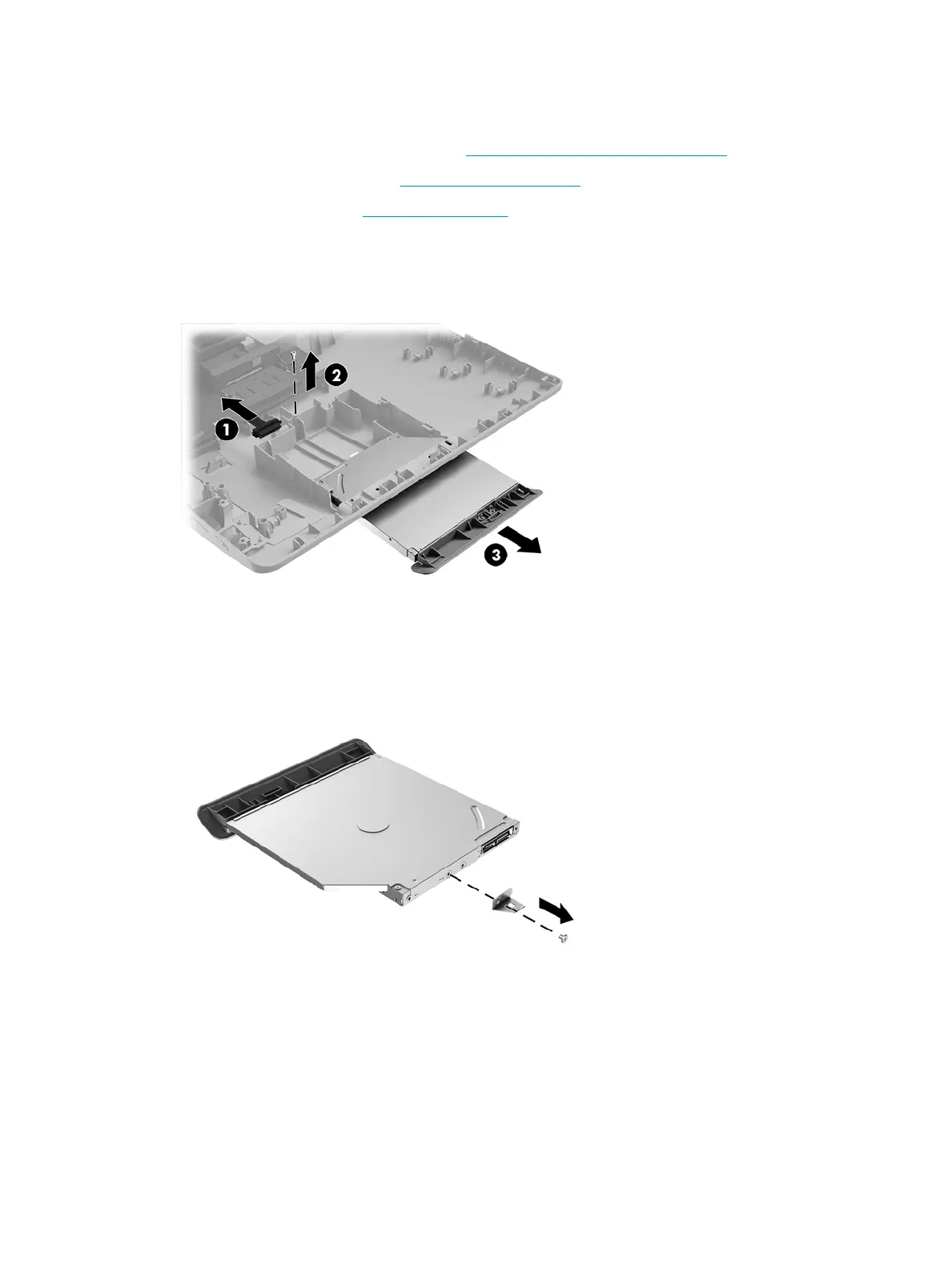

1. Prepare the computer for disassembly (see Preparation for disassembly on page 13).
2. Remove the stand assembly (see Stand assembly on page 14).
3. Remove the rear cover (see Rear cover on page 15).
4. Disconnect the optical drive cable (1) from the optical drive.
5. Remove the slotted Torx screw (2) that secures the optical drive to the rear cover.
6. Remove the optical drive (3).
7. Remove the Phillips screw that secures the optical drive bracket to the optical drive, and then remove
the optical drive bracket.
Reverse this procedure to reassemble and install the optical drive.
