7. Four threaded holes are exposed. These holes are for screws to attach the swing arm or other
mounting fixture to the back of the monitor.

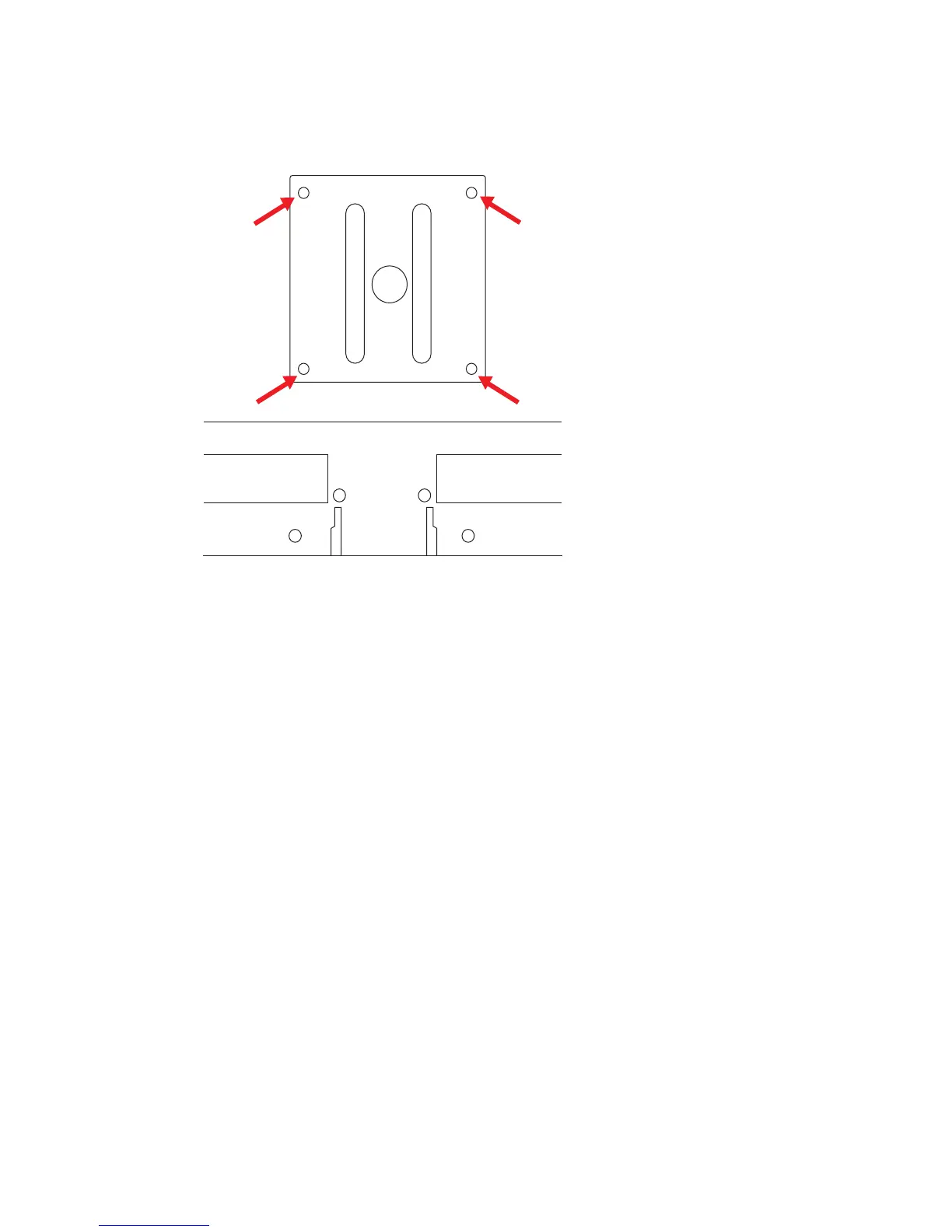

Figure 3-7 Threaded holes for attaching wall mount
8. Follow the instructions included with the mounting fixture to ensure that the monitor is safely
attached.
The four threaded holes that are on the back of the panel are compliant with the VESA standard
for mounting flat-panel monitors.
9. Attach a swing arm or other mounting fixture.
Connecting Monitor Cables
Connecting the VGA (Analog) Cable or DVI-D (Digital) Cable or HDMI Cable
Use a VGA video cable, DVI-D cable or HDMI cable to connect your monitor to your computer. To
use DVI, you must have a DVI-compliant graphic card. Connectors are located on the back of the
monitor. Be sure the computer and monitor are turned off and unplugged.
1. To connect the VGA cable (provided with select models)
Connect one end of the VGA video cable to the back of the monitor and the other end to the
VGA video connector on the computer.
Connecting Monitor Cables 11
