Display assembly
NOTE: The display assembly subcomponents are spared as individual components.
Before removing the display assembly subcomponents, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 33).
5. Remove the service cover (see
WLAN module on page 38).
6. Remove the rear covers (see
Keyboard on page 48).
Remove the display assembly subcomponents:

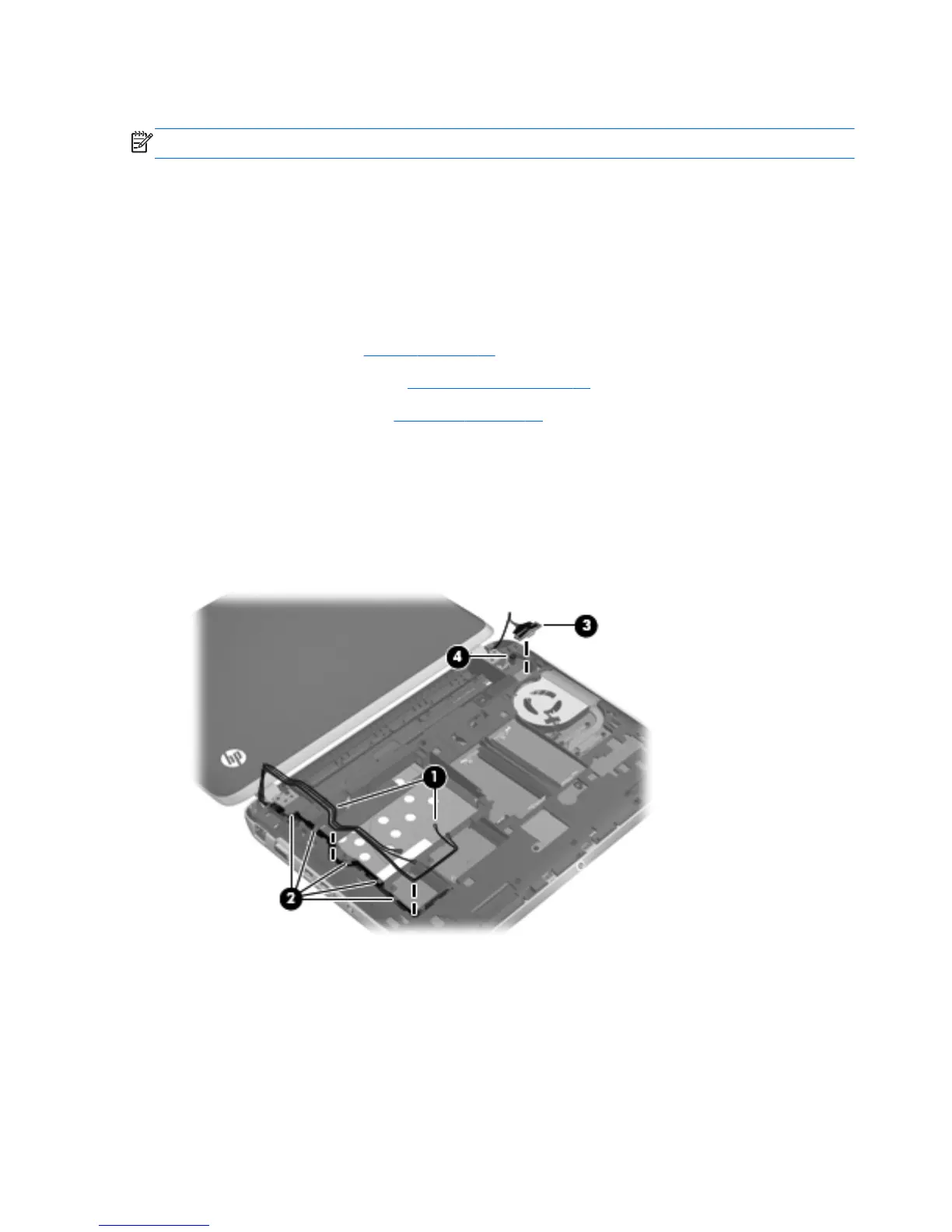

1. Release the wireless antenna cables (1) from the clips (2) and routing channel built into the
base enclosure.
2. Disconnect the display panel cable (3) from the system board.
3. Release the display panel cable (4) from the clip built into the base enclosure.
4. Remove the two Phillips PM2.0×5.7 screws (1) that secure the display assembly to the
computer.
52 Chapter 4 Removal and replacement procedures
