2.

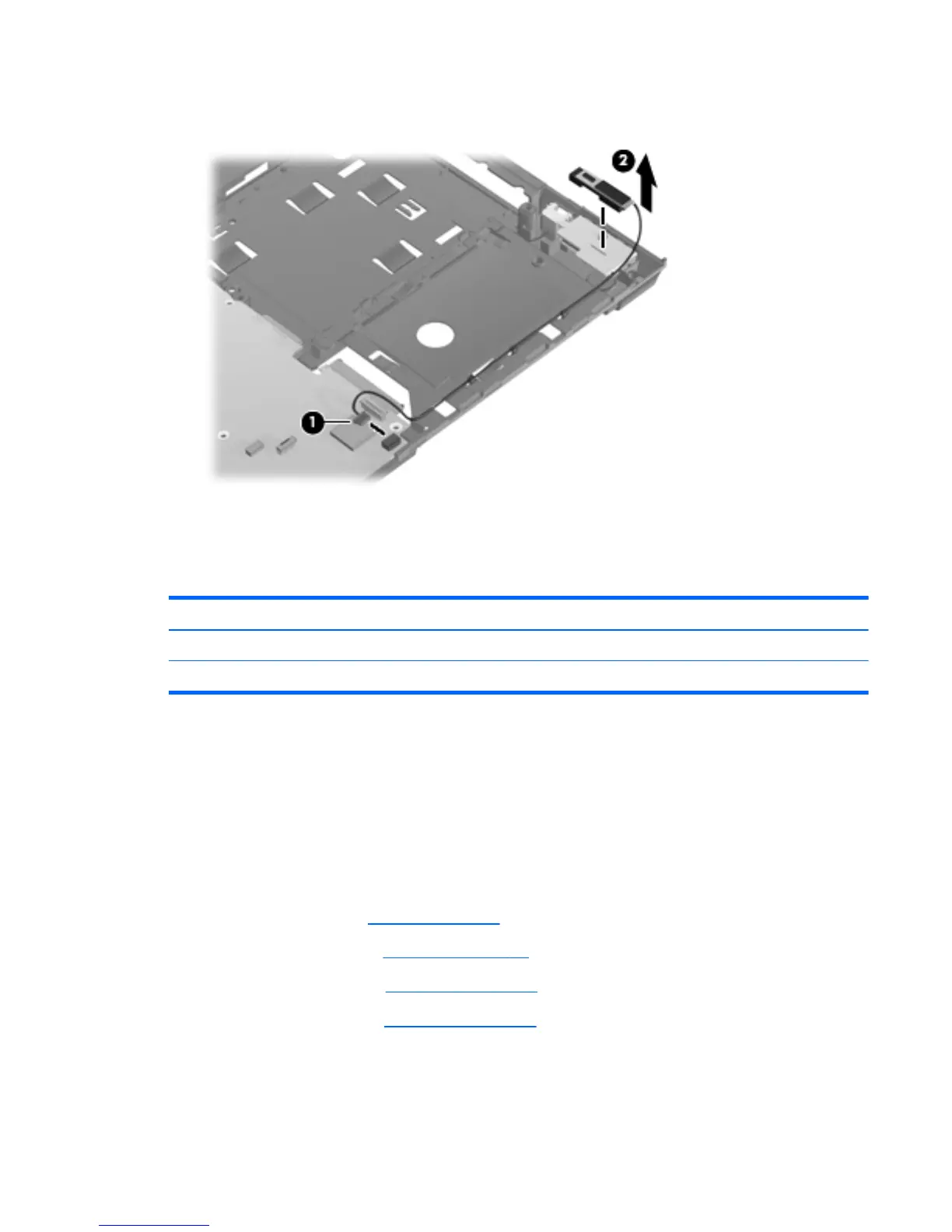

Disconnect the Bluetooth cable (1) from the system board and remove the antenna (2) from the
base enclosure. The antenna is held to the base enclosure with adhesive.
Reverse this procedure to install the Bluetooth module.
USB connector assembly
Description Spare Part Number
USB board with cable 605796-001
USB board for use on system boards with UMA graphics subsystem 622615-001
Before removing the USB connector assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 51).
5. Remove the palm rest (see
Palm rest on page 70).
6.
Remove the keyboard (see
Keyboard on page 73).
7. Remove the top cover (see
Top cover on page 77).
Component replacement procedures
85
