Model 3314A

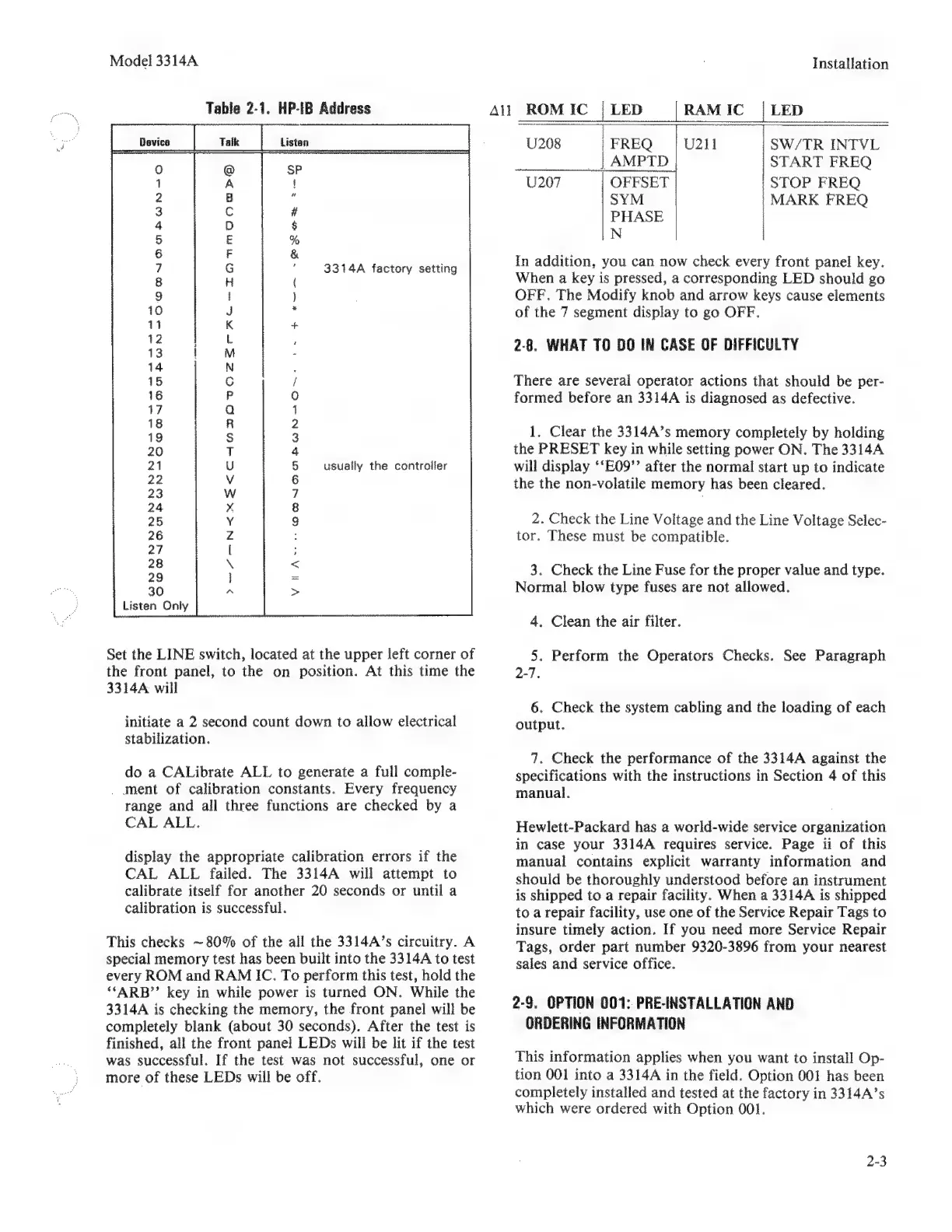

Table 2-1. HP-IB Address
Listan
33144A factory setting
ооо Pb G) o — OO
usually the controller
-- о со ~ gop G) N — O — +
e
n
B
C
D
E
F
G
H
i
J
K
L
M
N
G
P
а
R
5
T
ü
V
w
X
Y
Z
[
N
}
Listen Only
Set the LINE switch, located at the upper left corner of
the front panel, to the on position. At this time the
3314A will
initiate a 2 second count down to allow electrical
stabilization.
do a CALibrate ALL to generate a full comple-
. ment of calibration constants. Every frequency
range and all three functions are checked by a
CAL ALL.
display the appropriate calibration errors if the
CAL ALL failed. The 3314A will attempt to
calibrate itself for another 20 seconds or until a
calibration is successful.
This checks ~ 80% of the all the 3314A's circuitry. A
special memory test has been built into the 3314A to test
every ROM and RAM IC. To perform this test, hold the
“ARB” key in while power is turned ON. While the
3314A is checking the memory, the front panel will be
completely blank (about 30 seconds). After the test is
finished, all the front panel LEDs will be lit if the test
was successful. If the test was not successful, one or
more of these LEDs will be off.
Installation
ROM IC | LED RAM iC |LED
U208 FREQ 0211 SW/TR INTVL
_ | AMPTD START FREQ
U207 OFFSET STOP FREQ
SYM MARK FREQ
PHASE |
N |
In addition, you can now check every front panel key.
When a key is pressed, a corresponding LED should go
OFF. The Modify knob and arrow keys cause elements
of the 7 segment display to go OFF.
2-8. WHAT TO DO IN CASE OF DIFFICULTY
There are several operator actions that should be per-
formed before an 3314A is diagnosed as defective.
1. Clear the 3314A’s memory completely by holding
the PRESET key in while setting power ON. The 3314A
will display **E09"' after the normal start up to indicate
the the non-volatile memory has been cleared.
2. Check the Line Voltage and the Line Voltage Selec-
tor. These must be compatible.
3. Check the Line Fuse for the proper value and type.
Normal blow type fuses are not allowed.
4. Clean the air filter.
5. Perform the Operators Checks. See Paragraph
2-7.
6. Check the system cabling and the loading of each
output.
7. Check the performance of the 3314A against the
specifications with the instructions in Section 4 of this
manual.
Hewlett-Packard has a world-wide service organization
in case your 3314A requires service. Page ii of this
manual contains explicit warranty information and
should be thoroughly understood before an instrument
is shipped to a repair facility. When a 3314A is shipped
to a repair facility, use one of the Service Repair Tags to
insure timely action. If you need more Service Repair
Tags, order part number 9320-3896 from your nearest
sales and service office.
2-9. OPTION 001: PRE-INSTALLATION AND
ORDERING INFORMATION
This information applies when you want to install Op-
tion 001 into a 3314A in the field. Option 001 has been
completely installed and tested at the factory in 3314A's
which were ordered with Option 001.
2-3
