HP 3314A Manual

General Information
Model 3314A

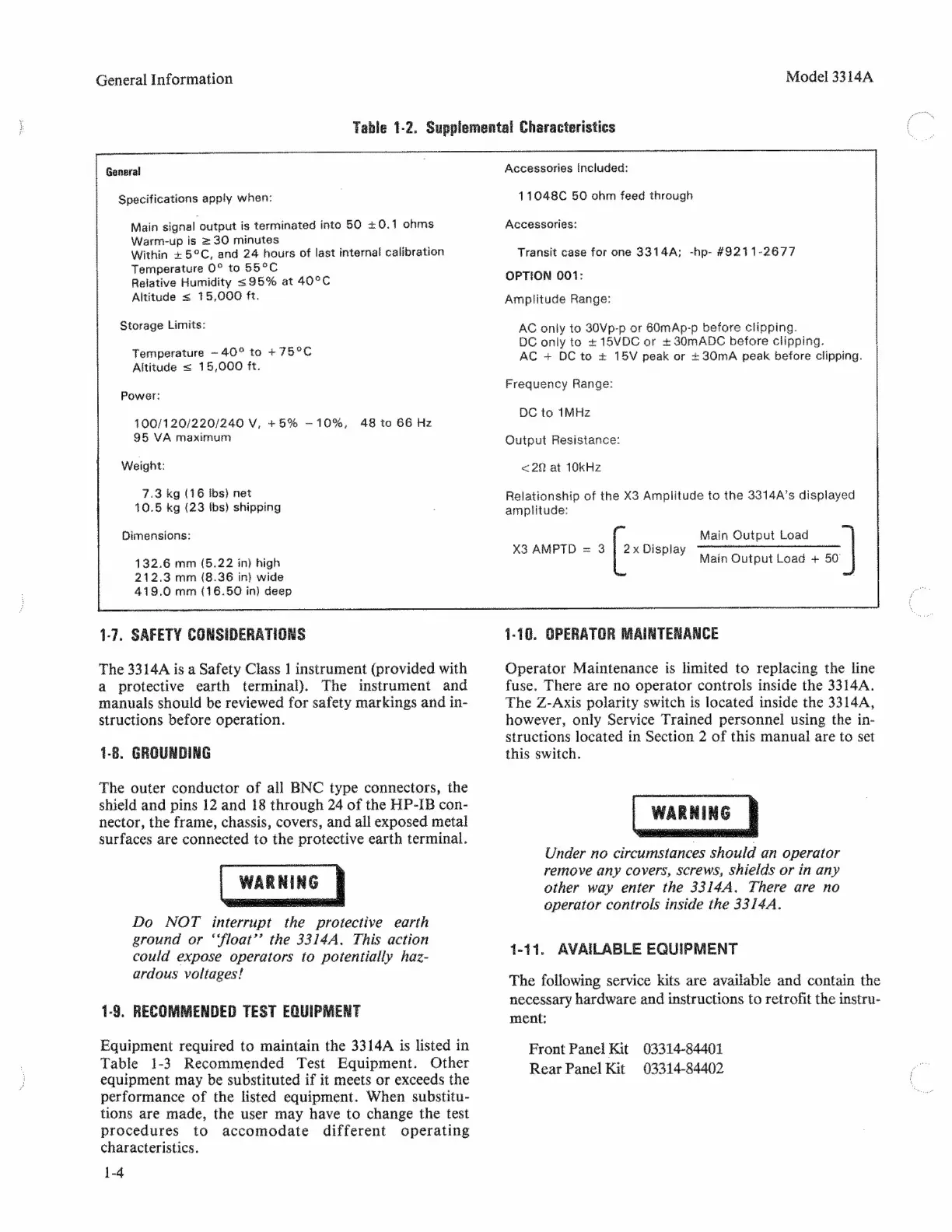

Table 1-2. Supplementa! Characteristics
General
Specifications apply when:
Main
signal
output
is
terminated
into
50
+
0.1
ohms
Warm-up
is
z
30
minutes
Within
+
59C,
and
24
hours
of
last
internal
calibration
Temperature
0°
to
55°
C
Relative Humidity < 9596 at 40°C
Altitude = 15,000 ft.
Storage Limits:
Temperature —40? to + 75?C
Altitude = 15,000 ft.
Power:
100/120/220/240 V, +5% ~ 10%, 48 to 66 Hz
95 VA maximum
Weight:
7.3 kg (16 ibs} net
10.5 ка (23 ibs) shipping
Dimensions:
132.6 mm (5.22 in) high
212.3 mm (8.36 in) wide
419.0 mm (16.50 in) deep
1-7. SAFETY CONSIDERATIONS
The 3314A is a Safety Class 1 instrument (provided with
a protective earth terminal). The instrument and
manuals should be reviewed for safety markings and in-
structions before operation.
1-8. GROUNDING
The outer conductor of all BNC type connectors, the
shield and pins 12 and 18 through 24 of the HP-IB con-
nector, the frame, chassis, covers, and all exposed metal
surfaces are connected to the protective earth terminal.
Do NOT interrupt the protective earth
ground or “float” the 33144. This action
could expose operators to potentially haz-
ardous voltages!
1-9. RECOMMENDED TEST EQUIPMENT
Equipment required to maintain the 3314A is listed in
Table 1-3 Recommended Test Equipment. Other
equipment may be substituted if it meets or exceeds the
performance of the listed equipment. When substitu-
tions are made, the user may have to change the test
procedures to accomodate different operating
characteristics.
1-4
Accessories included:
11048C 50 ohm feed through
Accessories:
Transit case for one 3314A; -hp- 49211-2677
OPTION 001:
Amplitude Range:
AC only to 30Vp-p or 60mAp-p before clipping.
DC only to + 15VDC or + 30mADC before clipping.
AC + DC to + 15V peak or = 3OmA peak before clipping.
Frequency Range:
DC to 1MHz
Output Resistance:
« 20 at 10kHz
Relationship of the X3 Amplitude to the 3314A's displayed
amplitude:
Main Output Load
X3 AMPTD = 3 NP GENUS CDU шош
Main Output Load + 50
2 x Display
1.10. OPERATOR MAINTENANCE
Operator Maintenance is limited to replacing the line
fuse. There are no operator controls inside the 3314A.
The Z-Axis polarity switch is located inside the 3314A,
however, only Service Trained personnel using the in-
structions located in Section 2 of this manual are to set
this switch.
WARNING |
Under no circumstances should an operator
remove any covers, screws, shields or in any
other way enter the 33144. There are no
operator controls inside the 3314A.
1-11. AVAILABLE EQUIPMENT
The following service kits are available and contain the
necessary hardware and instructions to retrofit the instru-
ment:
Front Panel Kit 03314-84401
Rear Panel Kit 03314-84402
