7.

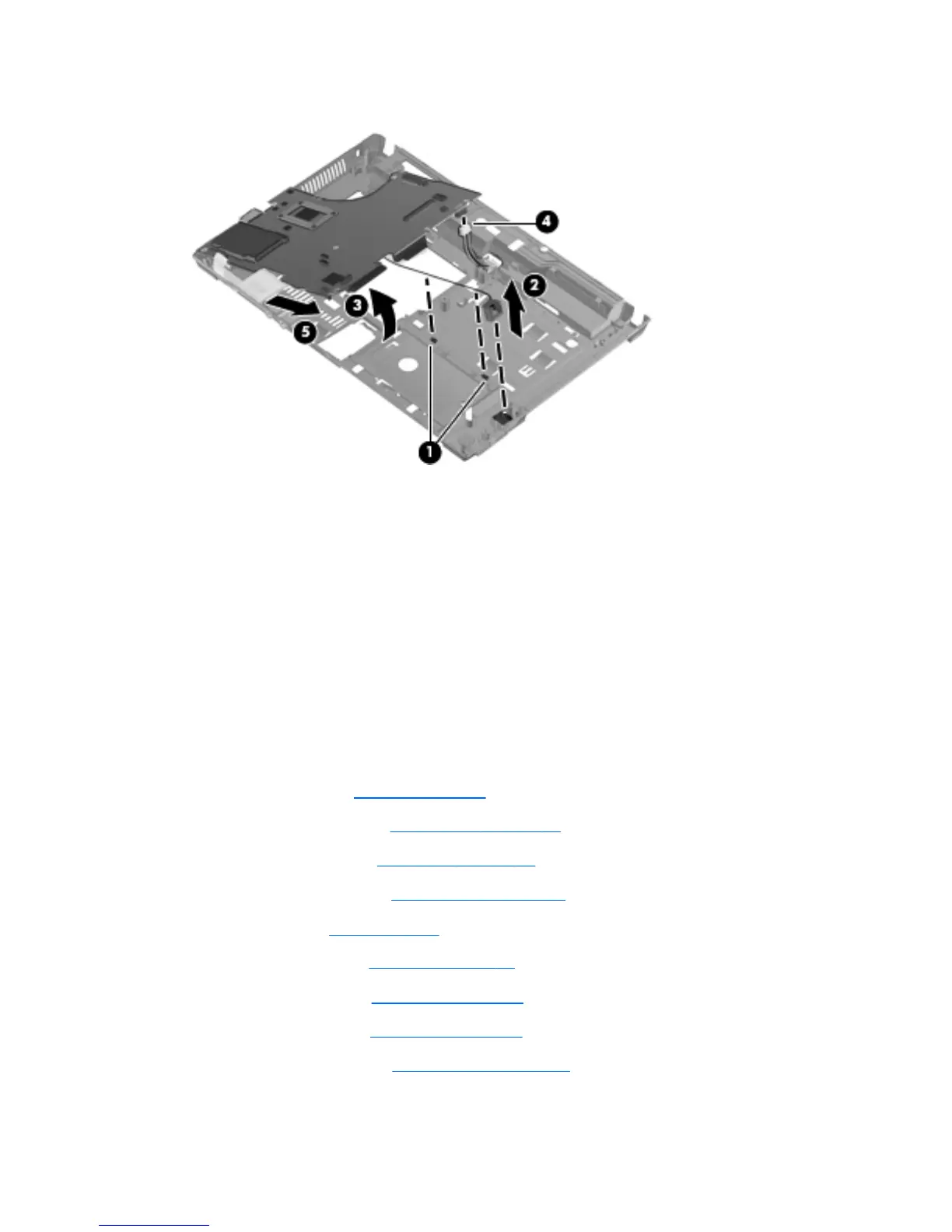

Slide the system board (5) out of the base enclosure.
Reverse this procedure to install the system board.
Main battery connector
The main battery cable is included in Cable Kit 605793-001.
Before removing the main battery cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 51).
5. Remove the service door (see
Service door on page 52).
6. Remove the hard drive (see
Hard drive on page 54).
7. Remove the optical drive (see
Optical drive on page 63).
8. Remove the fan (see
Fan on page 65).
9.
Remove the palm rest (see
Palm rest on page 70).
10. Remove the keyboard (see
Keyboard on page 73).
11. Remove the top cover (see
Top cover on page 77).
12. Remove the system board (see
System board on page 96).
100 Chapter 4 Removal and replacement procedures
