HP 625 User Manual

2.

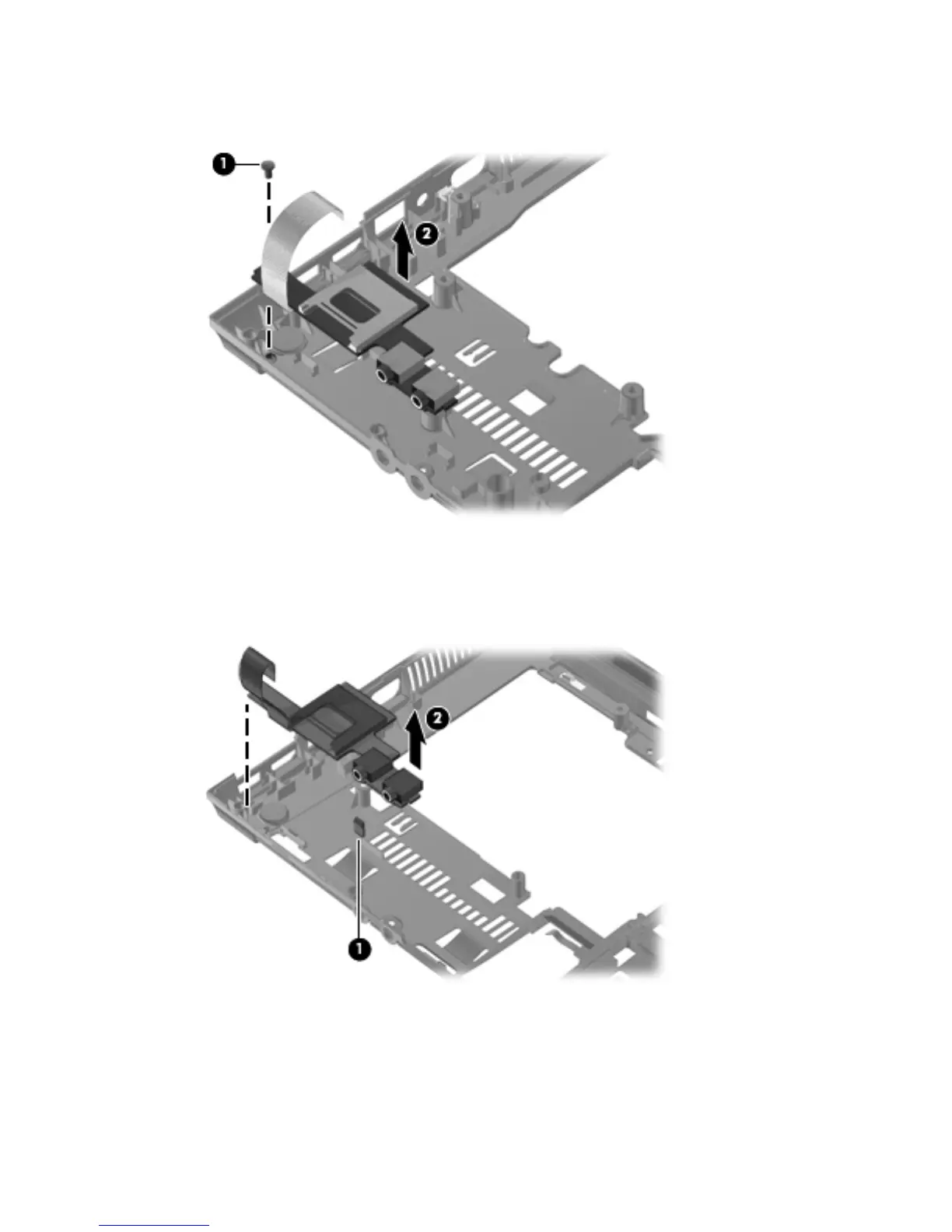

Remove the Phillips PM2.0×3.0 screw (1) that secures the audio board to the base enclosure and
then remove the audio board (2).
Remove the audio board from 35.6-cm (14.0-in) and 33.8-cm (13.3-in) computers:
1. Release the latch (1) that secures the board to the base enclosure.
2. Lift the audio board (2) from the base enclosure.
Reverse this procedure to install the audio board.
Component replacement procedures
107

HP 625 Specifications

General

Processor	AMD Athlon II
RAM	Up to 8 GB DDR3
Storage	250GB HDD
Display	15.6-inch, 1366 x 768 pixels
Graphics	ATI Mobility Radeon HD 4200
Operating System	Windows 7 Professional
Battery	6-cell Li-ion
