Optical drive
Description Spare part number
DVD±RW Double-Layer with SuperMulti Drive (includes optical drive bezel and optical
drive bracket)
686268-001
Before removing the optical drive, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 35).
5. Remove the memory module/wireless module compartment cover (see
Memory module
on page 36).

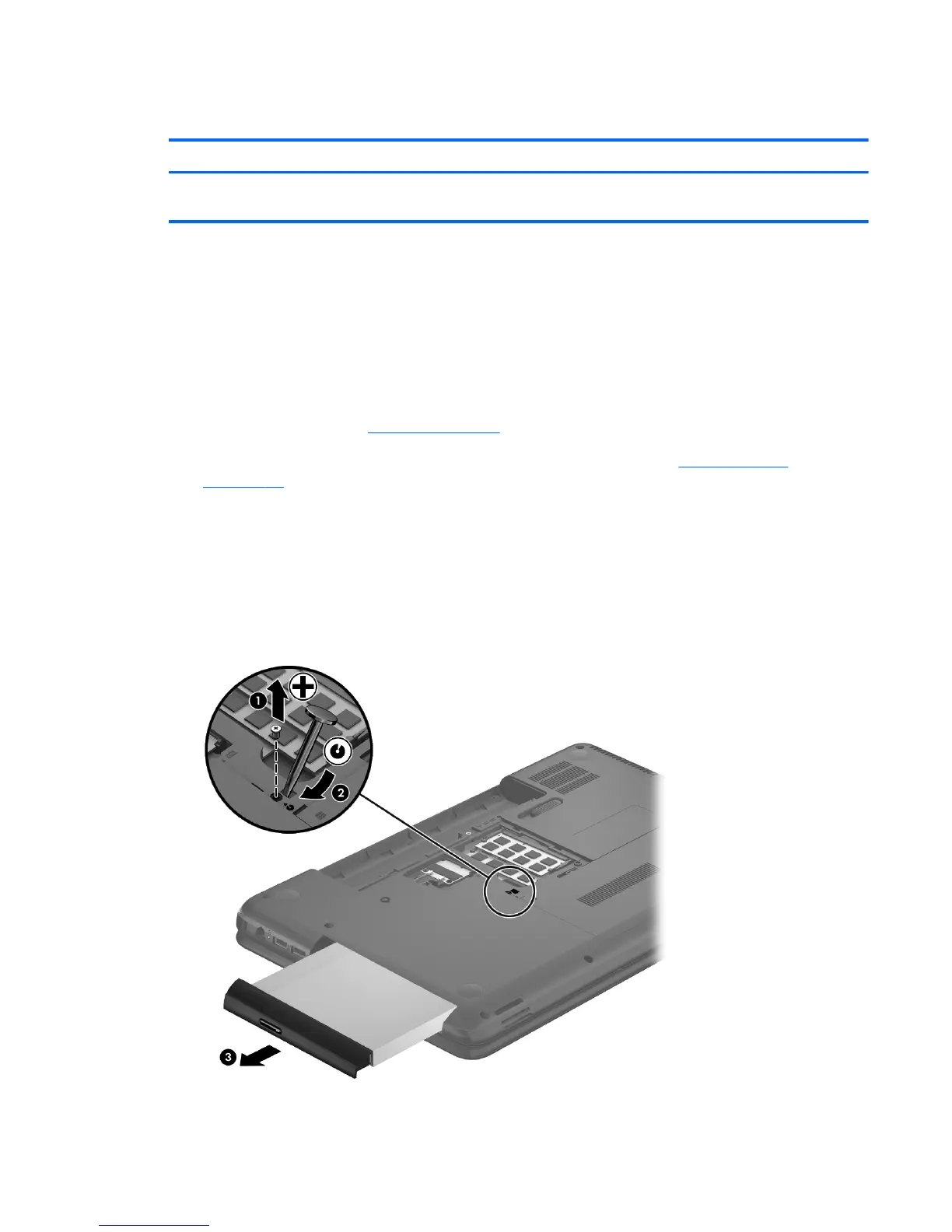

Remove the optical drive:
1.
Remove the Phillips PM2.5×4.0 screw (1) that secures the optical drive to the computer.
2.
Use a flat-blade screw driver or similar tool to press on the optical drive bracket tab (2) to release
the optical drive.
3. Remove the optical drive (3) from the computer.
Component replacement procedures
43
