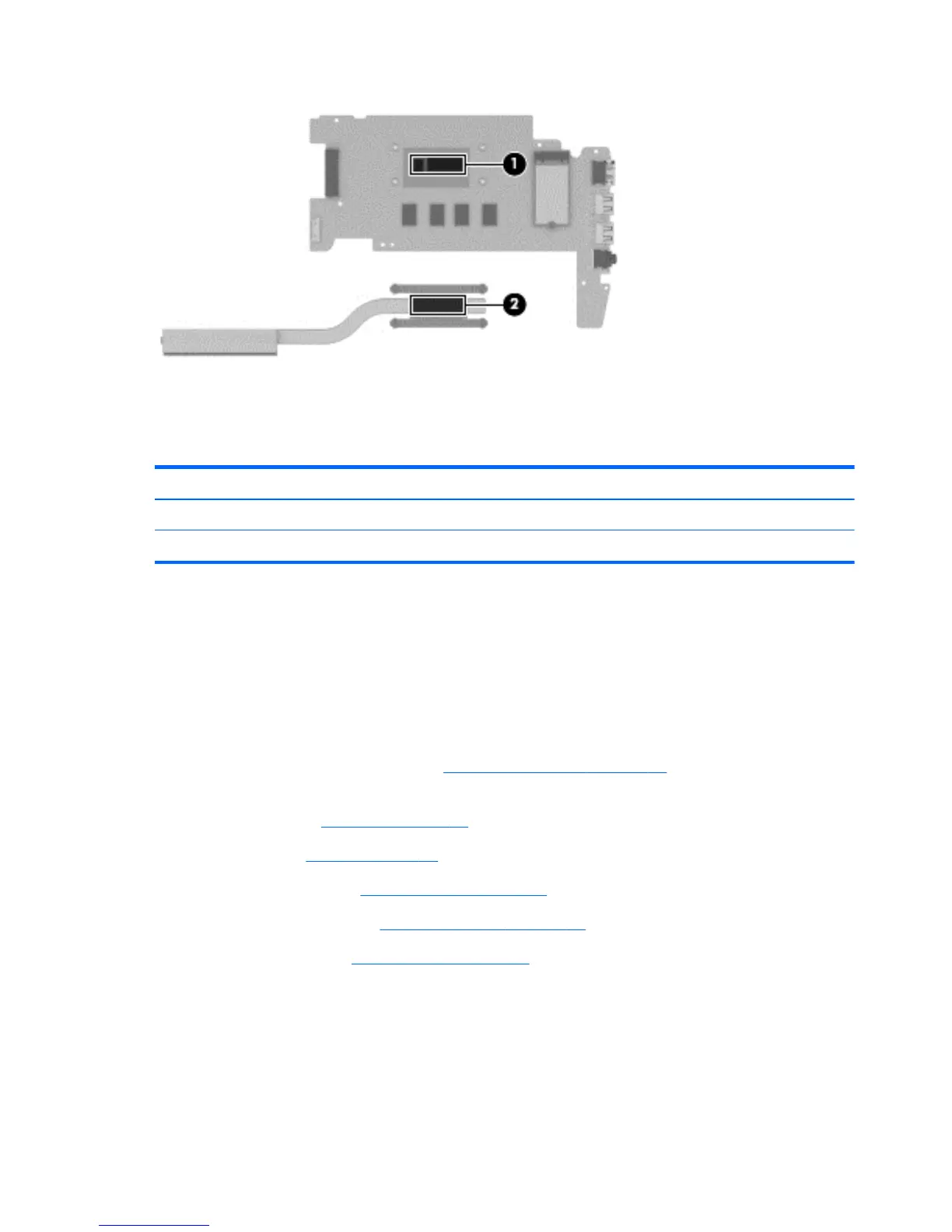

Reverse this procedure to install the heat sink.
Solid-state drive
Description Spare part number
32 GB 740159-001
16 GB 740158-001
Before removing the solid-state drive, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the keyboard/top cover (see
Keyboard/top cover on page 23), and then remove the
following components:
a. Speakers (see
Speakers on page 26)
b. Battery (see
Battery on page 28)
c. WLAN module (see
WLAN module on page 32)
d. Hall sensor board (see
Hall sensor board on page 39)
e. System board (see
System board on page 52)
Remove the solid-state drive:
1. Turn the system board upside down, with the rear toward you.
2. Remove the Phillips PM2.0×2.5 (1) that secures the solid-state drive to the system board. (The
solid-state drive tilts up.)
56 Chapter 4 Removal and replacement procedures preliminary requirements
