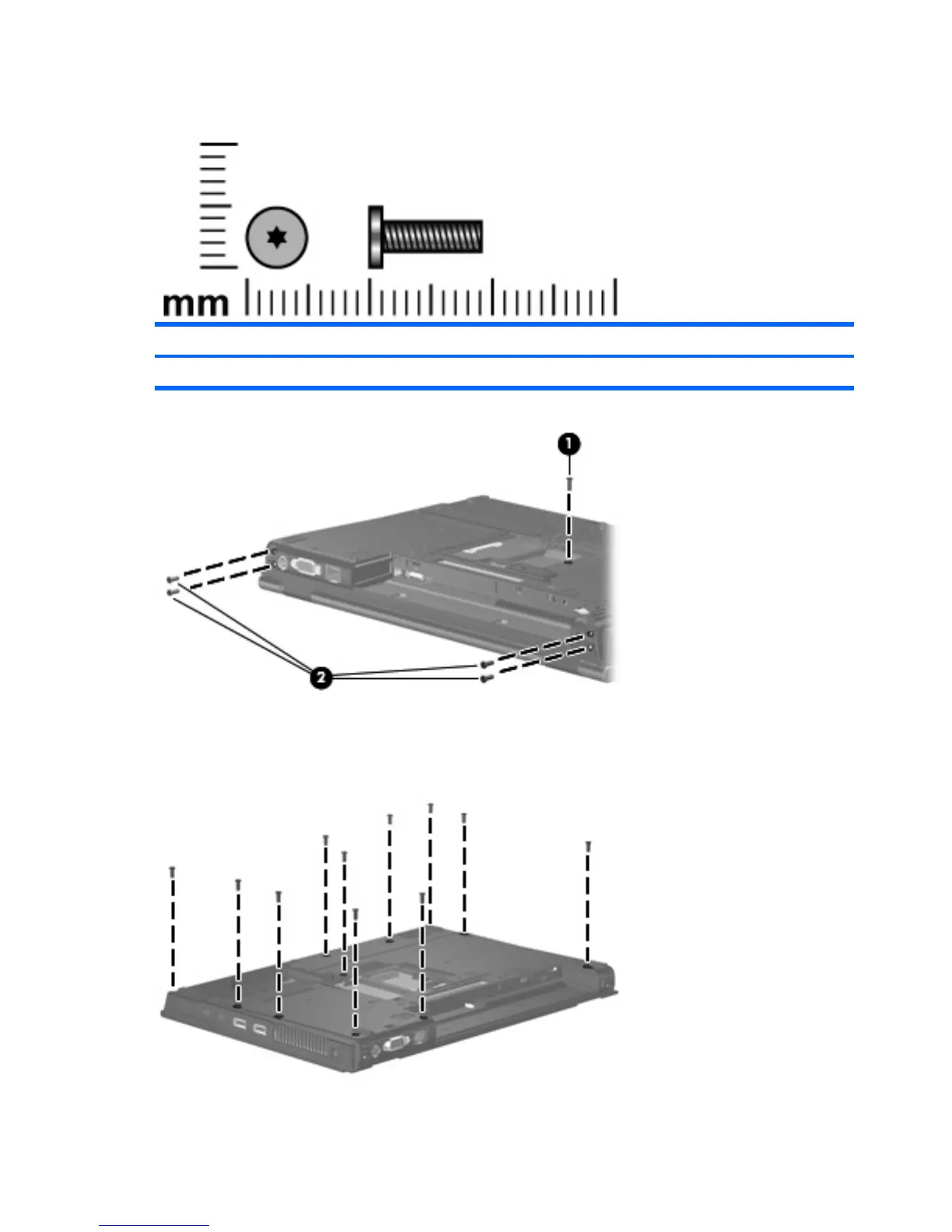

Torx T8M2.5×9.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
18
9.0 mm
2.5 mm
5.0 mm
Where used:
(1)
One screw that s
ecures the optical dr
ive to the comp
uter
(2)
Four screws that secure
the di
splay assembly
to the computer
Where used:
11 screws that secure the top cover to the
computer
118
Chapter 7 Screw listing
125
127
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
18
Top Components
18
Buttons, Switches, and Fingerprint Reader
18
Lights
20
Keys
21
Touchpad
22
Front Components
23
Left-Side Components
24
Rear Components
25
Right-Side Components
25
Bottom Components
26
3 Illustrated Parts Catalog
27
Serial Number Location
27
Computer Major Components
28
Plastics Kit
36
Cable Kit
37
Mass Storage Devices
38
Miscellaneous Parts
39
Sequential Part Number Listing
40
4 Removal and Replacement Procedures
47
Preliminary Replacement Requirements
47
Tools Required
47
Service Considerations
47
Plastic Parts
47
Cables and Connectors
48
Drive Handling
48
Grounding Guidelines
49
Electrostatic Discharge Damage
49
Packaging and Transporting Guidelines
50
Workstation Guidelines
50
Equipment Guidelines
51
Unknown User Password
52
Component Replacement Procedures
53
Serial Number
53
Battery
54
Sim
55
Display Inverter
56
Hard Drive
58
Bluetooth Module
60
Computer Feet
60
Expansion Memory Module
62
WLAN Module
64
Optical Drive
68
Keyboard
70
Internal Memory Module
73
RTC Battery
74
WWAN Module
75
Switch Cover
76
Fan
77
Heat Sink
79
Processor
81
Display Assembly
83
Top Cover
87
Speaker Assembly
91
Media Card Reader/Usb Connector Board
92
System Board
94
PC Card/Audio Board Assembly
97
Modem Module
98
SIM Slot Board
100
5 Computer Setup
102
Starting Computer Setup
102
Using Computer Setup
103
Navigating and Selecting in Computer Setup
103
Restoring Factory Settings in Computer Setup
103
Computer Setup Menus
104
File Menu
104
Security Menu
105
Diagnostics Menu
106
System Configuration Menu
106
6 Specifications
108
Computer Specifications
108
Inch, WXGA+ Display Specifications
109
Hard Drive Specifications
110
Primary 6-Cell, Li-Ion Battery Specifications
111
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive Specifications
112
DVD/CD-RW Combo Drive Specifications
113
DVD-ROM Drive
114
System DMA Specifications
115
System Interrupt Specifications
116
System I/O Address Specifications
117
System Memory Map Specifications
119
7 Screw Listing
120
Phillips PM2.0×5.0 Captive Screw
121
Phillips PM2.5×13.0 Captive Screw
122
Phillips PM3.0×3.0 Screw
123
Phillips PM2.5×3.0 Screw
124
Torx T8M2.5×9.0 Screw
126
Phillips PM2.0×3.0 Screw
128
Black Phillips PM2.5×8.0 Captive Screw
130
Torx T8M2.5×17.0 Screw
131
Torx T8M2.5×7.0 Screw
132
Torx T8M2.5×6.0 Screw
133
Hex HM5.0×9.0 Screw Lock
134
Phillips PM2.5×5.0 Screw
135
Silver Phillips PM2.5×8.0 Captive Screw
137
Phillips PM2.5×8.0 Screw
138
Phillips PM2.0×6.0 Screw
139
8 Backup and Recovery
140
Backup and Recovery in Windows Vista
140
Creating Recovery Discs
140
Backing up Your Information
140
Backing up Specific Files or Folders
141
Backup Suggestions
141
When to Back up
141
Backing up the Entire Hard Drive
142
Creating Recovery Points
142
Scheduling Backups
143
Performing a Recovery
143
Performing a Recovery from the Hard Drive
143
Performing a Recovery from the Recovery Discs
143
Initiating a Recovery from the Hard Drive Recovery Partition
144
Initiating a Recovery in Windows
144
Backup and Recovery in Windows XP
145
Creating Recovery Discs
145
Backing up Your Information
145
Backing up Specific Files or Folders
146
Backup Suggestions
146
When to Back up
146
Backing up the Entire Hard Drive
147
Creating Recovery Points
147
Scheduling Backups
148
Performing a Recovery
148
Performing a Recovery from the Hard Drive
148
Performing a Recovery from the Recovery Discs
148
Initiating a Recovery from the Hard Drive Recovery Partition
149
Initiating a Recovery in Windows
149
9 Connector Pin Assignments
150
Audio-Out (Headphone)
150
Audio-In (Microphone)
150
External Monitor
151
Modem)
152
Network)
152
S-Video-Out
153
Universal Serial Bus
153
10 Power Cord Set Requirements
154
Requirements for All Countries or Regions
154
Requirements for Specific Countries or Regions
155
11 Recycling
156
Battery
156
Display
156
Index
162
