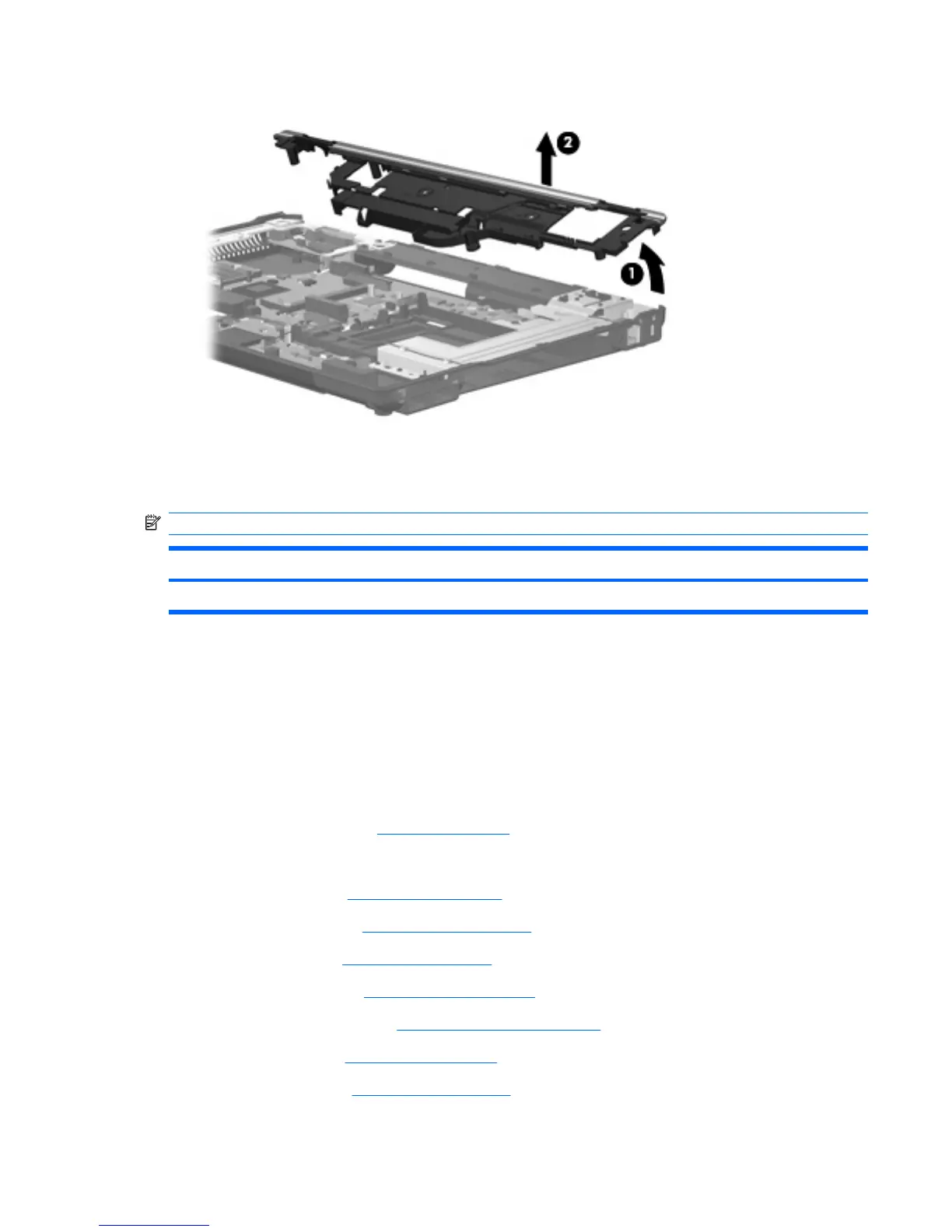

6. Remove the rear cover (2) by lifting it straight up.
Reverse this procedure to install the rear cover.
SIM connector board
NOTE: This section applies only to computer models equipped with a WWAN module.
Description Spare part number
SIM connector board 486252-001
Before removing the SIM connector board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
Battery on page 46).
5. Remove the following:
a. Hard drive (see
Hard drive on page 52)
b. Optical drive (see
Optical drive on page 55)
c. Keyboard (see
Keyboard on page 61)
d. Switch cover (see
Switch cover on page 65)
e. Display assembly (see
Display assembly on page 74)
f. Top cover (see
Top cover on page 81)
g. Rear cover (see
Rear cover on page 93)
Component replacement procedures 95

HP Compaq 6530b Specifications

General

HDD speed	7200 RPM
HDD interface	-
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	160 GB
Number of HDDs installed	1
Bus type	FSB
Stepping	R0
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo P8000 Series
Processor socket	Socket 479
Processor codename	Penryn
Processing Die size	107 mm²
Processor frequency	2.53 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Motherboard southbridge	Intel ICH9M
Processor front side bus	1066 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	25 W
Processor core voltage (AC)	1.00 - 1.250 V
CPU multiplier (bus/core ratio)	9.5
Number of Processing Die Transistors	410 M
Operating system installed	Windows Vista Business
Operating system architecture	32-bit
Display diagonal	14.1 \
Display resolution	- pixels
Motherboard chipset	Intel GE45 Express
Memory slots	2x SO-DIMM
Internal memory	2 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 2 GB
Type	PC
Power supply type	AC/DC
Wireless technology	Wi-Fi
Compatible operating systems	Windows Vista
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Audio system	HD
Pointing device	Touchpad + Scroll zone
Bluetooth version	2.0+EDR
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
TV-out type	S-Video
Charging port type	DC-in jack
USB 2.0 ports quantity	4
CardBus PCMCIA slots quantity	0
Cable lock slot type	Kensington
AC adapter power	55 W
Number of battery cells	6
Product color	Black
Country of origin	China
Discrete graphics card model	Intel® GMA 4500MHD
Processor code	SLGFE
Processor ARK ID	37006
Processor package size	35 x 35 mm

Weight and Dimensions

Depth	242.8 mm
Width	334.8 mm
Weight	2410 g
Height (front)	32.6 mm
