HP Designjet T1300 User Manual

AutoCAD 2007, 2008, 2009

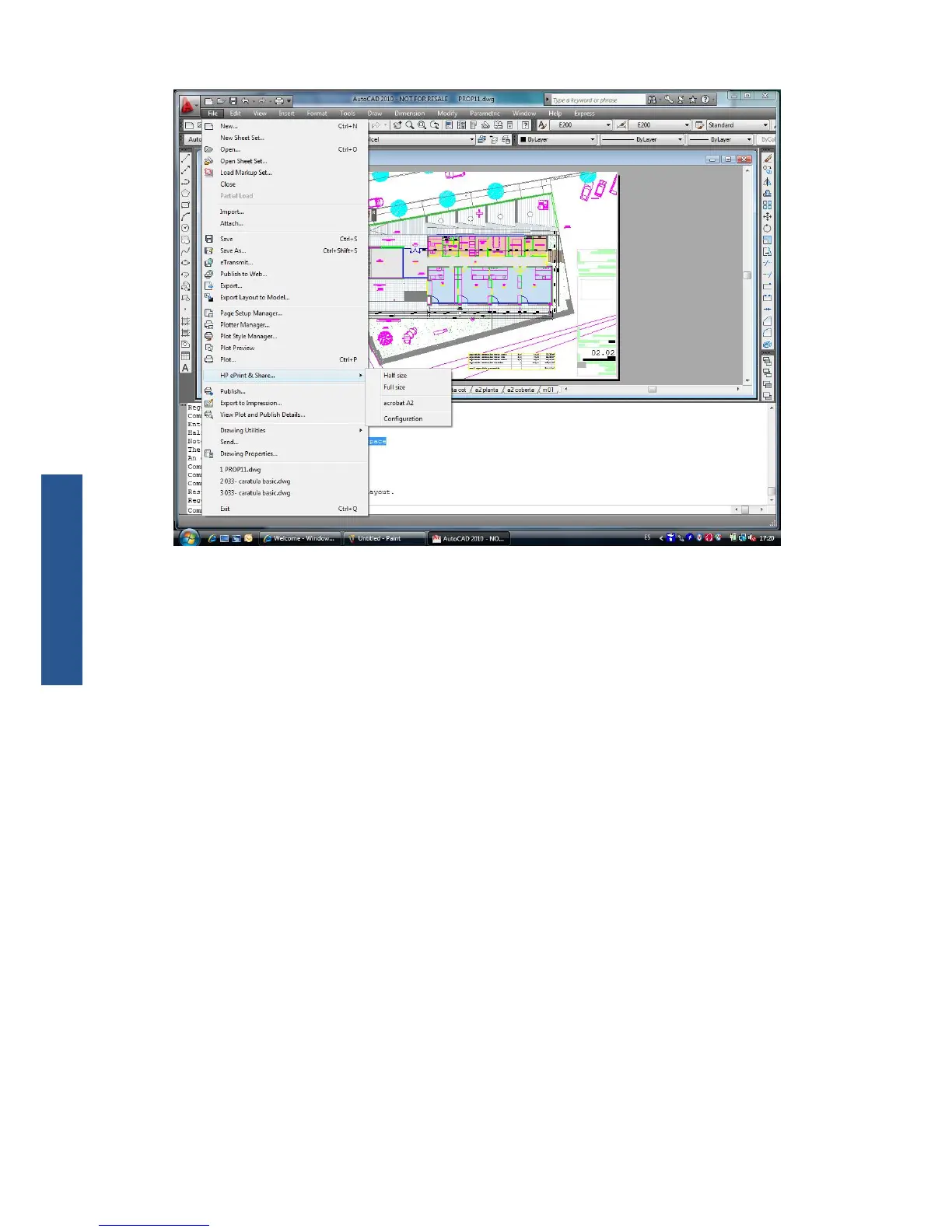

User interface for these versions of AutoCAD is similar to the one for AutoCAD 2010:
●
Commands HPIPPRESET, HPIPPS and HPIPCONFIG are available.
●
Context menu entry when right-clicking is available.
●
Menu entry in Menu Bar > File is available.
Plug-in requirements
The plug-in prints from Paper Space only. Model Space printing is not supported, as the Autodesk
recommendation is to use the Paper Space instead. The Model Space does not support batch file
printing.
After a drawing is printed from the plug-in, the HP ePrint & Share Printing tool opens.
If you are not currently logged into HP ePrint & Share, a message box tells you that you are not
currently logged in, and asks you to log in and retry. A dialog box is also displayed, in which you can
log in.
12 Chapter 3 Print from AutoCAD ENWW
Print from AutoCAD

HP Designjet T1300 Specifications

General

Color	Yes
Printing colors	Cyan, Grey, Magenta, Matte black, Photo black, Yellow
Print technology	Thermal inkjet
Resolution color	2400 x 1200 DPI
Number of print cartridges	6
Page description languages	HP-GL/2, PCL 3 GUI, PDF 1.7, PostScript 3, TIFF
Print speed (line, black, normal quality, A1)	80 pph
Maximum print size	1118 x 1676 mm
Media width (rolls)	279 to 1118 mm
Media width (sheets)	210 to 1118 mm
Maximum roll diameter	135 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black, White
Sound power level (standby)	29 dB
Sound pressure level (printing)	43 dB
Power supply	120 W
Power consumption (off)	0.1 W
Power consumption (standby)	27 W
Package depth	766 mm
Package width	1930 mm
Package height	770 mm
Package weight	109000 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	721 mm
Width	1770 mm
Height	1050 mm
