6–22 415606-001 Service Reference Guide, dx2200 MT
Removal and Replacement Procedures— Microtower (MT) Chassis
6.13 Processor
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel cover (Section 6.2, “Access Panel”).
3. Disconnect the heatsink control cable from the system board and remove the
heatsink.(Section 6.12, “Heatsink”)

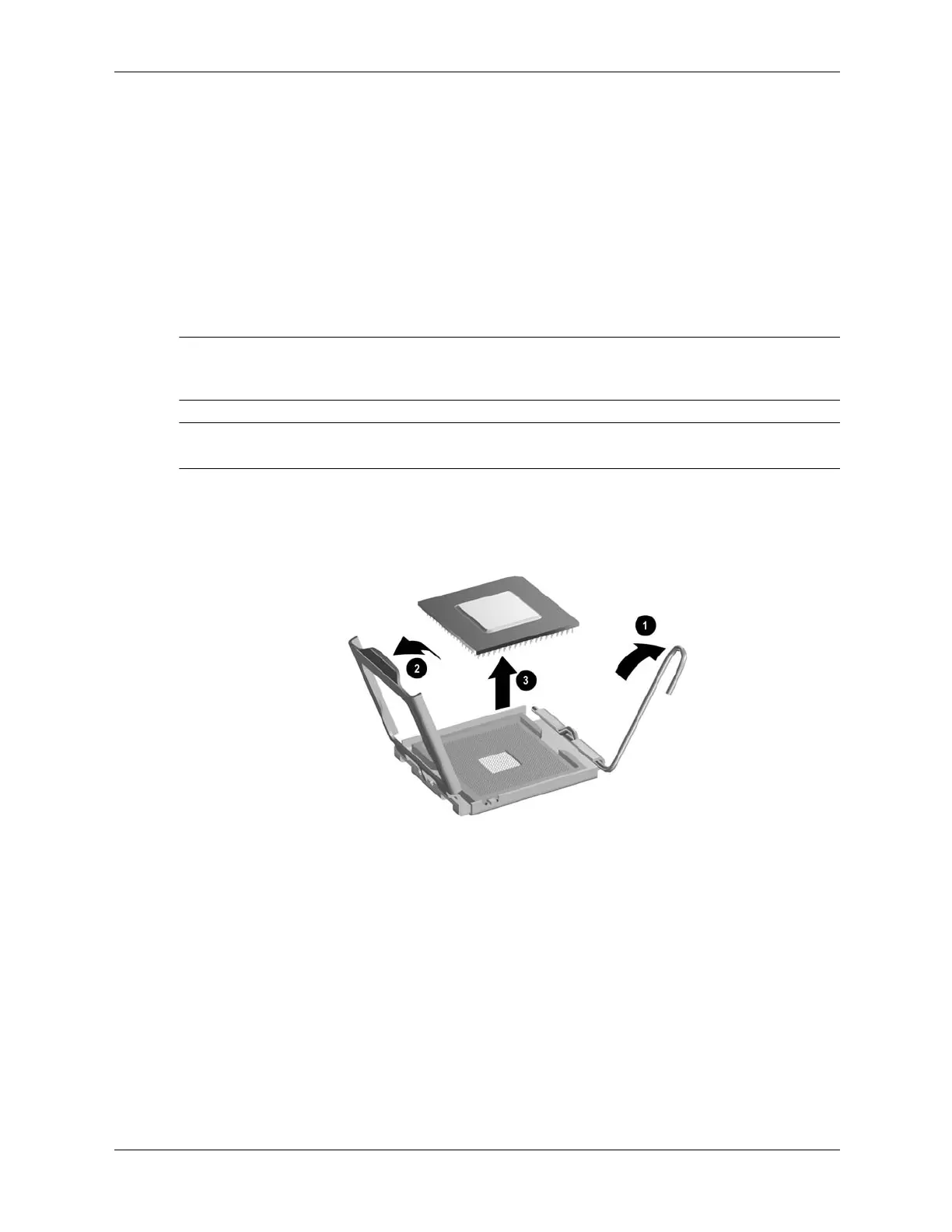

4. Rotate the processor locking lever to its full open position 1.
5. Raise and rotate the microprocessor retainer to its full open position 2.
6. Carefully lift the processor from the socket 3.
Ä
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling
them could cause irreparable damage. Once pins are damaged it may be necessary to replace the
system board.
Ä
CAUTION: The heatsink must be installed within 24 hours of installing the processor to prevent damage
to the processor’s solder connections.
To install a new processor:
1. Place the processor in its socket and close the retainer.
2. Secure the locking lever.
If reusing the existing heatsink, go to step 3.
If using a new heatsink, go to step 6.
3. If reusing the existing heatsink, clean the bottom of the heatsink with the alcohol pad
provided in the spares kit.
4. Apply the thermal grease provided in the spares kit to the top of the processor and install the
heatsink atop the processor.
