HP E27q G4 User Manual

19

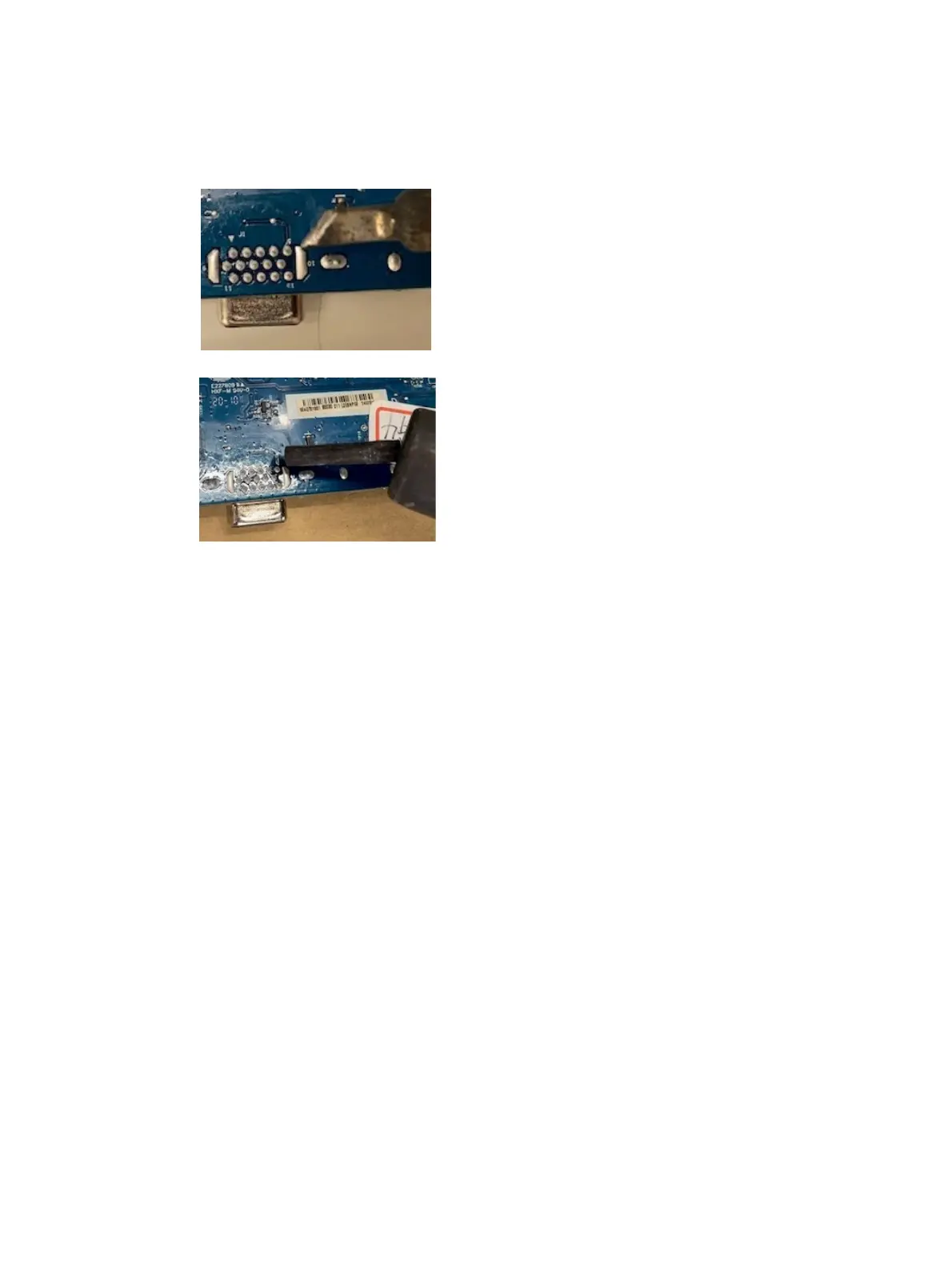

VGA connector J401
Repair the VGA connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the J1 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.

HP E27q G4 Specifications

General

Color depth	8 bit
Color gamut	99 %
Pixel pitch	0.233 x 0.233 mm
Screen shape	Flat
Pixel density	109 ppi
Display diagonal	27 \
Anti-glare screen	Yes
Display technology	-
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 90 kHz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Display brightness (typical)	250 cd/m²
Pivot angle	90 - 90 °
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Power consumption (max)	60 W
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Feet color	Silver
Certification	BIS; BSMI; CB; CCC; CE; CECP; CEL; EAC; ENERGY STAR®; FCC; ISO 9241-307; KC/KCC; NOM; PSB; SEPA; TCO Certied; TCO Certied Edge; TUV LBL; TUVS; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; ICE; TGM; TUV-GS
Product color	Black, Silver
Front bezel color	Black
Market positioning	Business
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	4
Number of USB Type-B upstream ports quantity	1
Package depth	444 mm
Package width	695 mm
Package height	225 mm
Package weight	10500 g

Weight and Dimensions

Depth (with stand)	216 mm
Width (with stand)	613.3 mm
Height (with stand)	536 mm
Weight (with stand)	7000 g
Depth (without stand)	47 mm
Height (without stand)	366.1 mm
