21
0.0.0.0/32 Direct 0 0 127.0.0.1 InLoop0
40.1.1.0/24 Direct 0 0 40.1.1.2 Vlan40
40.1.1.0/32 Direct 0 0 40.1.1.2 Vlan40
40.1.1.2/32 Direct 0 0 127.0.0.1 InLoop0
40.1.1.255/32 Direct 0 0 40.1.1.2 Vlan40
127.0.0.0/8 Direct 0 0 127.0.0.1 InLoop0
127.0.0.0/32 Direct 0 0 127.0.0.1 InLoop0
127.0.0.1/32 Direct 0 0 127.0.0.1 InLoop0
127.255.255.255/32 Direct 0 0 127.0.0.1 InLoop0
192.168.10.0/24 OSPF 150 1 40.1.1.1 Vlan40
224.0.0.0/4 Direct 0 0 0.0.0.0 NULL0
224.0.0.0/24 Direct 0 0 0.0.0.0 NULL0
255.255.255.255/32 Direct 0 0 127.0.0.1 InLoop0
The routing information for the two VPNs has been redistributed into the routing tables on PE 1.
Configuring the MCE that uses EBGP to advertise VPN
routes to the PE
Network requirements
As shown in Figure 5, configure the MCE to advertise the routes of VPNs 1 and 2 to PE 1, so that the
sites of each VPN can communicate with each other over the MPLS backbone.
Run OSPF in both VPN 1 and VPN 2. Run EBGP between the MCE and PE 1.

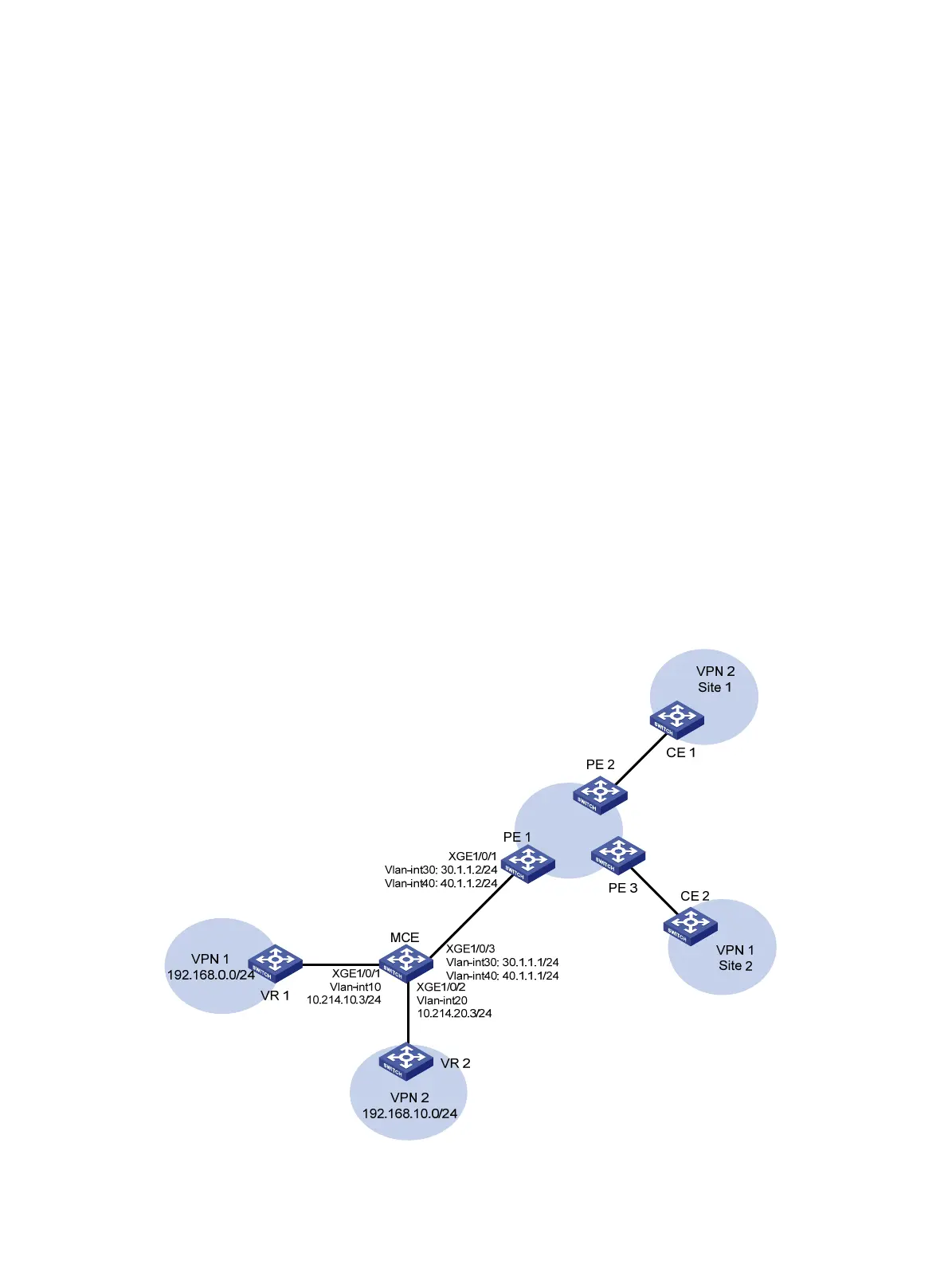

Figure 5 Network diagram
