HP L1506 User Manual

15" LCD Color Monitor HP L1506
7

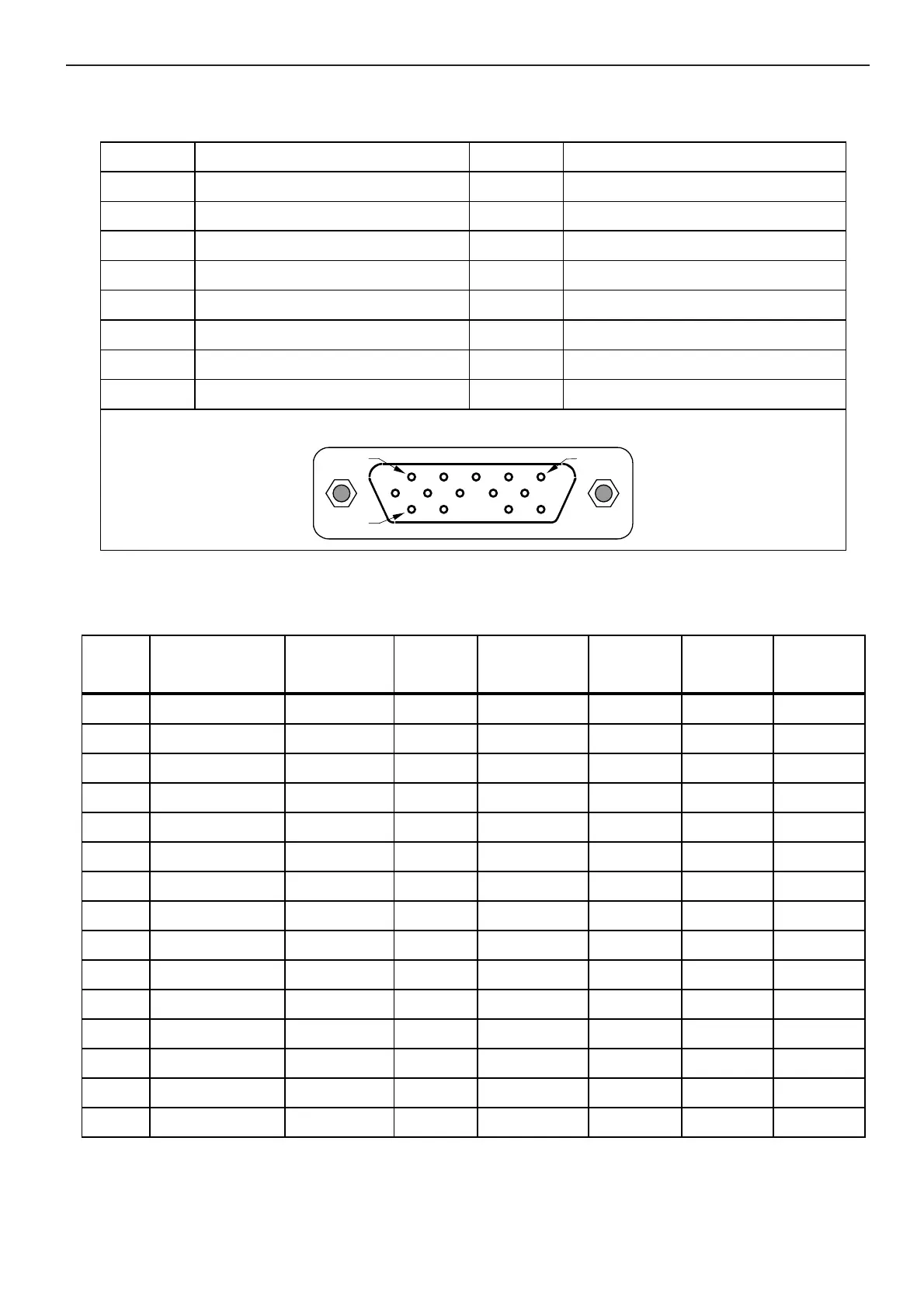

4. Input/Output Specification
4.1 Input Signal Connector
Pin Signal Pin Signal
1 Red Video 9 +5 V (from PC)
2 Green Video 10 Ground
3 Blue Video 11 Ground
4 Ground 12 DDC-serial Data
5 Detect Cable 13 Horizontal Sync
6 Red GND 14 Vertical Sync
7 Green GND 15 DDC-serial Clock
8 Blue GND
VGA connector layout
PIN 1
PIN 5
PIN 11
4.2 Factory Preset Display Modes
Preset
Pixel
Format
Horz Freq
(KHz)
Horz
Polarity
Vert Freq
(Hz)
Vert
Polarity
Pixel Clk
(MHz) Source
1 640 x 480 31.469 - 59.940 - 25.175 VGA
2 640 x 480 37.861 - 72.809 - 31.500 VESA
3 640 x 480 37.500 - 75.000 - 31.500 VESA
4 720 x 400 31.469 - 70.087 + 28.322 VGA
5 800 x 600 37.879
+
60.317 + 40.000 VESA
6 800 x 600 48.077 + 72.188 + 50.000 VESA
7 800 x 600 46.875 + 75.000 + 49.500 VESA
8 832 x 624 49.726 ± 74.551 ± 57.284 MAC
9 1024 x 768 48.363 - 60.004 - 65.000 VESA
10 1024 x 768 56.476 - 70.069 - 75.000 VESA
11 1024 x 768 60.023 + 75.029 + 78.750 VESA
12 1152 x 870 68.68 - 75.06 - 100.000 Mac
13 1152 x 900 71.71 - 76.05 - 105.561 Sun
14 1280 x 1024 63.98 + 60.02 + 108.000 VESA
15 1280 x 1024 79.97 + 75.02 + 135.000 VESA

HP L1506 Specifications

General

3D	No
Pixel pitch	0.297 x 0.297 mm
Aspect ratio	4:3
Response time	8 ms
Display diagonal	15 \
Display resolution	1024 x 768 pixels
Vertical scan range	56 - 76 Hz
Horizontal scan range	30 - 61 kHz
Viewing angle, vertical	100 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	450:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	130 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 400, 832 x 624, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
On/off switch	Yes
DVI-D ports quantity	0
Tilt angle range	-5 - 30 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	23 W
Power consumption (standby)	2 W
Power consumption (typical)	21 W
Certification	CISPR, VCCI, CSA, TUV, GS, CCC, MIC, FCC, UL, GOST, SASO
Product color	Silver
Country of origin	China
Market positioning	Business
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 90 %
Package weight	4500 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	203 mm
Height (with stand)	355 mm
Weight (with stand)	3200 g
Depth (without stand)	60 mm
Width (without stand)	340 mm
Height (without stand)	290 mm
Weight (without stand)	- g
