ENWW

Selecting the Signal Connectors and Cables

The monitor features two DVI-I connectors capable of supporting either analog or digital input.

The video mode supported by the DVI-I connector is determined by the video cable used.

●

For digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal cable to a

DVI-I connector on the monitor and the other end to the DVI connector on the computer.

●

For analog operation, use the DVI-I to VGA signal cable provided. Connect the DVI-I to VGA

signal cable to a DVI-I connector on the monitor and the other end to the VGA connector on the

computer.

The monitor will automatically determine which inputs have valid video signals. The inputs can be

selected through the On-Screen Display (OSD) feature by pressing the Input Select button on the

front panel.

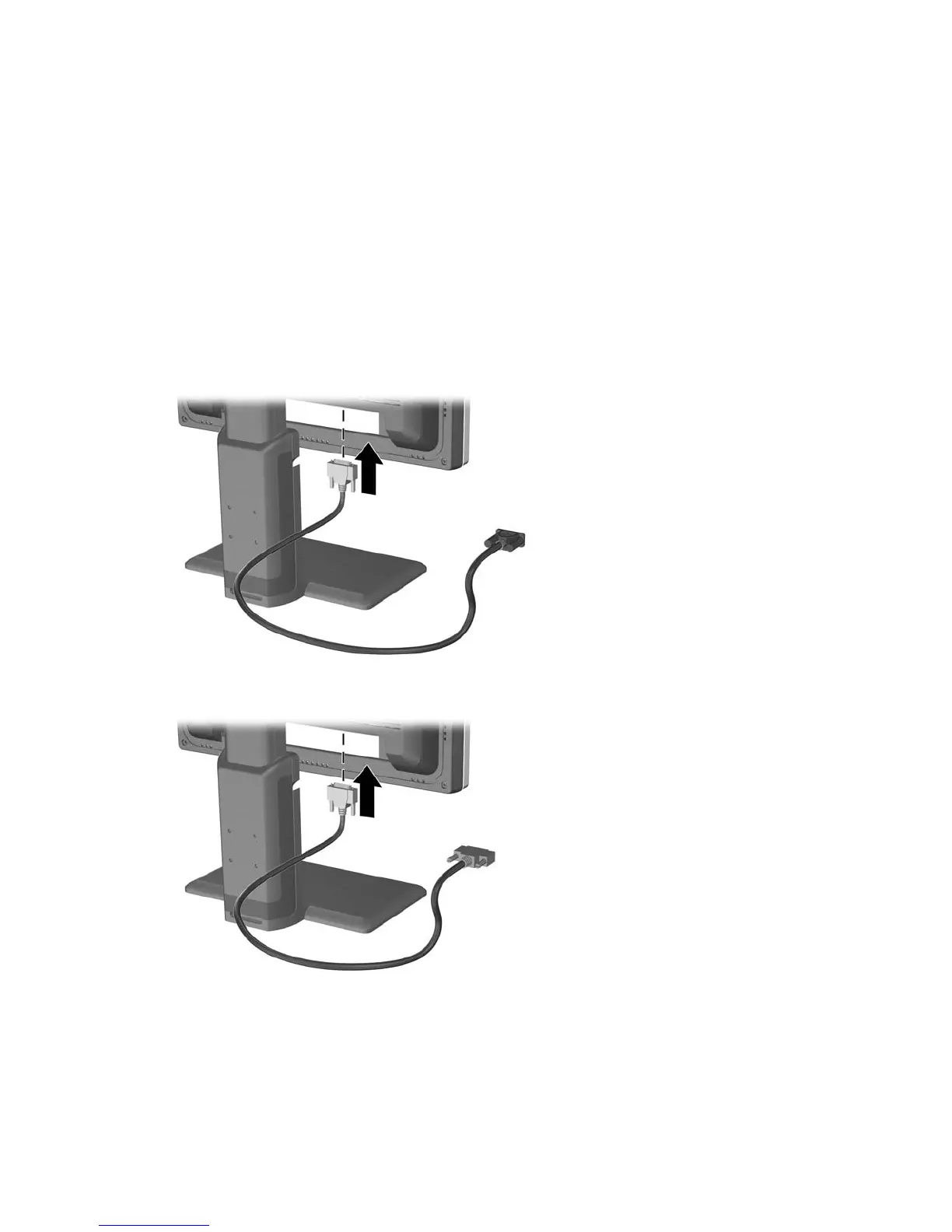

Figure 3-3 Connecting the DVI-I to VGA Signal Cable

Figure 3-4 Connecting the DVI-D Signal Cable

Selecting the Signal Connectors and Cables 7

Questions and Answers:

Need help?

Do you have a question about the HP LP2465 and is the answer not in the manual?

HP LP2465 Specifications

General

Pixel pitch	0.27 x 0.27 mm
Aspect ratio	16:10
Response time	6 ms
Display diagonal	24 \
Separate H/V sync	Yes
Display resolution	1920 x 1200 pixels
Vertical scan range	48 - 85 Hz
Viewable size, vertical	326 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	520 mm
Display brightness (typical)	500 cd/m²
USB hub version	2.0
DVI-I ports quantity	2
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	5
Product color	Black, Silver
Country of origin	China
Pivot angle	0 - 90 °
Tilt angle range	-5 - 25 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (standby)	2 W
Power consumption (typical)	75 W
Sustainability certificates	ENERGY STAR
