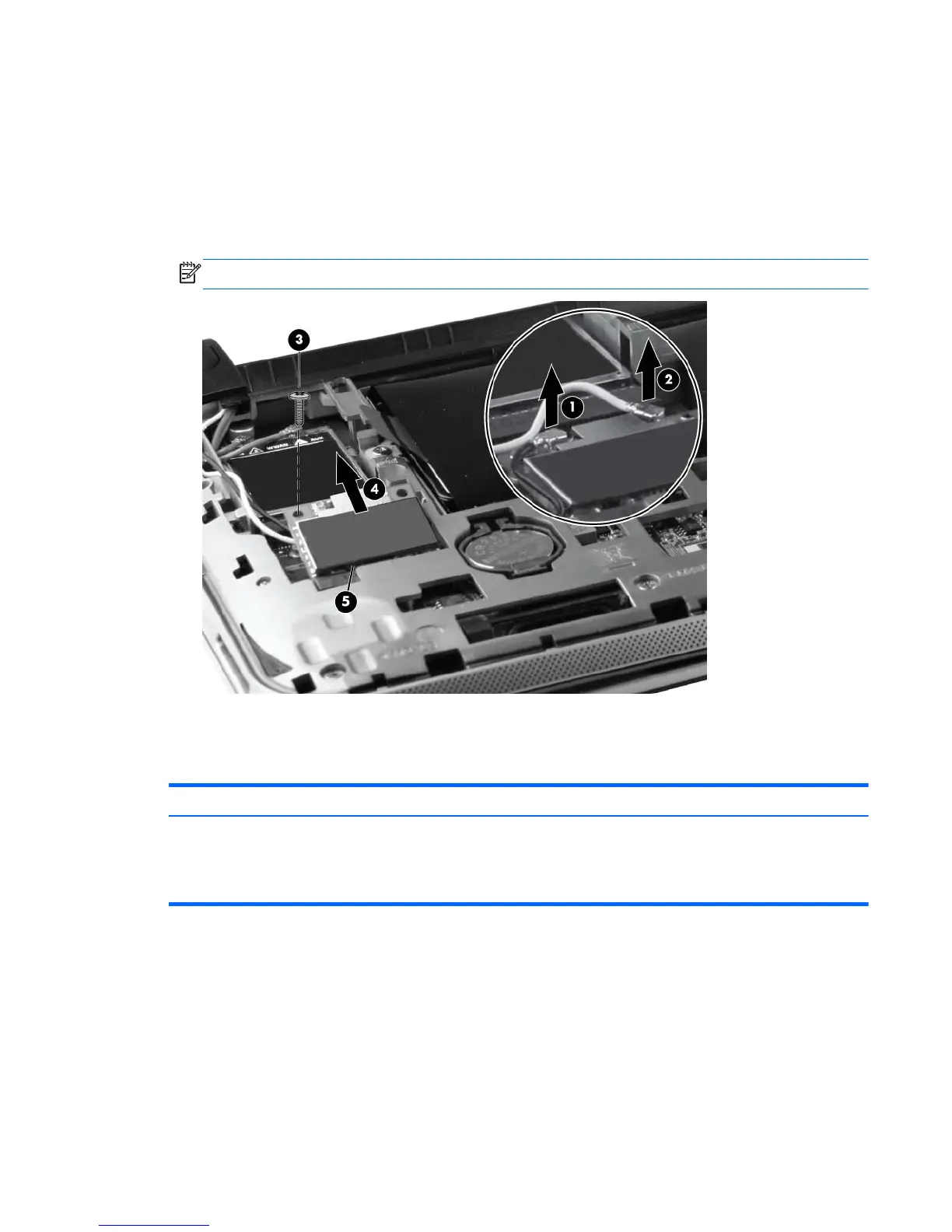

Remove the WLAN module:
1. Disconnect the black WLAN antenna cable (1) from the WLAN module “Main” terminal.
2. Disconnect the gray WLAN antenna cable (2) from the WLAN module “Aux” terminal.
3. Remove the Phillips PM2.0×3.0 screw (3) that secures the WLAN module to the system board.
(The WLAN module tilts up.)
4. Remove the WLAN module (4) by pulling the module away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (5) to prevent incorrect insertion.
Reverse this procedure to install a WLAN module.
WWAN module
Description Spare part number
HP lc2000 HSPA Mobile Broadband Module
For use in Argentina, Bolivia, Canada, Chile, Colombia, Ecuador, El Salvador, Guatemala,
Honduras, Mexico, New Zealand, Nicaragua, Panama, Paraguay, Peru, Thailand, the United
States, and Venezuela
612599-001
Component replacement procedures 41
