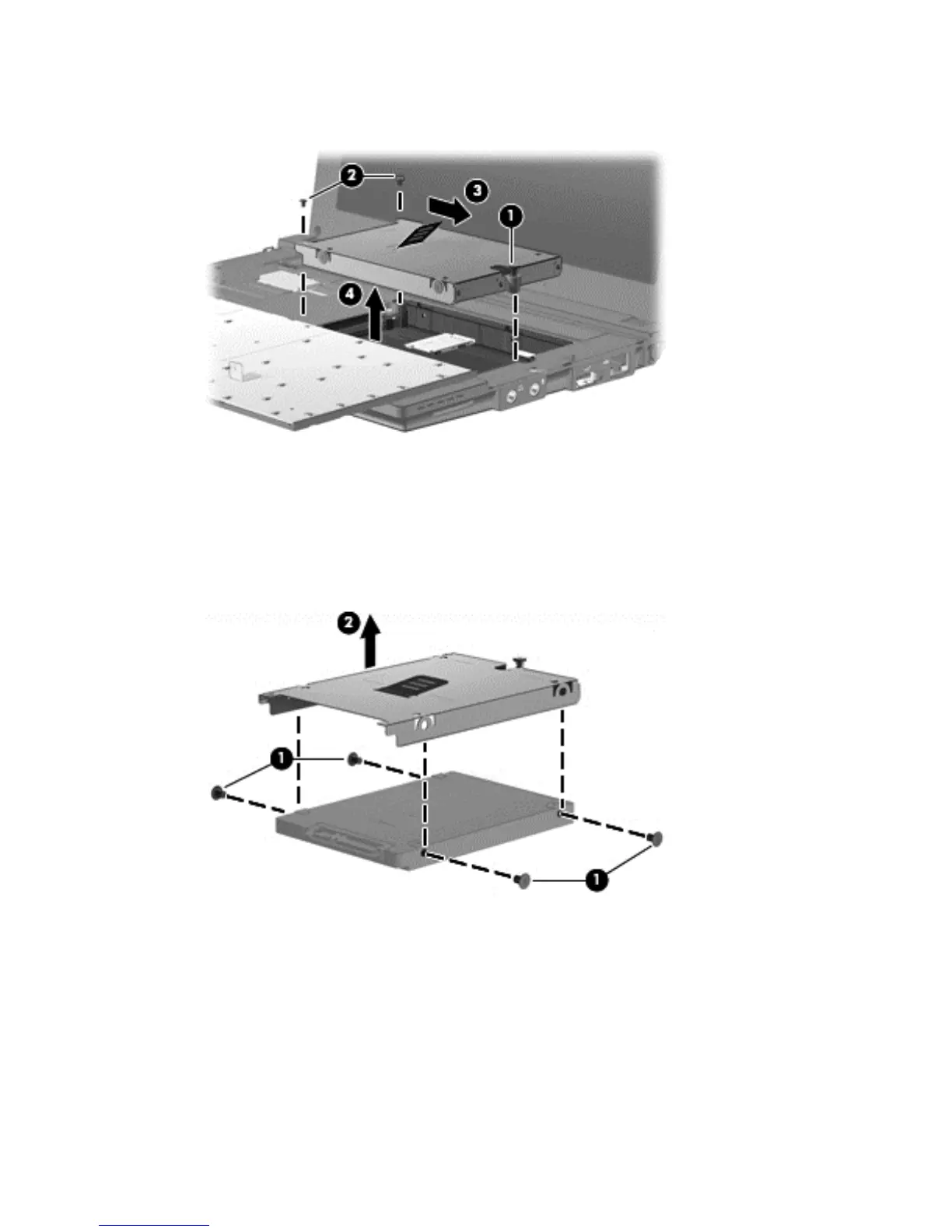

2. Use the Mylar tab to slide the assembly to the right (3) to disconnect it, and remove the
assembly (4).
3. Remove the mounting bracket.
On a hard drive:
a. Remove the 4 Phillips PM3.0×3.0 screws (1) that secure the hard drive bracket to the hard
drive.
b. Using the Mylar tab, lift the bracket (2) away from the hard drive.
– or –
On a solid state drive:
a. Remove the 4 Phillips PM2.0×3.0 screws (1) that secure the solid-state drive bracket to the
solid state drive.
b. Lift the solid-state drive module (2) to remove it.
Component replacement procedures 53
