HP OMEN 27k User Manual

12

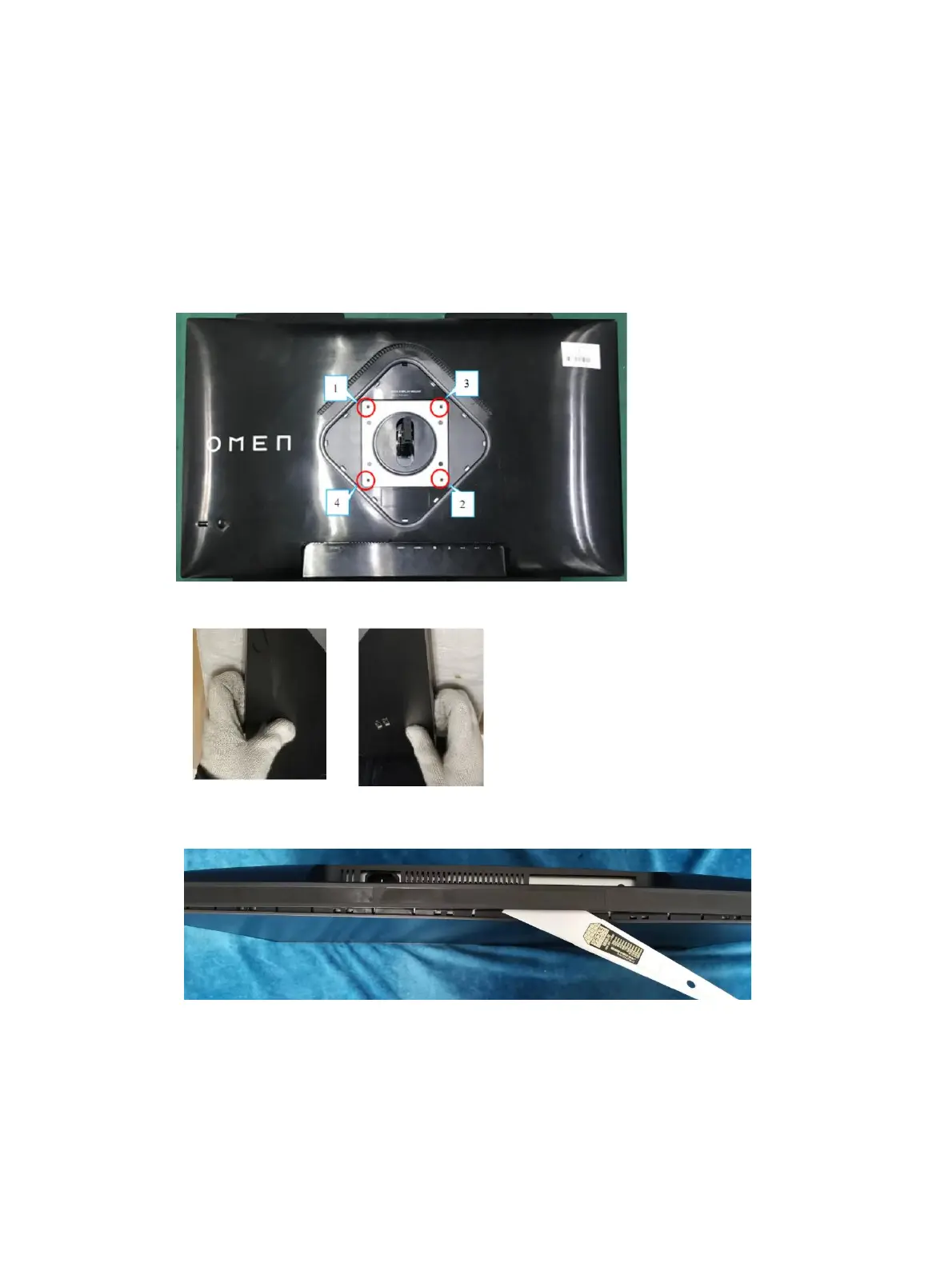

Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
Remove the Rear Cover:
1) Remove the Stand-Base Assy and remove four screw to remove the rear cover.
2) Use your fingers to split the left and right sides apart between the middle frame and rear case.
3) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate. The hook opens.
Repeat the steps.

HP OMEN 27k Specifications

General

Depth	52.2 mm
Width	613.6 mm
Height	364.3 mm
Weight	7540 g
Package depth	160 mm
Package width	699 mm
Package height	446 mm
Package weight	10990 g
Color depth	8 bit
Screen shape	Flat
Pixel density	163 ppi
Display diagonal	27 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	-
Native aspect ratio	16:9
Vertical scan range	55 - 144 Hz
Horizontal scan range	80 - 320 kHz
Contrast ratio (typical)	1000:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	68.6 cm
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA), 720 x 400, 1280 x 800, 800 x 600 (SVGA), 1440 x 900 (WXGA+), 1600 x 900, 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1280 x 720 (HD 720)
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50/60 Hz
Power consumption (max)	120 W
Power consumption (standby)	0.5 W
Power consumption (typical)	50 W
RMS rated power	3 W
Number of speakers	2
Product color	Black
Country of origin	China
Market positioning	Gaming
HDMI version	2.0/2.1
DisplayPort version	1.4
HP segment	Home
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	20 - 80 %
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth (with stand)	223.3 mm
Height (with stand)	523.7 mm
