HP P24 G5 User Manual

17

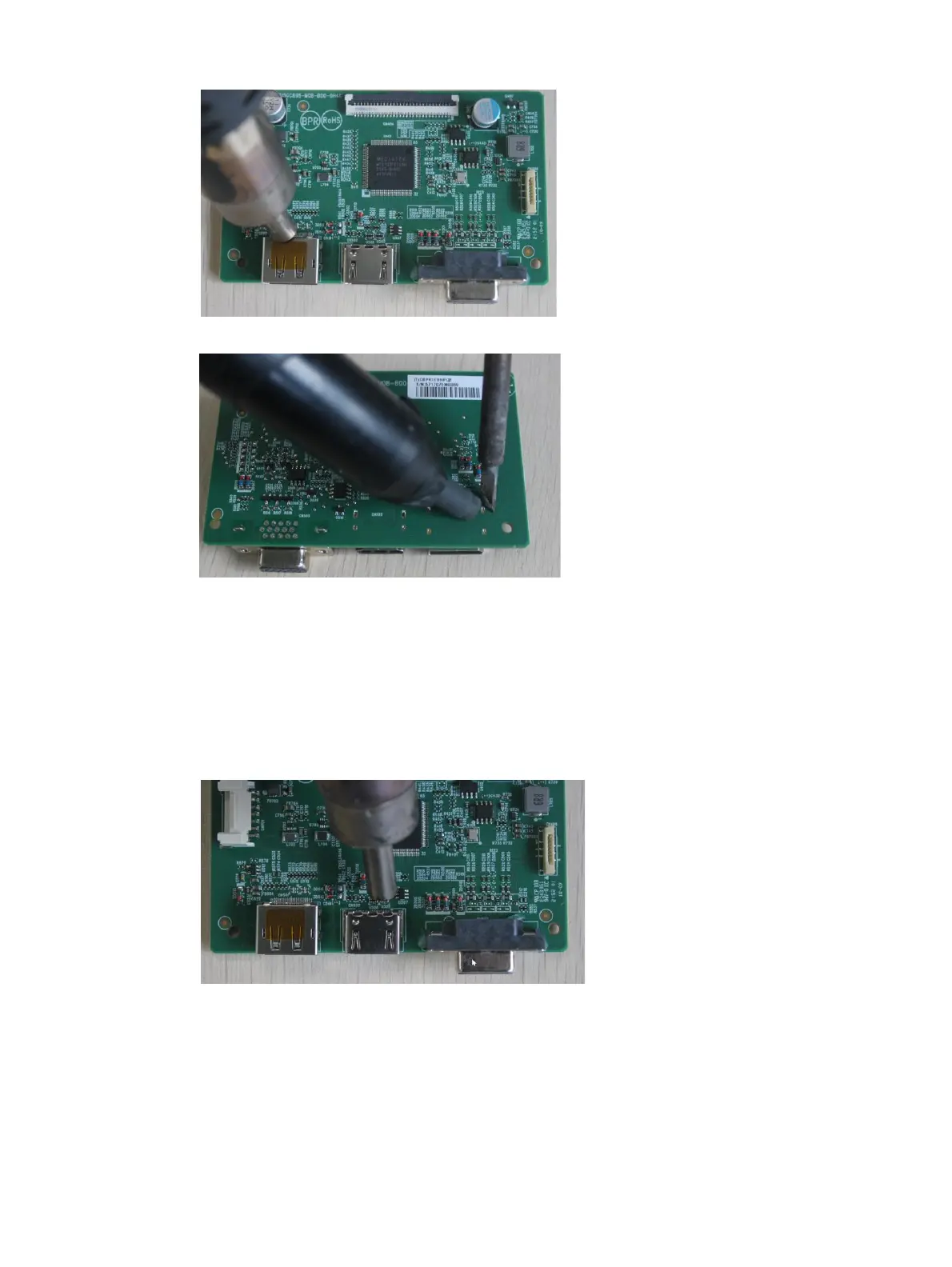

2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN501 connector from the PCB
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
HDMI connector CN502
Repair the HDMI connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.

HP P24 G5 Specifications

General

Color gamut	72 %
Pixel pitch	0.27 x 0.27 mm
Screen shape	Flat
Pixel density	93 ppi
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 86 kHz
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version	1.4
DisplayPort version	1.2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	30 W
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	124 mm
Package width	595 mm
Package height	391 mm
Package weight	5940 g
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Cables included	AC, HDMI
Product color	Black
Market positioning	Business
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	180.5 mm
Width (with stand)	538.9 mm
Height (with stand)	397.9 mm
Weight (with stand)	3780 g
Depth (without stand)	51.4 mm
Height (without stand)	323.6 mm
