P4819(E) 1-5

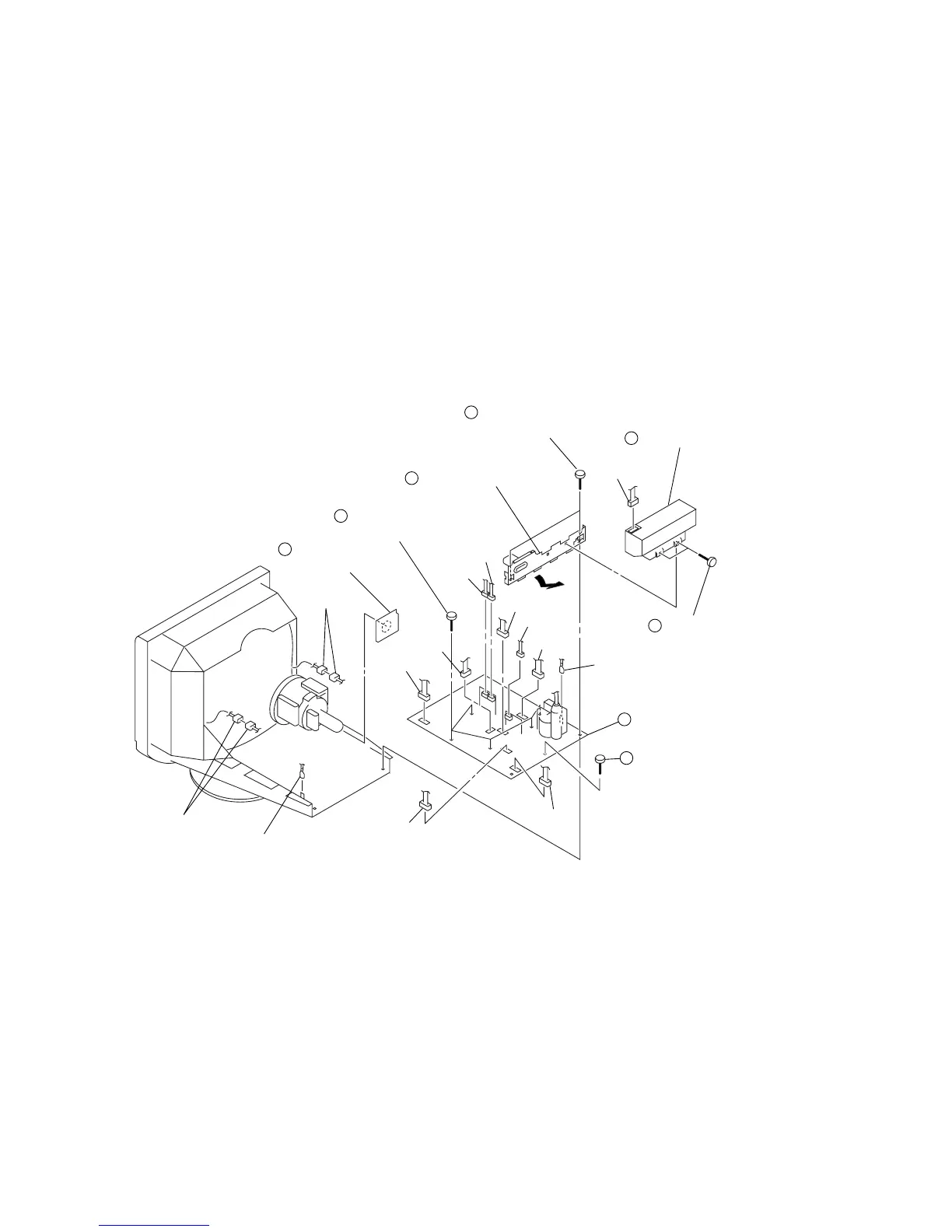

1-5. D BOARD REMOVAL
1
A1 board
(C block)
2
Two screws
(+BVTP 3 x 8)
4
Two screws
(+BVTP 3 x 10)
D board
3
Video block assembly
5
Rear plate assembly
6
Five screws
(+BVTP 3 x 10)
CN315
CN602
CN601
CN1103
CN1601
CN1600
CN1003
CN605
CN701
Connector (4P)
Connector (4P)
CN501
GND
GND
8
Screw (+BVTP 3X10)
7
