HP Pavilion A6300f Start Here

Setting Up Your Computer 7
A/V In
Audio 1
R
Primary right audio input from set-top box
connector (red).
NOTE: Audio can be recorded by using this Audio
In connector which is connected to the motherboard.
Some computers include this primary right audio
input connector on the front of the computer. (Select
models only.)
TV/Cable Ant
TV In (TV antenna or cable input from wall outlet
with no set-top box.)
FM Ant
FM In (radio antenna input) connects to the FM
antenna cable.
Plug the FM radio antenna cable into the FM In port
on the back of the computer on the TV tuner card.
You may want to extend the ends of the cable to
improve your FM radio signal reception.
Modem (Line In RJ-11) (select models only).
Plug the modem cable (provided in the computer
box) into the computer modem connector on the
back of the computer. Plug the other end to your
telephone line wall jack connector.
Analog Video
Analog Video Out: S-video or composite video
(select models only) connects to a TV.
VGA
Monitor/VGA (blue) display output connector
connects to a VGA monitor.
Digital audio input (white) connects to a digital
audio device with digital input (such as a home
audio receiver/amplifier) or digital speakers (select
models only).
Digital audio output (red) connects to a digital audio
device with digital output (select models only).
Digital Audio
Out
Digital Out (orange) connects to a digital audio
device with digital input (such as a home audio
receiver/amplifier) or digital speakers (select
models only).

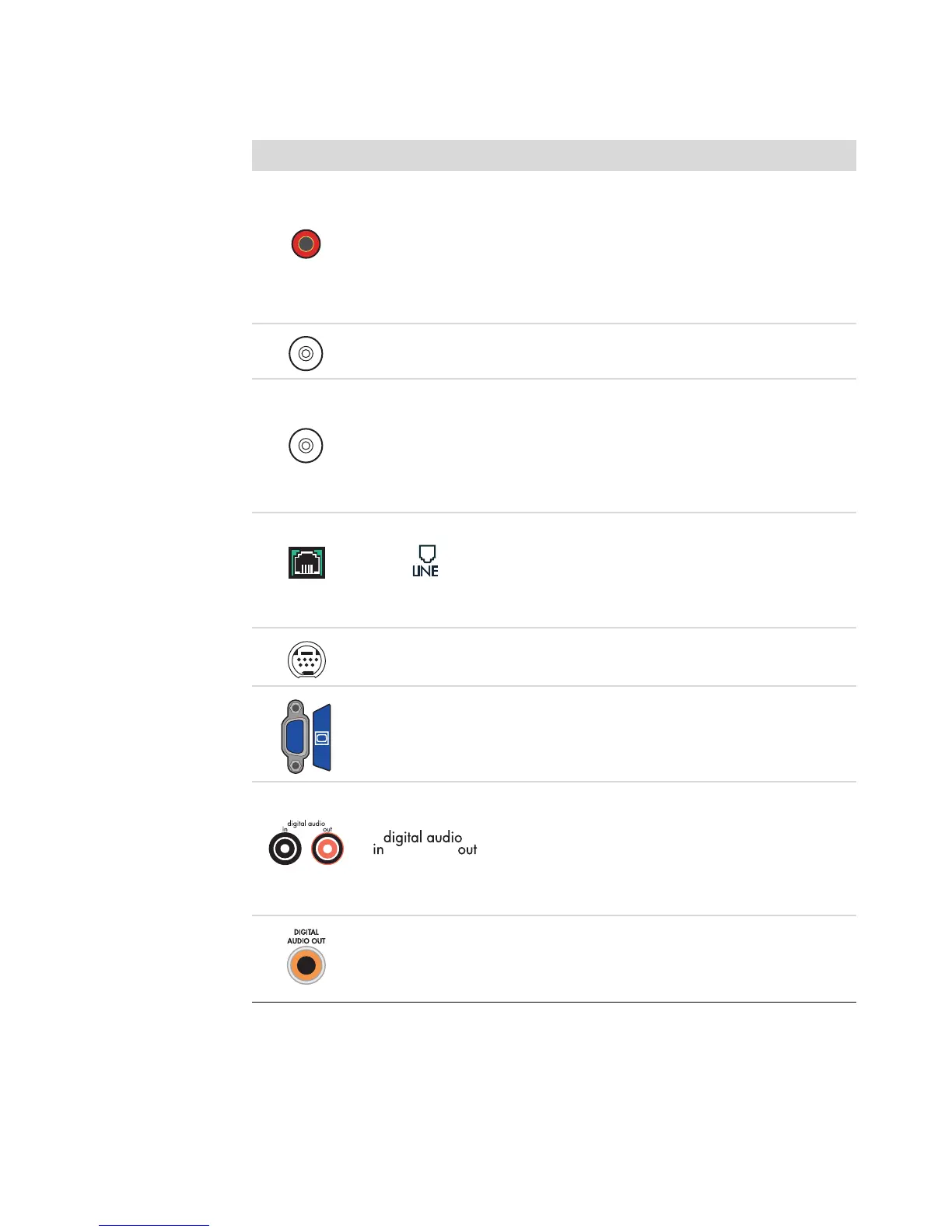

Connector Icon/label Description and function (continued)
