HP Pavilion dv6 User Manual

11 Recycling
Battery
When a battery has reached the end of its useful life, do not dispose of the battery in general household
waste. Follow the local laws and regulations in your area for computer battery disposal.
Display
WARNING! The backlight contains mercury. Caution must be exercised when removing and handling
the backlight to avoid damaging this component and causing exposure to the mercury.
CAUTION: The procedures in this chapter can result in damage to display components. The only
components intended for recycling purposes are the liquid crystal display (LCD) panel and the backlight.
When you remove these components, handle them carefully.
NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly
that might require special handling at end-of-life. Disposal of mercury may be regulated because of
environmental considerations. For disposal or recycling information, contact your local authorities, or
see the Electronic Industries Alliance (EIA) Web site at
http://www.eiae.org.

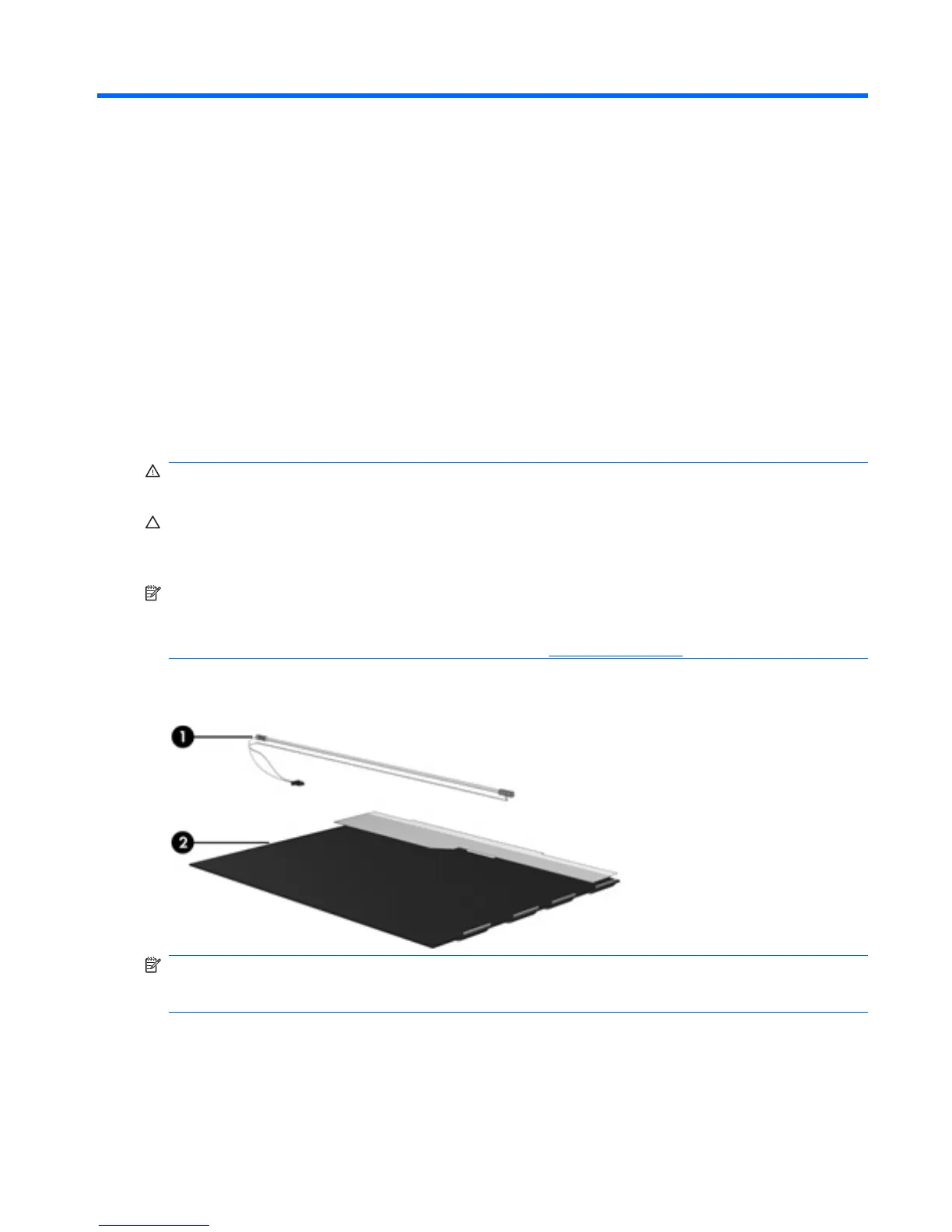

This section provides disassembly instructions for the display assembly. The display assembly must be
disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).
NOTE: The procedures provided in this chapter are general disassembly instructions. Specific details,
such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one
computer model to another.
Battery 151

HP Pavilion dv6 Specifications

General

LED backlight	Yes
Display surface	Gloss
Display diagonal	15.6 \
Display brightness	200 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Bus type	DMI
Stepping	D2
Tjunction	100 °C
Processor cache	6 MB
Processor cores	4
Processor model	i7-2670QM
System bus rate	5 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-2600 Mobile Series
Processor socket	BGA 1224
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	2.2 GHz
Processor cache type	L3
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.1 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	45 W
CPU multiplier (bus/core ratio)	22
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® HM65 Express
Memory slots	2x SO-DIMM
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
HDD size	2.5 \
HDD speed	5400 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi DL
Total storage capacity	500 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
On-board graphics card ID	0x116
Discrete graphics card model	AMD Radeon HD 7690M XT
On-board graphics card model	Intel® HD Graphics 3000
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
Audio system	Beats Audio
Number of built-in speakers	2
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
HDMI ports quantity	-
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 2.0 ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 7 Home Premium
Form factor	Clamshell
Product type	Laptop
Product color	Silver
Country of origin	China
Processor code	SR02S
Processor ARK ID	53470
Processor package size	31 mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Battery life (max)	- h
Number of battery cells	6
AC adapter power	120 W
Operating altitude	-15 - 3048 m
Non-operating altitude	-15 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	246.8 mm
Width	378 mm
Height	35.2 mm
Weight	2910 g
