Fans
Table 6-5 Fan description and part number
Description Spare part number
Fans L72702-001
Before removing the fans, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (see Bottom cover on page 28).
3. Disconnect the battery (see Battery on page 37).

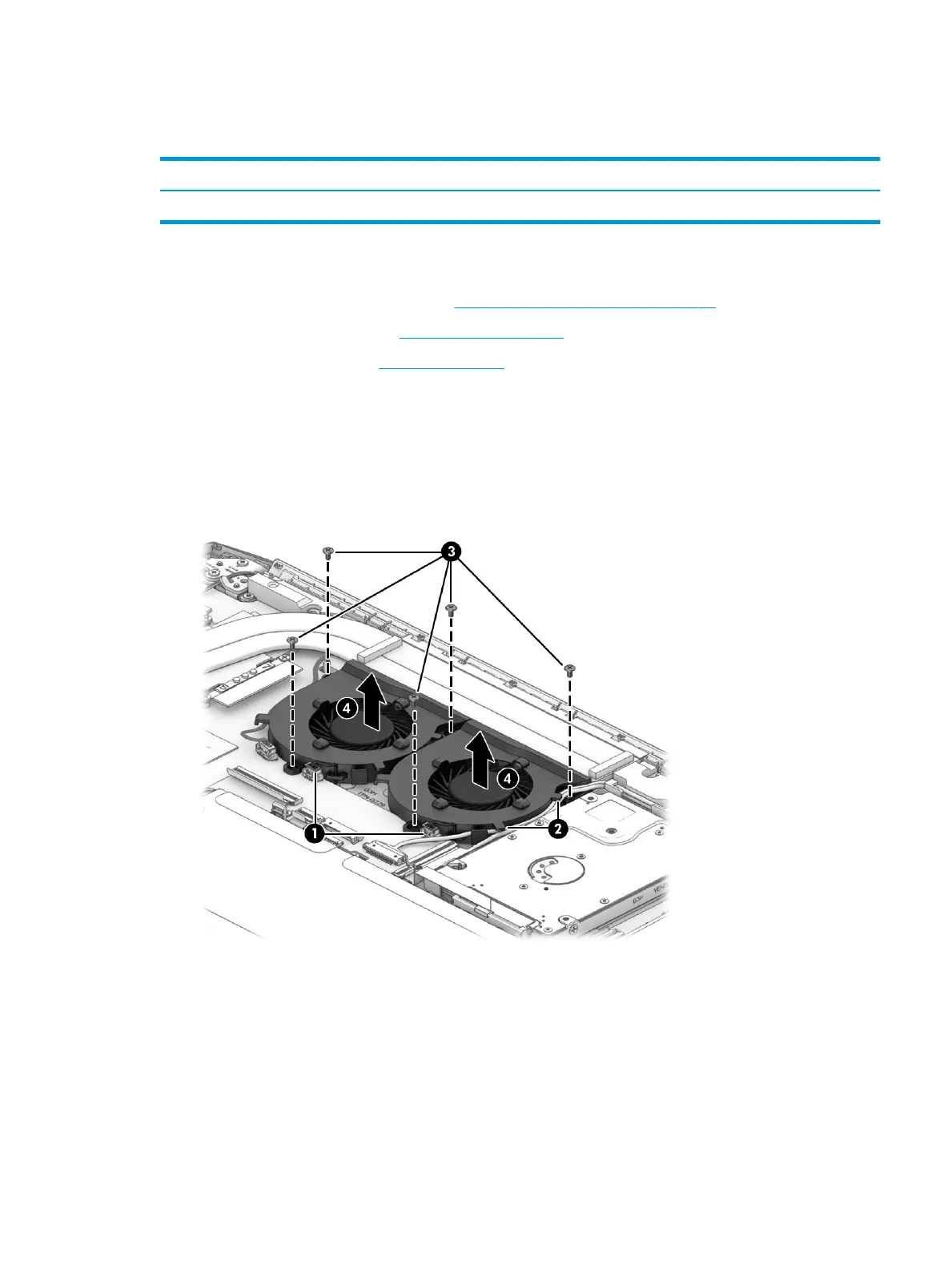

Remove the fans:
1. Disconnect the fan cables from the system board (1).
2. Remove the power connector cable from the clips in the right fan (2).
3. Remove the ve Phillips M2.0 × 3.5 screws (3) that secure the fans to the computer.
4. Remove the fans from the computer (4).
Reverse this procedure to install the fans.
