HP Pavilion x2 User Manual

Light sensor board
Description Spare part number
Light sensor board (includes cable) 765936-001
Before removing the light sensor board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Disconnect the tablet from the keyboard dock (see
Releasing the tablet from the keyboard dock
on page 25).
5. Remove the tablet cover (see
Tablet cover on page 43).
6. Disconnect the battery cable (see
Battery cable on page 45).

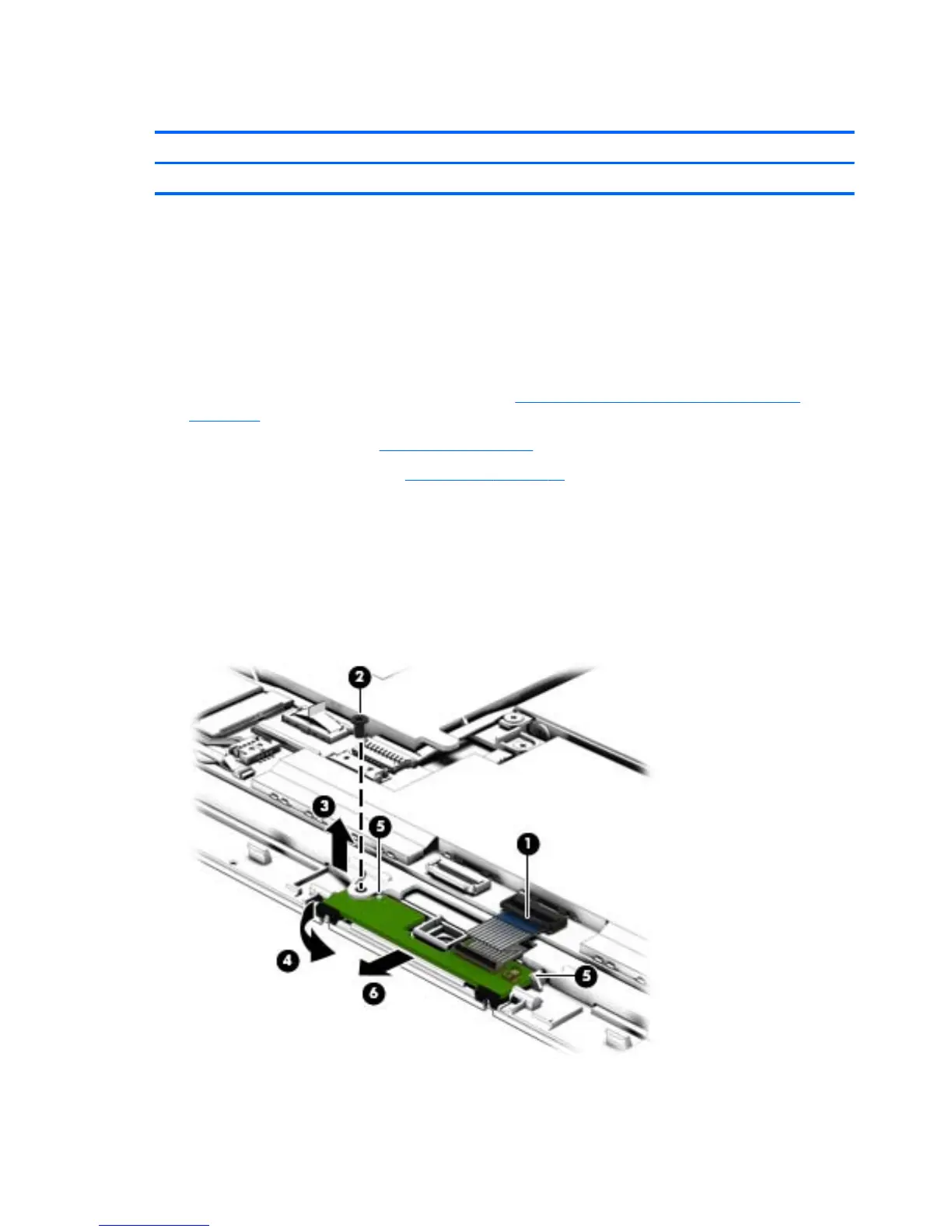

Remove the light sensor board:
1. Disconnect the light sensor board cable (1) from the system board.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the board to the tablet.
3. Lift the board upward (3), rotate it outward (4), and then remove it from the tabs and post (5) that help
to secure it.
4. Remove the light sensor board (6) from the tablet.
Reverse this procedure to install the light sensor board.
54 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion x2 Specifications

General

Bundled software	McAfee LiveSafe, Netflix
Operating system architecture	64-bit
Tjunction	90 °C
Processor cache	2 MB
Processor cores	4
System bus rate	- GT/s
Processor family	Intel Atom®
Processor series	Intel Atom x5 Series
Processor socket	BGA 592
Processor codename	Cherry Trail
Processor frequency	1.44 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	2.0
Processor boost frequency	1.92 GHz
PCI Express configurations	1x1
Thermal Design Power (TDP)	- W
Scenario Design Power (SDP)	2 W
Maximum number of PCI Express lanes	1
Form factor	Convertible (Detachable)
Product type	Hybrid (2-in-1)
Product color	White
Country of origin	China
Internal memory	4 GB
Memory clock speed	1600 MHz
Memory form factor	On-board
Internal memory type	LPDDR3-SDRAM
Maximum internal memory	- GB
Storage media	eMMC
Optical drive type	No
Card reader integrated	Yes
Total storage capacity	64 GB
Compatible memory cards	MicroSD (TransFlash)
Display diagonal	10.1 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Number of execution units	12
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 400
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	2 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	500 MHz
Docking connector	-
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Rear camera resolution (numeric)	5 MP
Audio decoders	DTS Studio Sound
Number of built-in speakers	2
Pointing device	Touchpad
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
AC adapter power	45 W
Battery capacity	32.5 Wh
Battery life (max)	10.5 h
Sustainability certificates	EPEAT Silver, ENERGY STAR
Processor code	SR2KT
Processor ARK ID	93361
Processor package size	17 x 17 mm
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
HP segment	Home
HP rear camera	HP Wide Vision 5MP
HP Software provided	HP Lounge

Weight and Dimensions

Depth	16.2 mm
Width	265 mm
Height	170 mm
Weight	1090 g
