HP ProBook 445 G8 User Manual

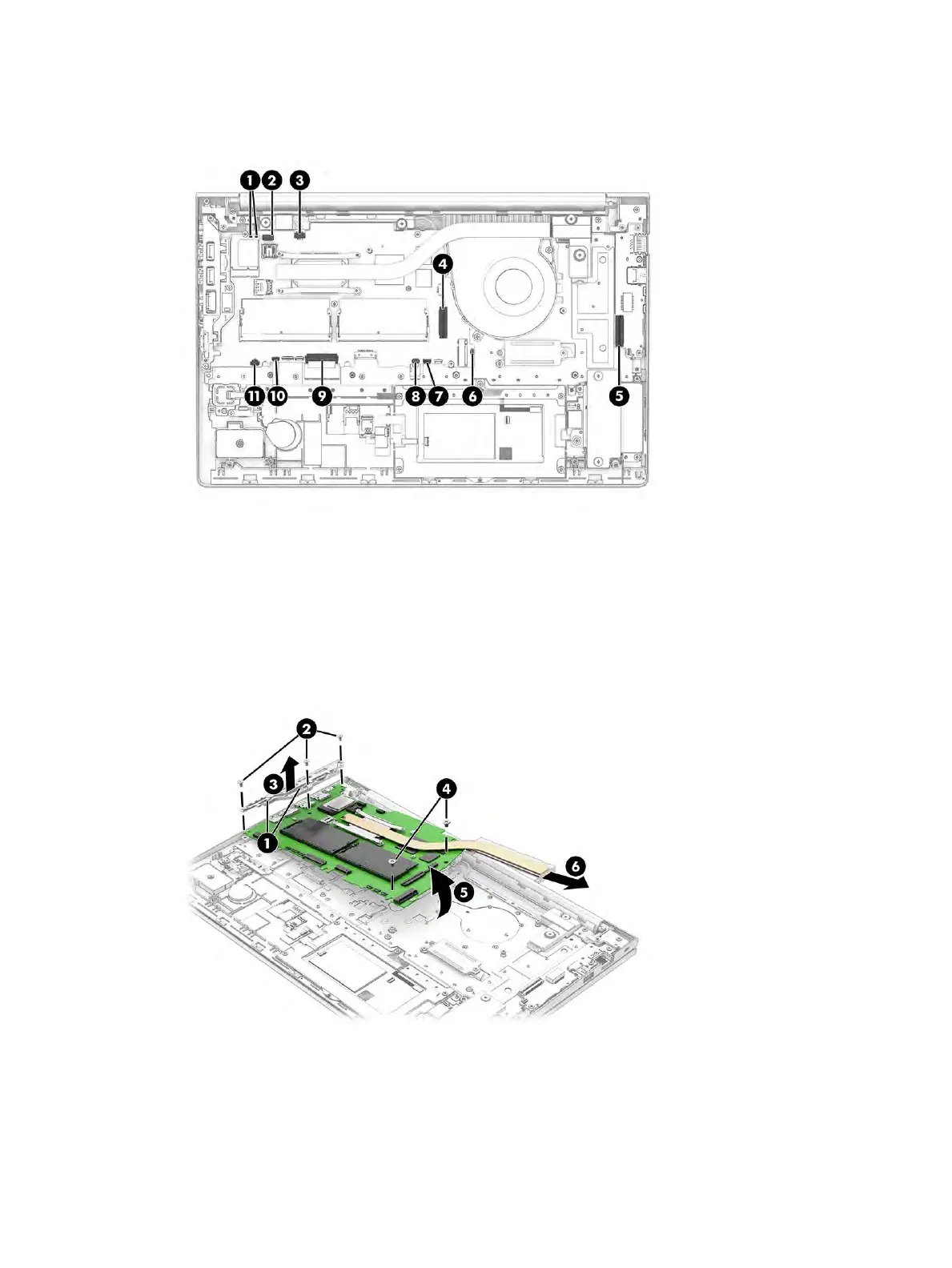

● Fingerprint reader cable (ZIF) (select products only) (10)
● RTC battery cable
(11)
2
. Remove the port bracket (1), by removing the three Phillips M2.0 × 4.0 screws (2) that secure the
bracket to the system board, and then removing the bracket (3).
3. Remove the two Phillips M2.0 × 2.5 screws
(4) that secure the system board to the computer.
4
. Lift the side of the system board upward (5), and then pull the system board away from the connectors
on the side of the computer to remove it (6).
Reverse this procedure to install the system board.
Speaker
To remove the speaker, use this procedure and illustration.
46 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP ProBook 445 G8 Specifications

General

Weight	Starting at 1.38 kg
Battery	3-cell, 45 Wh Li-ion
RAM	Up to 32 GB DDR4-3200 SDRAM
Storage	Up to 1TB PCIe NVMe M.2 SSD
Graphics	AMD Radeon Graphics
Operating System	Windows 10 Pro
Ports	1 x headphone/microphone combo
Wireless	Realtek RTL8822CE 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 5
Security	HP Sure Click; HP Sure Sense
Display	14-inch diagonal, FHD (1920 x 1080), IPS, anti-glare, 250 nits
