1. Prepare the computer for disassembly (see Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover on page 32).
3. Disconnect the battery cable from the system board (see Battery on page 33).
Remove the power connector cable:

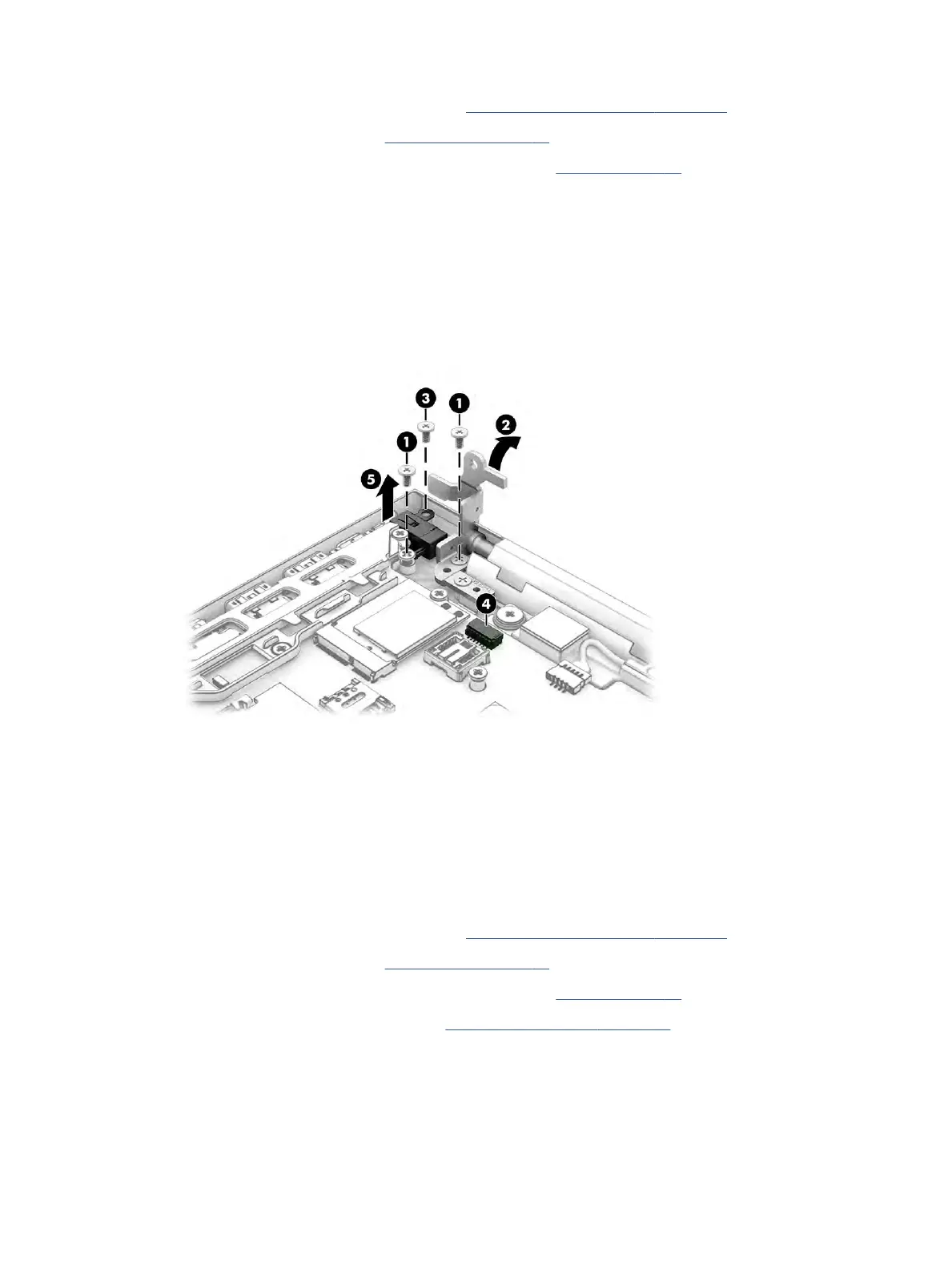

1. Remove the two Phillips M2.5 × 4.0 screws (1) that secure the right display hinge to the computer, and
then rotate the hinge o the power connector (2).
2. Remove the Phillips M2.0 × 4.0 screw (3) that secures the power connector to the computer.
3. Disconnect the cable from the system board (4).
4. Remove the power connector cable from the computer (5).
Reverse this procedure to install the power connector cable.
Display assembly
To remove and disassemble the display assembly, use these procedures and illustrations.
Full hinge-up displays are not available as spare parts. Spare parts for displays are available only at the
subcomponent level.
Before removing the display panel, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover on page 32).
3. Disconnect the battery cable from the system board (see Battery on page 33).
4. Remove the power connector cable (see Power connector cable on page 47).
Remove the display assembly:
1. If you need to remove the bezel:
48 Chapter 5 Removal and replacement procedures for authorized service provider parts
