MSM422 Access Point Quickstart 3 HP ProCurve Networking
Important information to read before installing
Warning: PROFESSIONAL INSTALLATION REQUIRED. For indoor installation only.
Prior to installing or using the MSM422, consult with a professional installer trained in
RF installation and knowledgeable in local regulations including building and wiring
codes, safety, channel, power, indoor/outdoor restrictions, and license requirements for
the intended country. It is the responsibility of the end user to ensure that installation and
use comply with local safety and radio regulations.
Surge protection and grounding: If you plan on connecting an outdoor antenna to the
MSM422, make sure that proper lightning surge protection and grounding precautions are
taken according to local electrical code. Failure to do so may result in personal injury, fire,
equipment damage, or a voided warranty. The HP ProCurve hardware warranty provides no
protection against damage caused by static discharge or a lightning strike.
Cabling: You must use the appropriate cables, and where applicable, surge protection, for
your given region. For compliance with EN55022 Class-B emissions requirements, use
shielded Ethernet cables. Cat 5e (or better) cabling is required.
Plenum installation: The MSM422 can be installed in a plenum. The MSM422 is suitable for
use in environmental air space in accordance with Section 300-22(C) of the National
Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of the Canadian Electrical Code,
Part 1, CSA C22.1. It should be installed in a similar orientation as in a ceiling installation.
However, it is left to a qualified installer to determine how to install/secure the MSM422 in a
plenum in an appropriate and safe manner. Plenum-rated cables and attachment hardware
must be used.
Country of use: In some regions, you are prompted to select the country of use during setup.
Once the country has been set, the MSM422 will automatically limit the available wireless
channels, ensuring compliant operation in the selected country. Entering the incorrect
country may result in illegal operation and may cause harmful interference to other systems.
See Regulatory Notice for European Union and EFTA member countries on page 6.
Caution: External Antennas: When using an external antenna, depending on the
country of use, the antenna selected, and your radio settings, it may be
mandatory to reduce the radio transmission power level to maintain
regulatory compliance. For specific power limits for your country, consult the
Antenna Power-Level Setting Guide available on the HP ProCurve manuals
page for the MSM3xx/4xx Access Points at
www.hp.com/go/procurve/manuals.
To set the radio power transmission level, for controlled access points see Transmit power
control in the MSM7xx Controllers Management and Configuration Guide. For autonomous
access points, see Transmit power control in the MSM3xx / MSM4xx Access Points
Management and Configuration Guide.
Safety: Take note of the following safety information during installation.
• If your network covers an area served by more than one power distribution system, be
sure all safety grounds are securely interconnected.
• Network cables may occasionally be subject to hazardous transient voltages (caused by
lightning or disturbances in the electrical power grid).
• Handle exposed metal components of the network with caution.
• The MSM422 is powered-on when the Ethernet port is plugged into a PoE power source
or when an external power supply is connected.
• The MSM422 and all interconnected equipment must be installed indoors within the
same building (except for outdoor models / antennas), including all PoE-powered
network connections as described by Environment A of the IEEE 802.3af standard.

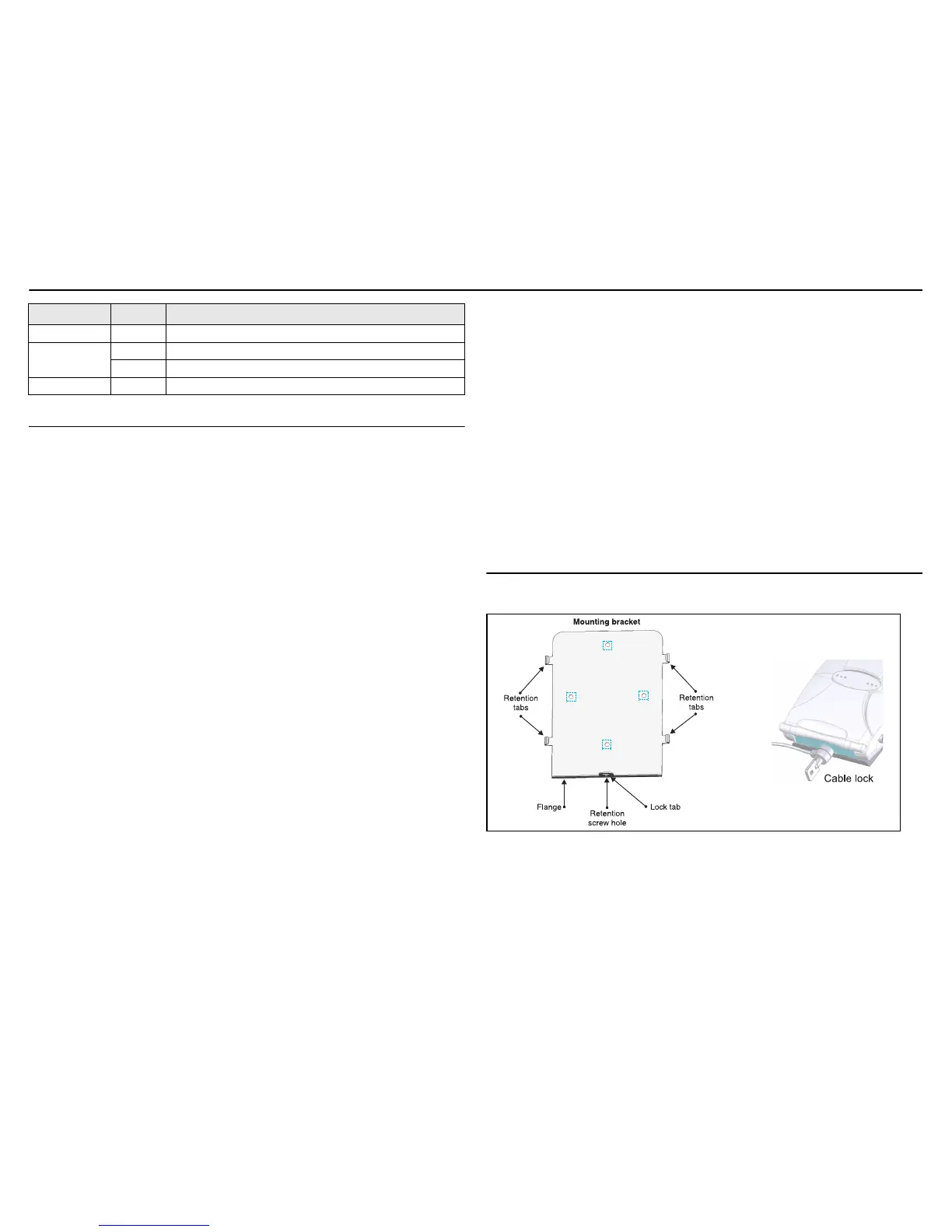

Installation
Mounting on a wall
1. Using the supplied wall anchors and screws, attach the mounting bracket vertically to a
wall with the flange at the bottom. Use at least two opposing screw holes. Leave enough
space above the MSM422 for cable access and antenna flap extension.
2. Hold the MSM422 about 2.5 cm (an inch) above the flange, then slide the MSM422 into
the bracket so that it rests on the flange and its feet are held in place by the retention tabs.
3. Using the retention screw, secure the MSM422 to the bracket. Optionally, you also can
use a Kensington-type cable lock.
Info On The MSM422 is fully operational.
Ethernet
Off The Port is not connected or there is no activity.
Blinking The port is transmitting or receiving data.
Radio 1, 2 Blinking The radio is transmitting or receiving data.
Light State Description
