Installing the Switch
Installation Procedures
Installing the Switch
620 RPS/EPS Connectivity
This section shows some recommended connection topologies using the 620
RPS/EPS. The 620 RPS/EPS can provide backup power support for up to two
ProCurve switches. In the illustration below, two ProCurve Switch 3500yl-
24G-PWR units are connected to the RPS ports on a 620 RPS/EPS.

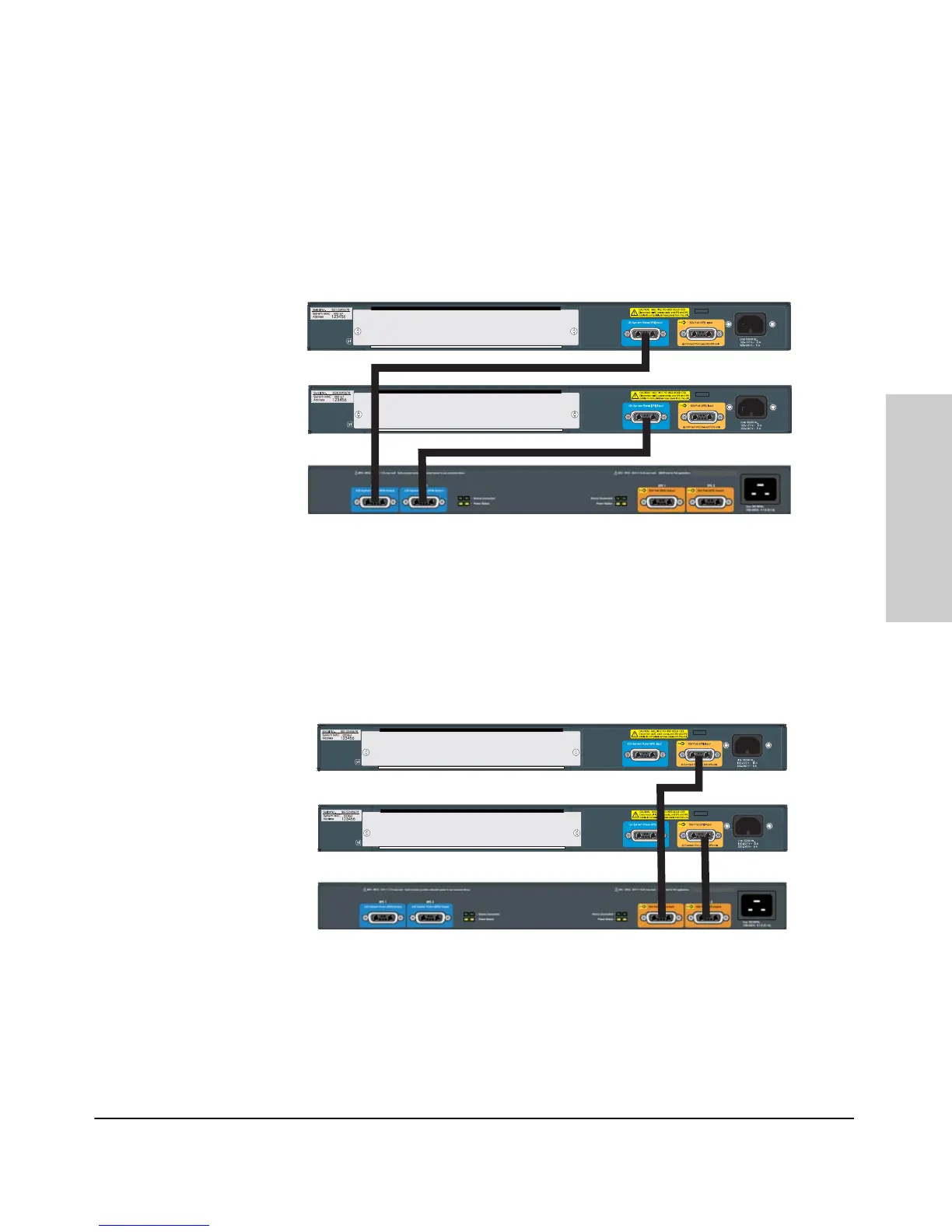

Figure 2-13. Connecting RPS to 2, 24 port switches.
The 620 RPS/EPS is designed to provide primary or backup power to up to
two ProCurve PoE switches. In the following illustration, two ProCurve
Switch 3500yl-24G-PWR units are being supplied with external PoE power
from an 620 RPS/EPS. The switches provide PoE power to Ethernet devices
connected to their ports.
Figure 2-14. Connecting EPS to 2, 24 port switches.
