HP ProLiant ML310 Generation 5p User Manual

Hardware options installation 46
4.

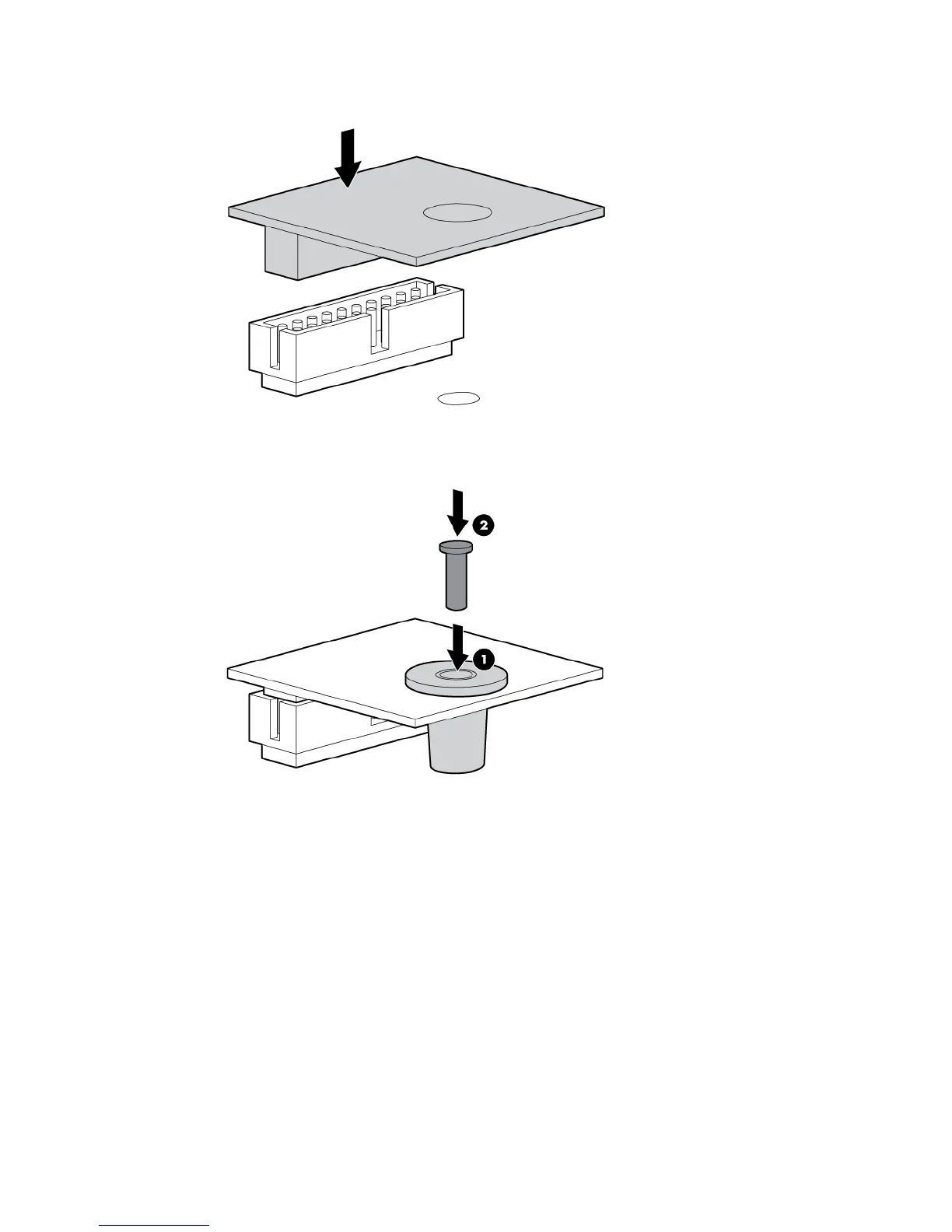

Install the TPM board. Press down on the connector to seat the board ("System board components" on
page 11).
5. Install the TPM security rivet by pressing the rivet firmly into the system board.
6. Install the access panel (on page 18).
7. Lock the bezel.
8. Power up the server (on page 16).
Retaining the recovery key/password
The recovery key/password is generated during BitLocker™ setup, and can be saved and printed after
BitLocker™ is enabled. When using BitLocker™, always retain the recovery key/password. The recovery
key/password is required to enter Recovery Mode after BitLocker™ detects a possible compromise of system
integrity.
To help ensure maximum security, observe the following guidelines when retaining the recovery
key/password:
• Always store the recovery key/password in multiple locations.

HP ProLiant ML310 Generation 5p Specifications

General

Processor Sockets	1
Chipset	Intel 3200
Memory Slots	4
Storage	SATA or SAS
Form Factor	Tower
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000 sequence, Dual-Core Intel Pentium, Intel Celeron
Memory	Maximum 8 GB PC2-6400E DDR2 SDRAM
Drive Bays	4 LFF SATA Hot-Plug or Non-Hot-Plug
Storage Controller	HP Smart Array E200i
RAID Support	RAID 0, 1
Optical Drive	Optional
Network	Embedded NC105i PCI Express Gigabit Server Adapter
