Configuration
3-2 HP Uninterruptible Power System T1000 XR and T1500 XR Models User Guide
HP CONFIDENTIAL Codename: Sherman Part Number: 216164-002 Last Saved On: 8/19/02 4:21 PM

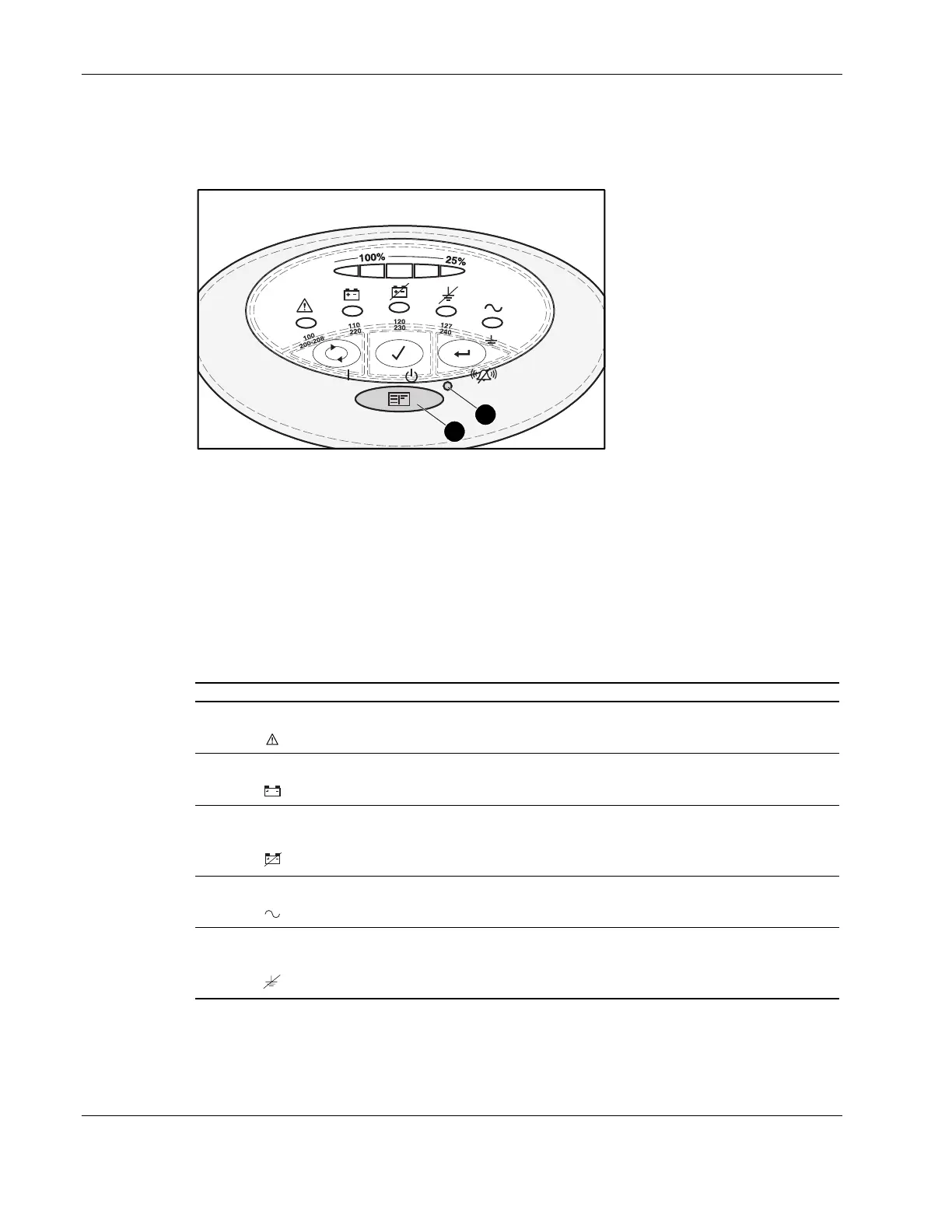

2. Press and hold the Configure button (2) for three seconds. When the Configure button is
released, the front panel configuration parameters flash in unison and the Configure
Mode On LED (1) illuminates solid green.
2
1
Figure 3-2: Placing the UPS in Configure mode
Configuration Parameters
In Configure mode, the front panel LED display changes function to allow UPS monitoring.
The LED control buttons allow modification of the UPS configuration parameters. The
configuration parameters are defined in Table 3-1. Available voltage settings per model are
listed in Table 3-2.
Table 3-1: Configuration Parameters
Parameter (LED) Parameter Name Explanation (when illuminated)
General Alarm
(
)
100 Nom Nominal utility voltage level is selected to 100 VAC.
On Battery
(
)
110/220 Nom Nominal utility voltage level is selected to 110/220 VAC.
Bad Battery/Low
Battery
(
)
120/230 Nom Nominal utility voltage level is selected to 120/230 VAC.
Utility LED
(
)
127/240 Nom Nominal utility voltage level is selected to 127/240 VAC.
Site Wiring Fault
Indicator
( )
Site Wiring
Fault Indicator
Audible alarm is enabled if ground is missing, or if line
and neutral connections are reversed.
