6-5 ABNORMAL HORIZONTAL DEFLECTION

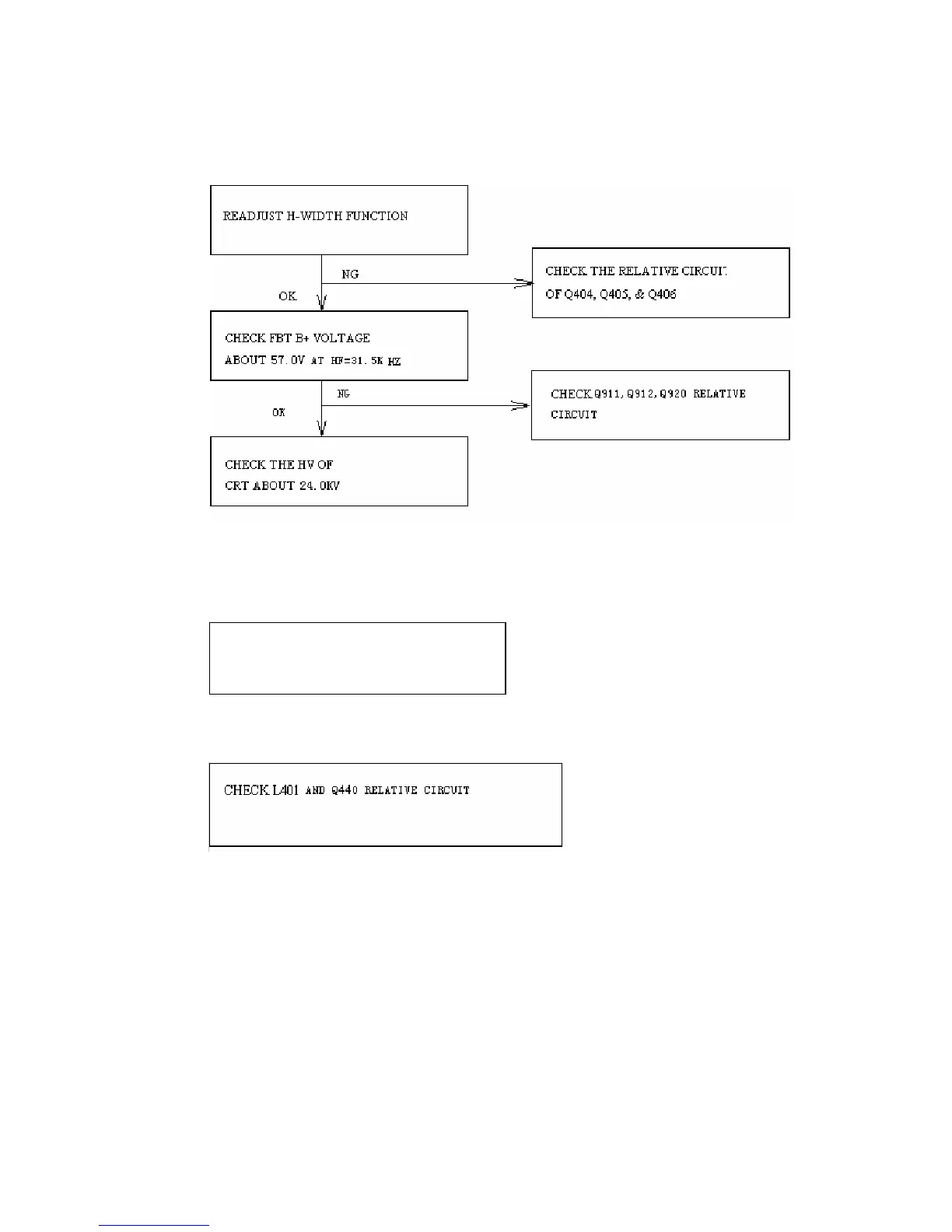

1. ABNORMAL HORIZONTAL WIDTH OF VIDEO

2. ABNORMAL HORIZONTAL VIDEO CENTER

RELATIVE CIRCUIT

CHECK IC401 PIN 4, 7

3. ABNORMAL HORIZONTAL LINEARITY
