9.2.2 Power Board

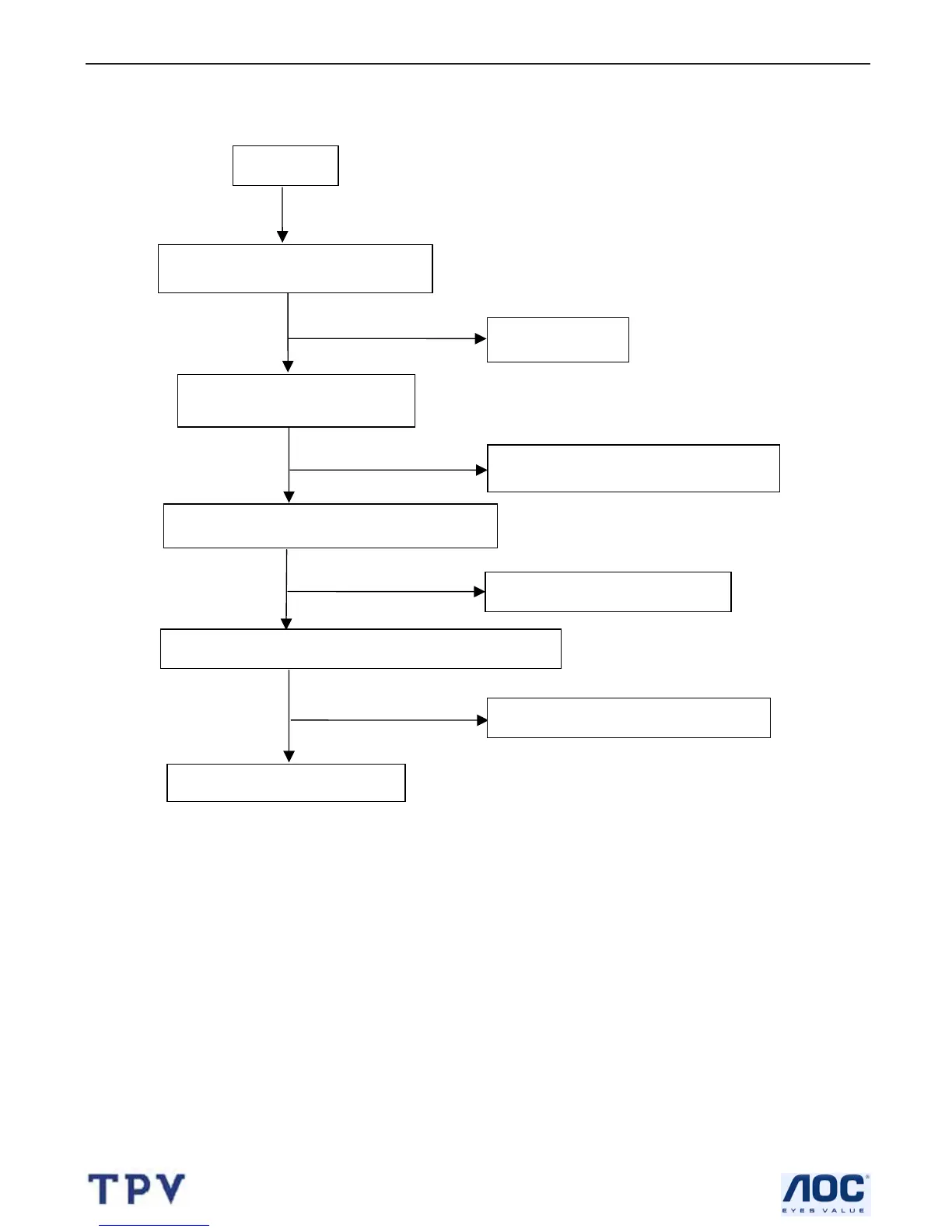

1. No Power
Check AC line volt 110V or 220V
OK
Check AC line
Check the voltage of C904(+)
Check F901, bridge rectified circuit
Check start voltage for the pin3 of IC901
Check R912, R916, R918, IC901
Check the auxiliary voltage is between 10V-17V
Check IC901,T901,ZD901 OVP circuit
OK
Check D903, D907, FB Circuit
OK
NG
No power
NG
NG
OK
NG
To Next Page
