Appendix A Chassis views and technical
specifications
Chassis views
The following figures are for illustration only.
MSR3012 AC

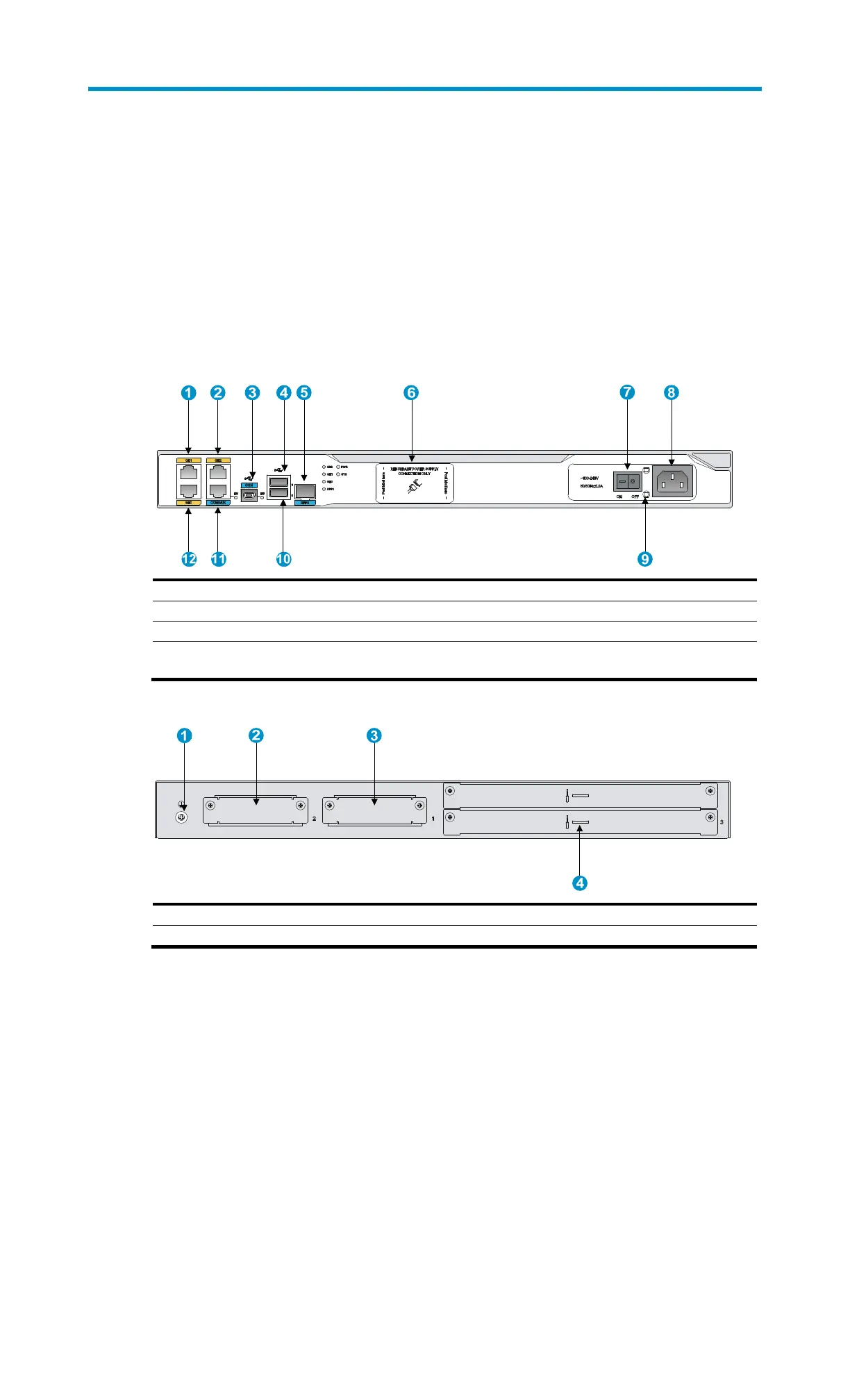

Figure 64 MSR3012 AC front view
(1) Gigabit Ethernet port (GE1) (2) Gigabit Ethernet port (GE2) (3) USB console port (CON)
(4) USB port 1 (5) SFP interface
(SFP0)
(6) RPS receptacle cover
(7) Power switch (8)
C-input power receptacle
(9) Power cord bail latch
(10) USB port 0 (11) Console port/AUX port
(CON/AUX)
(12) Gigabit Ethernet port (GE0)
Figure 65 MSR3012 AC rear view
(1) Grounding terminal (2) SIC slot (slot 2) (3) SIC slot (slot 1)
(4) HMIM slot (slot 3)
