MSR3044

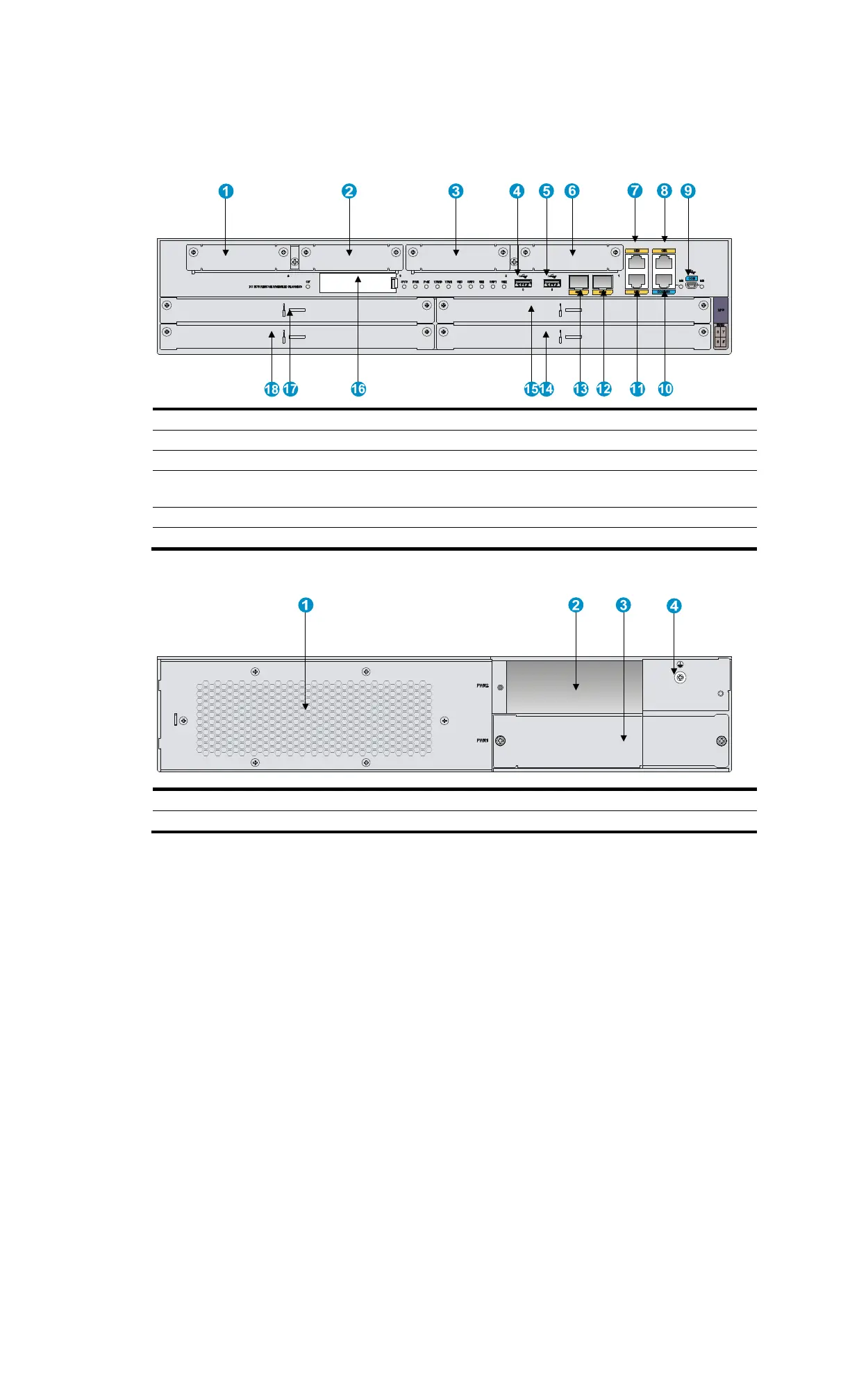

Figure 74 MSR3044 front view
(1) SIC slot (slot 4) (2) SIC slot (slot 3) (3) SIC slot (slot 2)
(4) USB port 0 (5) USB port 1 (6) SIC slot (slot 1)
(7) Gigabit Ethernet port (GE1) (8) Gigabit Ethernet port (GE2) (9) USB console port (CON)
(10) Console port/AUX port
(CON/AUX)
(11) Gigabit Ethernet port (GE0) (12) SFP port (SFP1)
(13) SFP port (SFP0) (14) HMIM slot (slot 5) (15) HMIM slot (slot 7)
(16) CF card cover (17) HMIM slot (slot 8) (18) HMIM slot (slot 6)
Figure 75 MSR3044 rear view
(1) Fan ventilation panel (2) Power module slot (PWR2) (3) Power module slot (PWR1)
(4) Grounding terminal
