HP Z24f G3 User Manual

8
3 Illustrated parts catalog

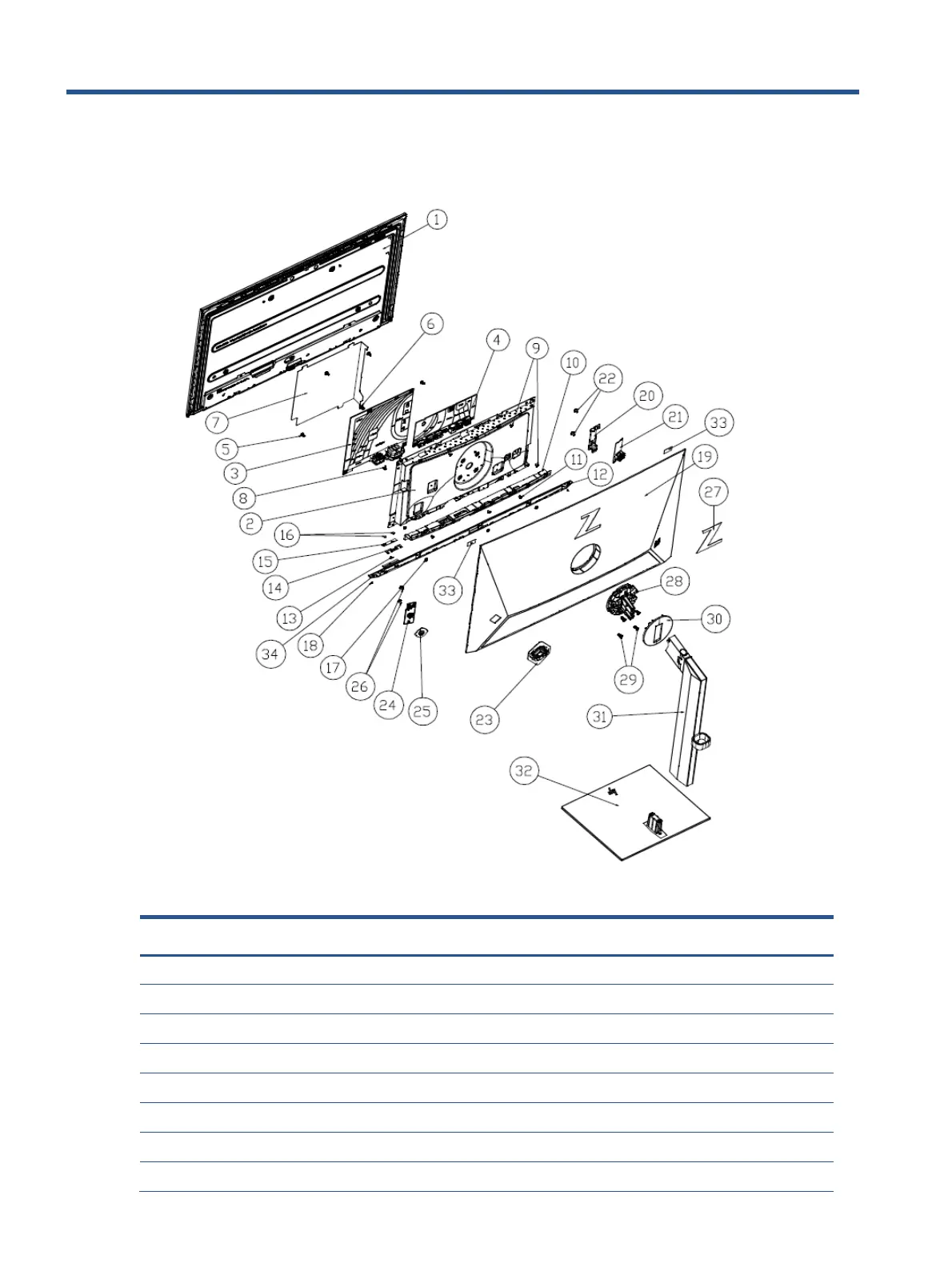

To identify the monitor major components, use this illustration and table.
Table 3-1: Monitor major components and their descriptions
Item
Description
Part number
Qty
1
# ASSY Panel Z24f G3
1
2
#ASSY Main Chassis Z24f G3
1
3
#Power Board Z24f G3
1
4
#Interface Board Z24f G3
1
5
#Screw Machine M3*6
4
6
#Screw Cap Head M4*8
1
7
#Mylar Power Z24f G3
1
8
#Screw Tapping Wafer M3*8 White Ni
2

HP Z24f G3 Specifications

General

Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Display diagonal	23.8 \
Display technology	-
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 75 kHz
Viewable size diagonal	296 mm
Contrast ratio (typical)	1000:1
Display diagonal (metric)	60.45 cm
Viewable size, horizontal	527 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Product color	Silver
Heavy metals free	Hg (mercury)
Market positioning	Business
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	4
Number of USB Type-B upstream ports quantity	1
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 20 °
Number of OSD languages	10
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR
AC input voltage	100 - 240 V
Power consumption (max)	58 W
Power consumption (standby)	0.5 W
Power consumption (typical)	26 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR
Package depth	373 mm
Package width	625 mm
Package height	142 mm
Package weight	7200 g
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	195 mm
Width (with stand)	538.4 mm
Height (with stand)	489.3 mm
Weight (with stand)	4700 g
Depth (without stand)	38.5 mm
Height (without stand)	313.7 mm
Weight (without stand)	3500 g
