Huawei AP5030DN Product Description

Huawei AP5030DN Access Points
Product Description
2 Hardware Structure
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Port

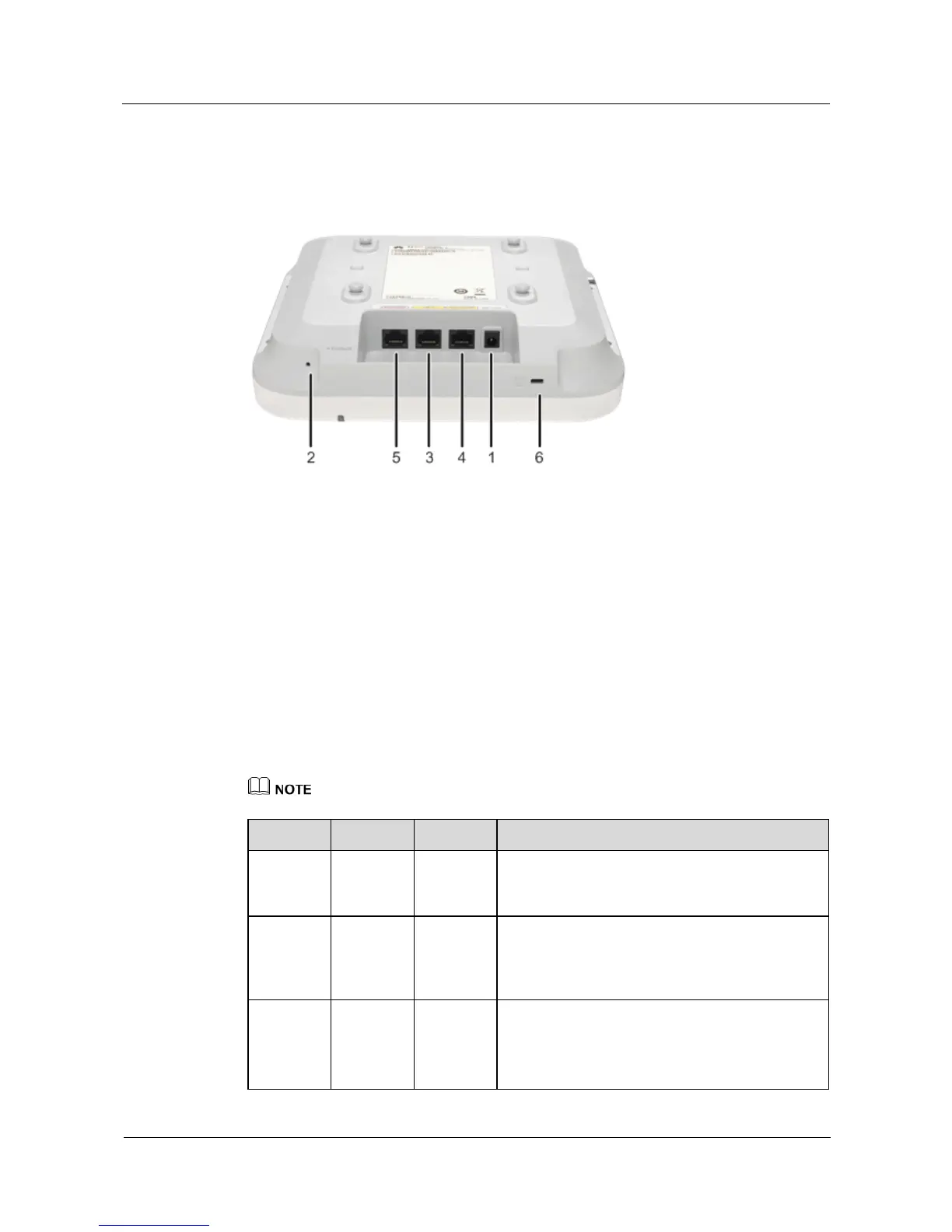

The following figure shows ports on the AP5030DN.
Figure 2-2 AP5030DN ports
As shown in Figure 2-2, each port can be described as follows:

1. Input port for 12 V DC power supply

2. Default button: restores factory settings if you hold down the button more than 3
seconds.

3. GE1: 10/100/1000M port used to connect to the wired Ethernet.

4. GE0/PoE: 10/100/1000M port used to connect to the wired Ethernet. The port can
connect to a PoE power supply to provide power for APs.

5. Console port: connects to the maintenance terminal for AP configuration and
management.

6. Lock port: protects the AP against theft.
LED Indicators
Indicator colors may vary slightly at different temperature.
Type
Color
Status
Description
Default
status after
power-on
Green
Steady on
The AP is just powered on and the software is not
started yet.
Software
startup
status
Green
Steady on
after
blinking
once
After the system is reset and starts uploading the
software, the indicator blinks green once. Until the
software is uploaded and started, the indicator
remains steady green.
Running
status
Green
Blinking
once every
2s (0.5
Hz)

The system is running properly, the Ethernet
connection is normal, and STAs are associated
with the AP.

The system enters the Uboot CLI.

Huawei AP5030DN Specifications

General

Brand	Huawei
Model	AP5030DN
Category	Wireless Access Point
Language	English
