RRU
Hardware Maintenance Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1. Use an M6 Phillips screwdriver to loosen the upper and lower installation plates on the
non-blade RRU to be replaced, as shown in Figure 4-25.

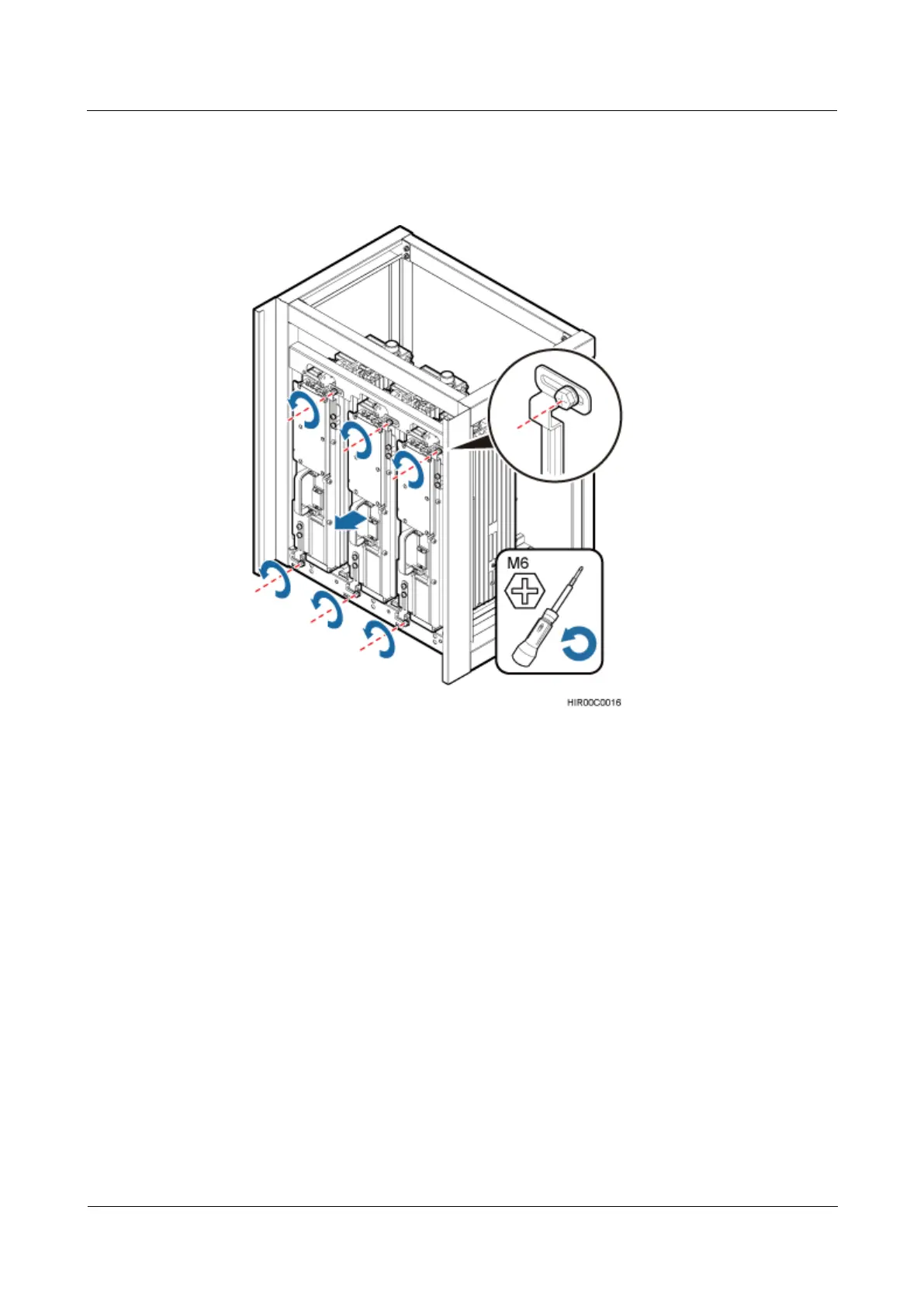

Figure 4-25 Loosing the upper and lower installation plates
2. Pull the RRU to be replaced out of the ICR.
Step 3 Install the mounting brackets for the blade RRU.
1. Remove the attachment plate from the rear of the RRU, as shown in Figure 4-26.
