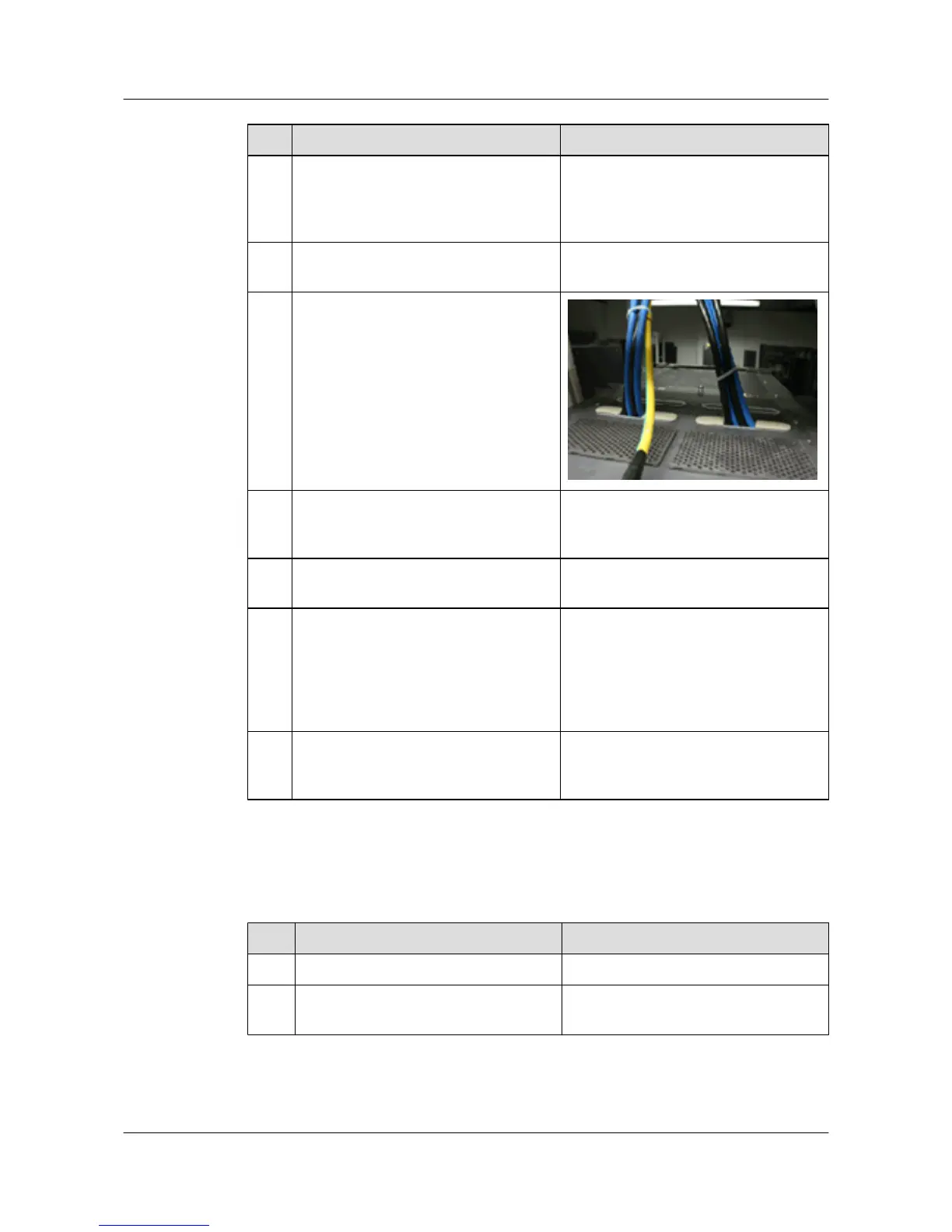

Huawei S5700 Series User Manual

No. Item Method
2 The power cables and ground cables are
connected safely. The spring washer of
the ground cable terminal is on the flat
washer.
-
3 The lugs of the power cables and ground
cables are soldered or crimped tightly.
-
4 The power cables and ground cables are
not crossed and are separated from other
cables.
5 The redundant part of the power cables
and ground cables should be cut. The
cables cannot be circled.
-
6 The ground cables must be tightly
connected to the doors of the cabinet.
-
7 Labels are filled and attached to power
cables and PGND cables; power cables
and PGND cables including power
distribution switches are labeled correctly
and clearly. Labels are attached 20 mm
from the connector.
-
8 The clearance between the power cable,
PGND cable, and signal cable must be
more than 30 mm.
-
Table 4-3 describes the cabinet cable checklist.
Table 4-3 Cabinet cable checklist
No.
Item Method
1 Cables are correctly connected. -
2 Cable ties are not overlapped and
connectors are smooth.
-
Table 4-4 describes the signal cable checklist.
S3700&S5700&S6700 Series Ethernet Switches
Quick Start 4 Powering on the Device
Issue 02 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
52

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
