3.5 User Interface Module UIM02C
Panel
The user interface module UIM02C supports eight dry contact outputs, six dry contact inputs,
and seven sensor ports. The sensor ports include one ambient temperature and humidity input,
one water sensor input, two ambient temperature inputs, one door status sensor input, one
smoke sensor input, and one battery temperature input.

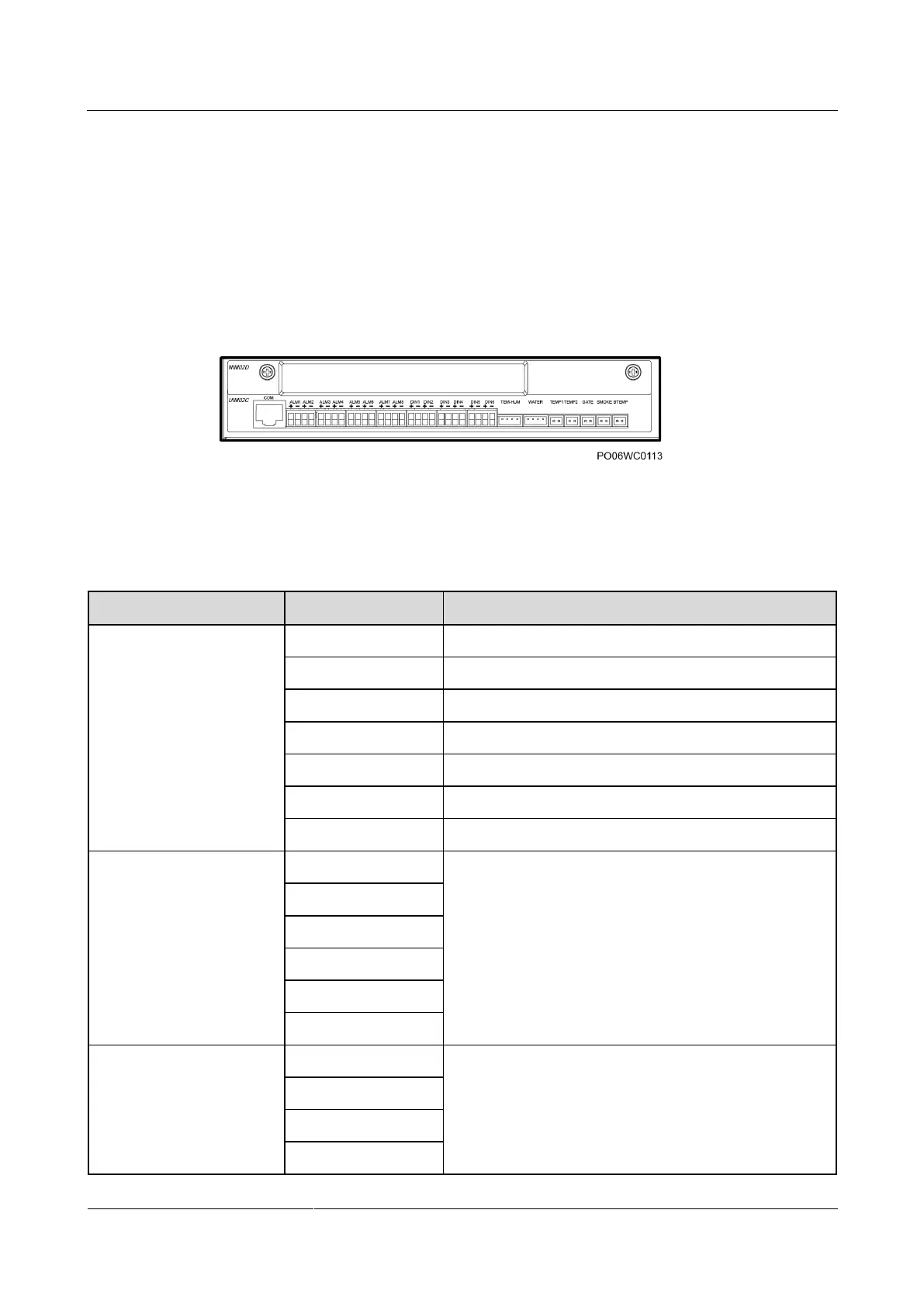

Figure 3-8 UIM02C panel
Ports
Table 3-8 UIM02C ports
Ambient temperature and humidity sensor
Ambient temperature sensor 1
Ambient temperature sensor 2
Battery temperature sensor
NOTE
For the associations between the dry contact input ports and
alarms, see the appendix.
NOTE
For the associations between the dry contact output ports and
alarms, see the appendix.
