Huawei UPS2000-G-10KRTL Quick Guide

- + - +
PE
BATT.240VDC
- + - +
UG06009987
PE
BATT.PORT/24 0VDC
PE
BATT.PORT/240VDC
PE
BATT .PORT/240VDC
PE
BATT.PORT/240VDC
- +
-
+
PE
BATT.240VDC
UG06009990
UG07009998
4

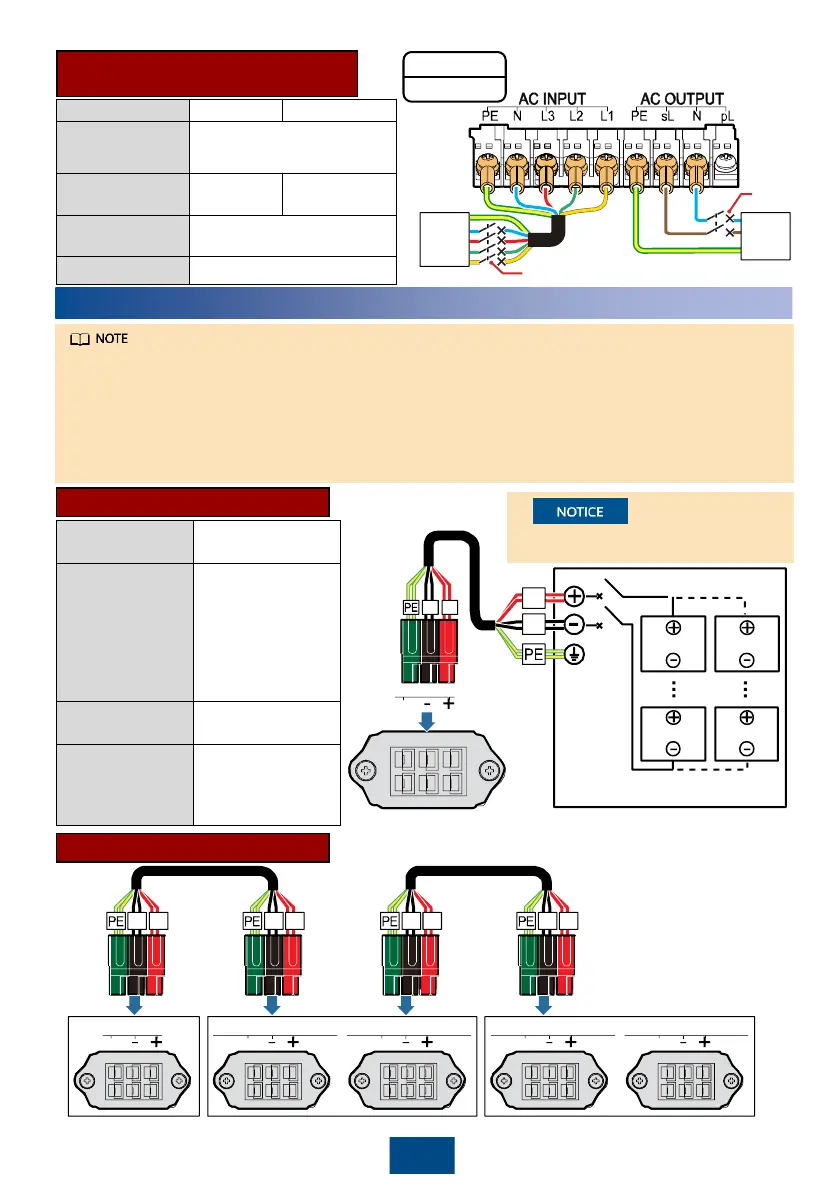

10 kVA Three-Phase Input and
Single-Phase Output
Mains
AC
loads
1. The UPS2000-G-6KRTL/10KRTL can connect to external battery strings. Each battery string
consists of 20 batteries in standard configuration, and the number of batteries ranges from
16 to 20.
2. Install a DC circuit breaker between the battery string and the UPS (50 A, 300 V DC circuit
breaker for the 6 kVA UPS, and 63 A, 300 V DC circuit breaker for the 10 kVA UPS).
3. One to four battery packs can be connected. For details, see the ESS-240V12-(9AhBPVBA,
7AhBPVBA) Quick Installation Guide .
3
Installing Battery Cables
Ground
point
External battery strings
Battery 1
Wiring
Terminal
Battery
(BATT.240VDC)
External Circuit
Breaker
•
6 kVA: 50 A
(the
characteristics
of D)
•
10 kVA: 63 A
(the
characteristics
of D)
Cable Cross
-
sectional Area
•
6 kVA: 6 mm²
•
10 kVA: 10 mm
²
Terminal Type
•
6 kVA: 6 mm²
M4 OT terminal
•
10 kVA
: 10 mm²
M6 OT terminal
External Battery Strings
External Battery Packs
UPS battery port
Battery pack 1 ports Battery pack 2 portsUPS battery port
Wiring Terminal
AC INPUT
AC OUTPUT
External Circuit
Breaker
63 A (the characteristics of
D)
Earth Leakage
Circuit Breaker
100
mA
-
Cable Cross
-
sectional Area
10 mm
²
Terminal Type
10 mm² M6 OT terminal
M5 (8 PCS)
2.8 N·m
Q1
K1
Do not reverse-connect the DC
circuit breaker.
Battery 1
Battery 20 Battery 20
