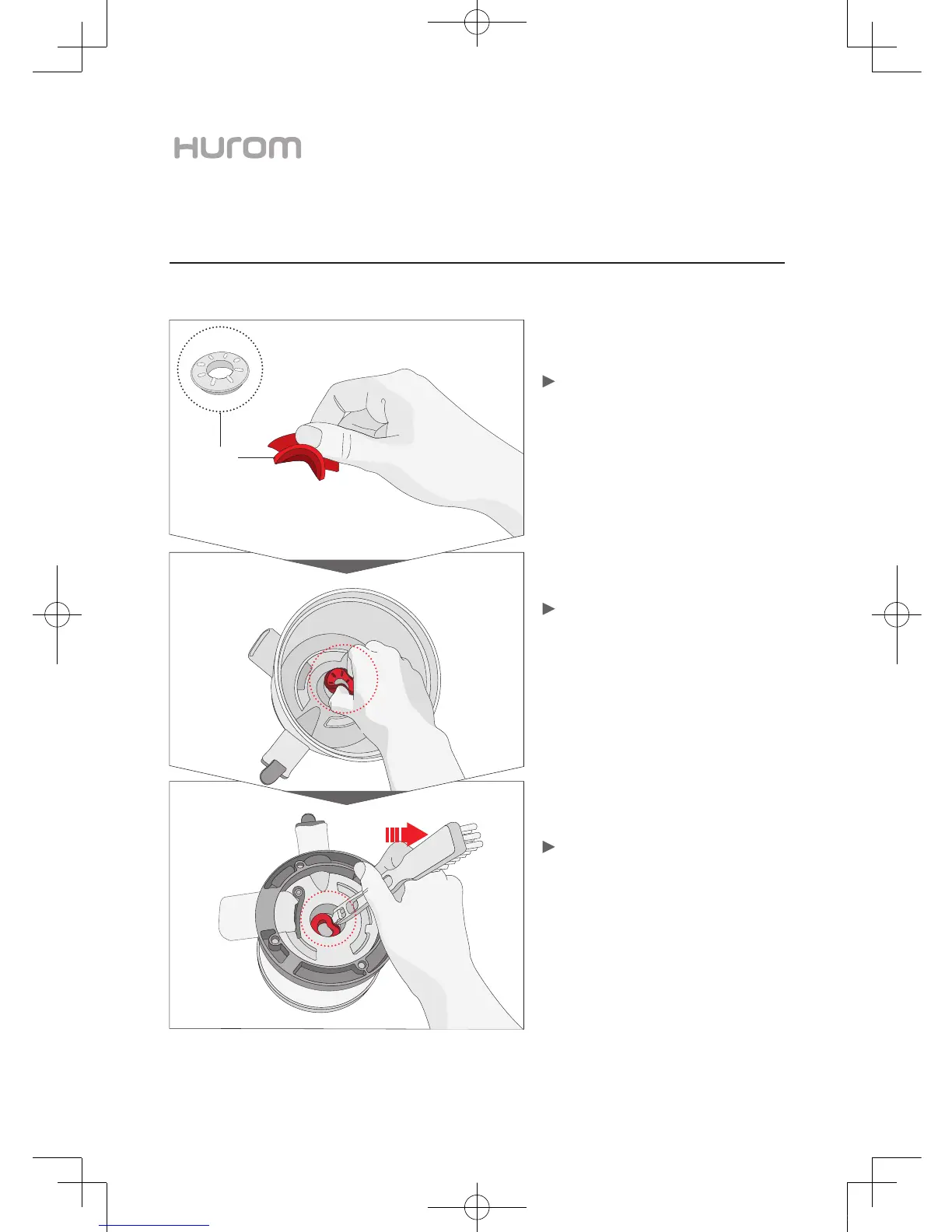

ASSEMBLING THE CHAMBER SEAL
Insert the chamber seal into the cham-
ber hole.
Turn over the chamber and settle the
chamber seal into place.
Insert the bottom of the chamber seal into the
chamber hole and press it down fully. Do not in-
sert the entire chamber seal. The upper part of the
chamber seal must stay above the chamber hole.
If the chamber seal at the bottom of the chamber
is not fully installed, set it into place properly with
the rotating pick on the end of the cleaning brush.
Hold the chamber seal by pinching it
between the thumb and index finger.
As shown to the left in the dotted circle, let the pro-
truding part on the chamber seal face upward when
you hold it by pinching it between the thumb and
index finger.
20 l
Chamber seal
3
2
1
