Maintenance (continued)

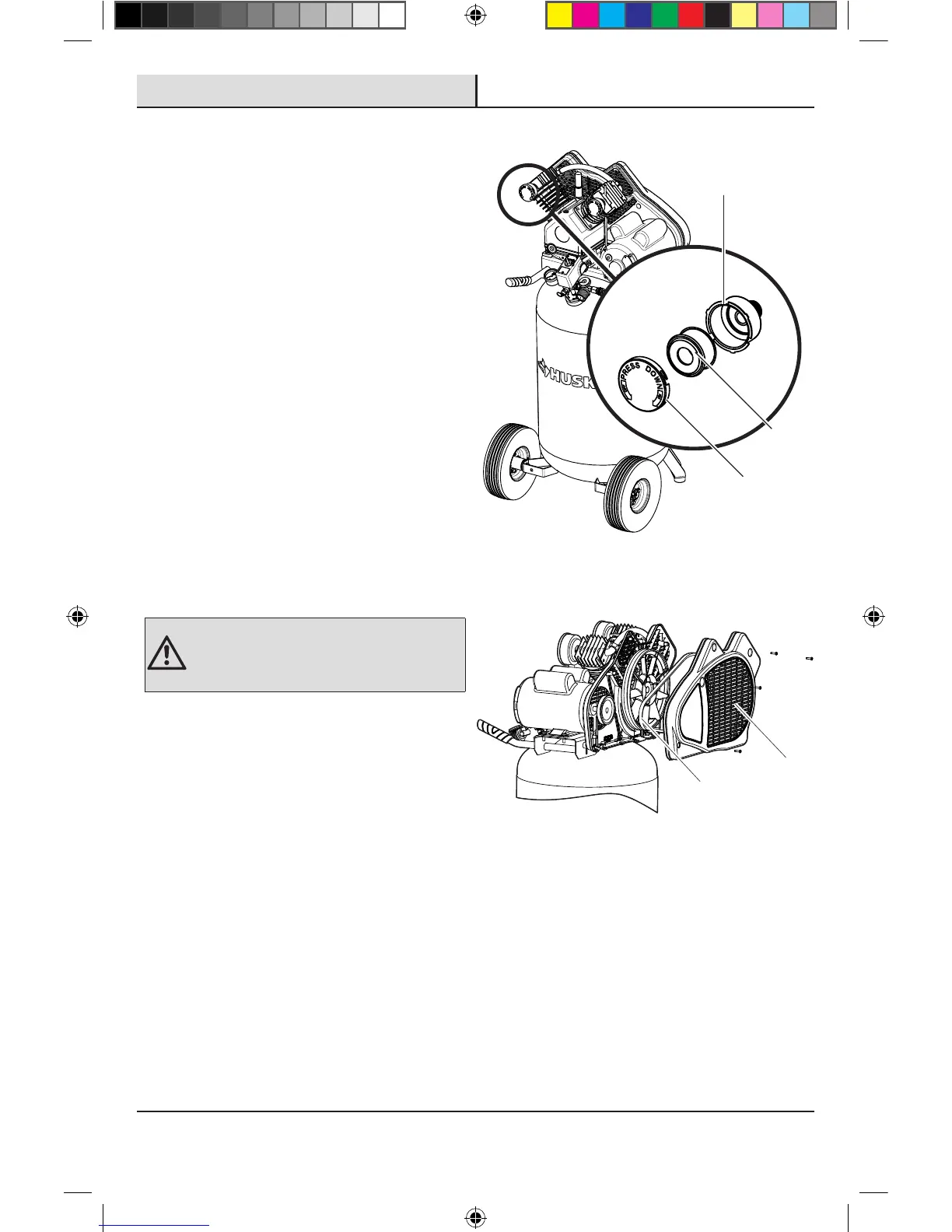

CLEANING THE AIR FILTER
From time to time, the air filter needs to be removed
and cleaned.
□ Turn the air compressor to the OFF position (O).
□ Unplug the air compressor.
□ Unsnap the air filter cover (1) to remove.
□ Remove the air filter (2) from the air filter
housing (3).
□ Blow compressed air through the air filter for
10-15 seconds.
1
2
3
1
2
REPLACING THE BELT
WARNING: Serious injury or damage may occur if parts
of the body or loose items get caught in moving parts.
Never operate the unit with the belt guard removed. The
belt guard should be removed only when the air compressor
power is disconnected.
□ Turn the air compressor off, lock out the power
supply, and relieve all air pressure from the air
tank.
□ Remove the four screws from the belt guard (1).
The front belt guard can now be lifted up and
away from the unit.
□ Mark the pump position on the saddle.
□ Loosen the motor mounting screws and slide the
motor toward the air compressor.
□ Remove the belt (2) and replace with a new one.
□ See Adjusting the Belt Tension before tightening
the motor mounting screws.
NOTE: Once the engine pulley has been moved from its
factory set location, the groves of the flywheel and pulley
must be aligned to within 1/16 in. (1.6mm) to prevent
excessive belt wear. Verify the alignment by performing the
following pulley and flywheel alignment.
To Next Page
