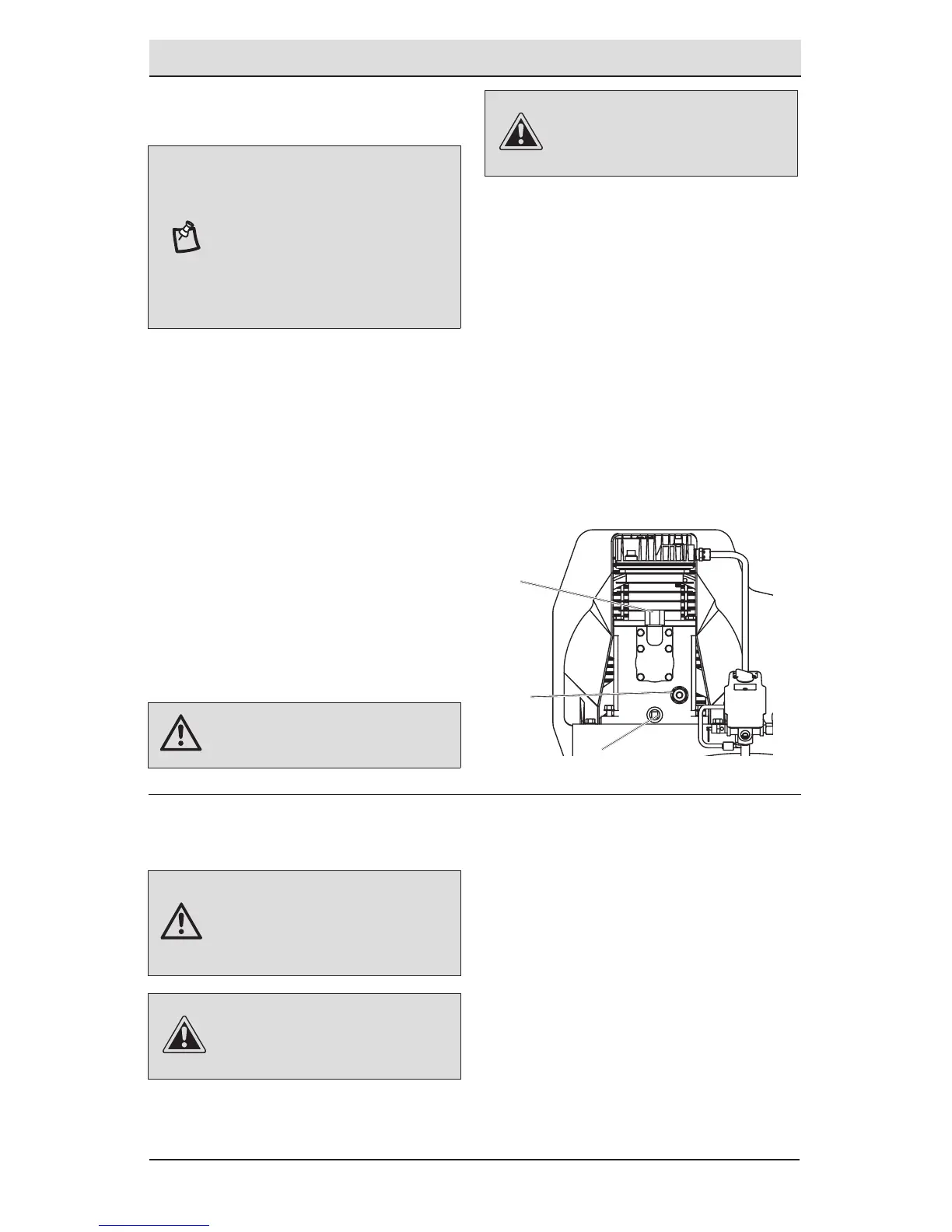

Oil (Figure 6)
NOTICE: Risk of property
damage. Use air compressor oil
only. Multi-weight automotive
engine oils like 10W30 should
not be use in air compressors.
They leave carbon deposits
on critical components, thus
reducing performance and
compressor life.
NOTE: Use 30W compressor oil or a heavy
duty SAE 30W, non-detergent, SF grade
or better oil. DO NOT use multi-weight
automotive engine oils, they will reduce
compressor life. Under extreme winter
condition use SAE-10 weight oil.
NOTE: Crankcase oil capacity is
approximately 29 uid ounces (857,6 ml).
Checking
1. The oil level should be to the middle of
the sight glass (N).
2. If needed remove oil ll plug (L) and
slowly add oil until it reaches the middle
of the sight glass.
Changing
WARNING: Drain tank to release
air pressure before removing the
oil ll cap or oil drain plug.
CAUTION: Overlling with
oil will cause premature air
compressor failure. Do not
overll.
1. Remove the oil ll plug (L).
2. Remove the oil drain plug (M) and drain
oil into a suitable container.
3. Replace the oil drain plug (M) and
tighten securely.
4. Slowly add compressor oil until it
reaches the middle of the sight glass
(N).
NOTE: When lling the crankcase, the
oil ows very slowly into the pump.
If the oil is added too quickly, it will
overow and appear to be full.
5. Replace oil ll plug (L) and tighten
securely.
FIGURE 6
L
N
M
2
Air Filter
WARNING: Hot surfaces. Risk
of burn. Compressor heads are
exposed when lter cover is
removed. Allow compressor to
cool prior to servicing.
CAUTION: Keep the air lter
clean at all times. Do not operate
the air compressor with the air
lter removed.
A dirty air lter will not allow the air
compressor to operate at full capacity. Keep
the air lter clean at all times.
1. Remove the air lter cover.
2. Remove the air lter from lter cover.
4. Place new air lter into lter cover.
5. Replace air lter cover to pump.
Maintenance (continued)

Husky C601H Specifications

General

Brand	Husky
Model	C601H
Category	Air Compressor
Language	English
