Maintenance

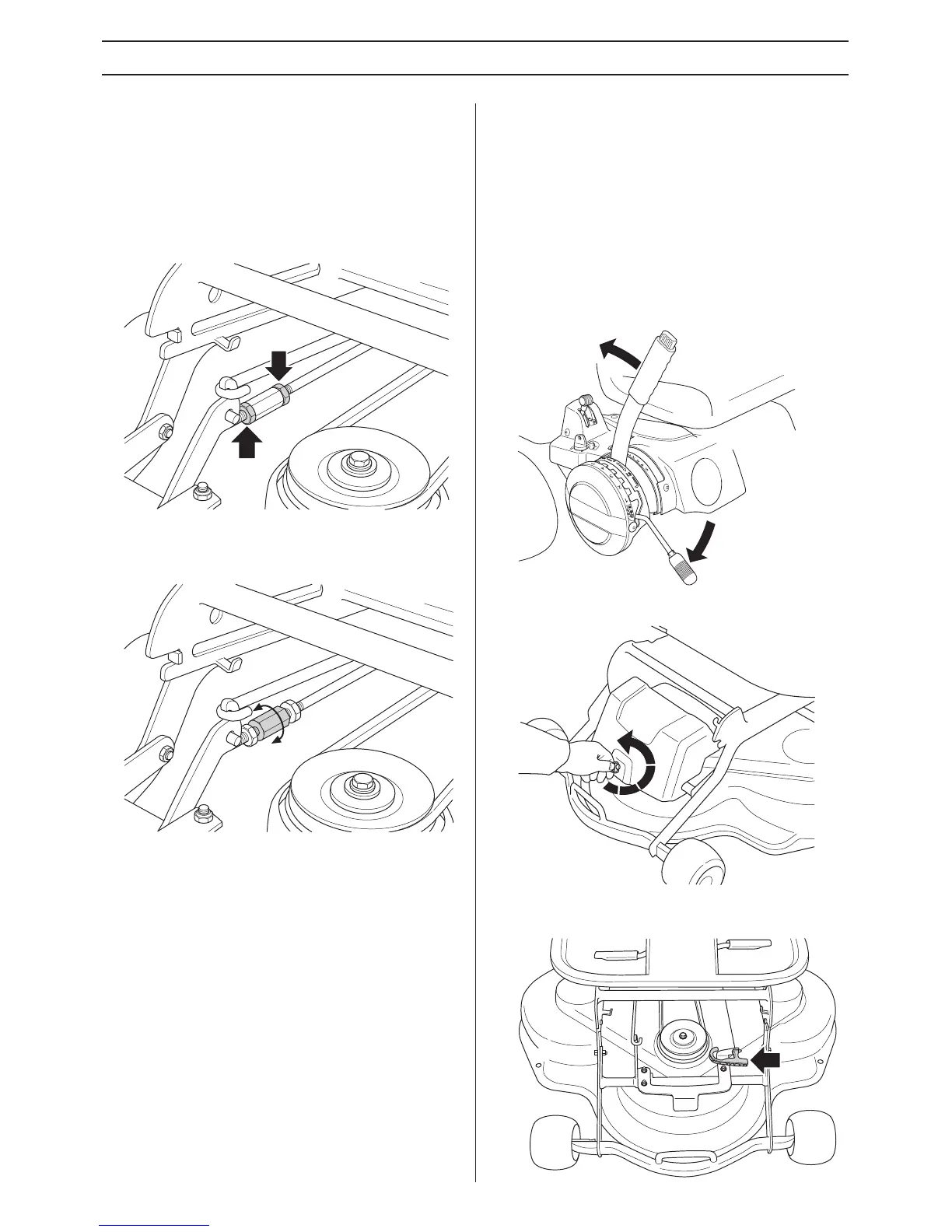

Adjusting the parallelism of the
cutting unit
1 Check the air pressure in the tyres 60 kPa/0.6 kp/cm
2
/8.5
PSI.
2 Remove the front cover.
3 Loosen the parallelism stay’s nuts, the inner nut has a left-
hand thread.
4 Screw out (extend) the stay to raise the rear edge of the
cover. Screw in (shorten) the stay to lower the rear edge
of the cover.
5 Tighten the nuts after adjustment.
6 On completion of the adjustment the unit’s parallelism
should be re-checked.
7 Fit the front cover.
Service position for the cutting unit
The cutting head can be placed in the service position to
provide easy access for cleaning, repairs and servicing. In the
service position the cutting unit is raised and locked in the
vertical position.
Placing in the service position
Rider 11 C, 13 C, 16 C, 16 AWD
1 Position the machine on flat ground. Apply and lock the
parking brake. Set the cutting height control in the lowest
position and lift up the cutting unit.
2 Remove the front hood by removing the pin.
3 Loosen the spring on the drive belt’s belt idler by
loosening the handle.
