lish – 31
Maintenance

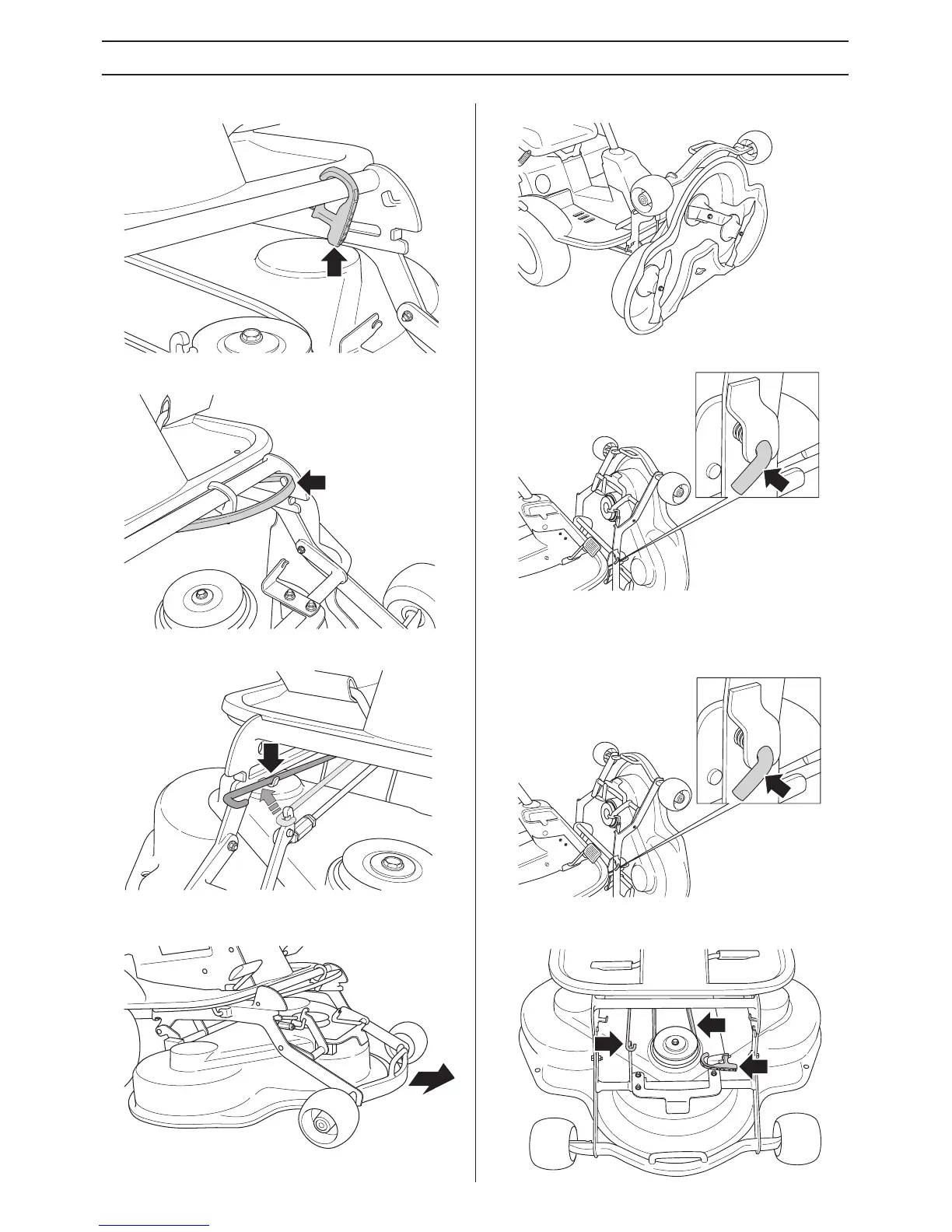

4 Place the handle on the frame arch.
5 Lift off the drive belt and hang on the load-relieving hook.
6 Loosen on the cutting height stay and place in the holder.
7 Grip the front edge of the unit and pull forwards until it
stops.
8 Lift the unit until it stops and a clicking sound is heard.
9 The unit locks automatically in the vertical position.
Restoring from service position
1 Grip the front edge of the unit and loosen the lock, fold
down and slide in the unit.
2 Replace the cutting height stay and the belt. Tension the
belt with the belt adjuster.
