MONTAGE
French – 33

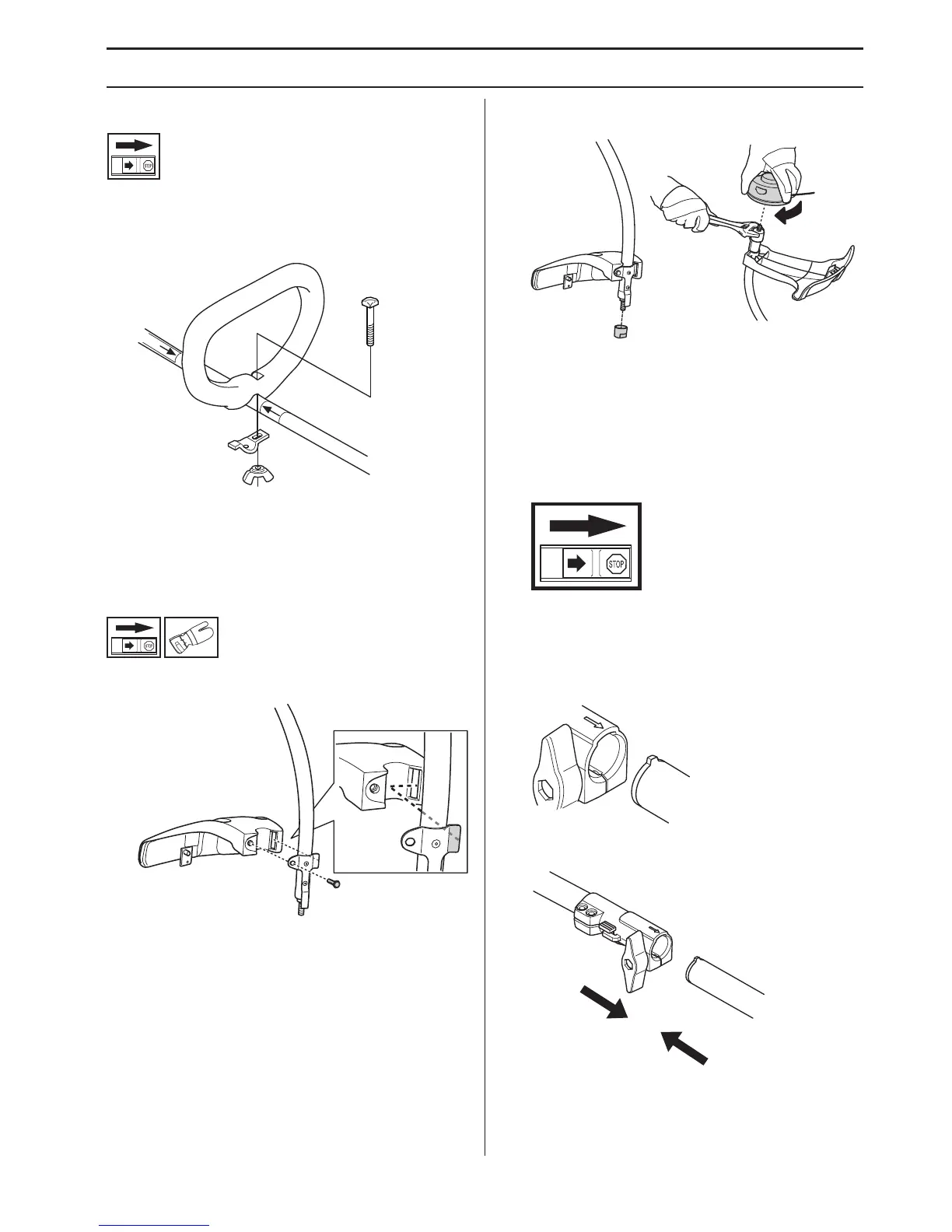

Montage de la poignée en boucle
• Placer la poignée anneau sur le tube de transmission.
Noter que la poignée anneau doit être montée entre
les flèches indicatrices situées sur le tube de
transmission.
• Monter le boulon, la plaque de serrage et l’écrou à
oreilles comme indiqué sur la figure
. Serrer l’écrou à
oreilles.
Montage de la protection de la
tête et de la tête de désherbage
• Installer la protection comme indiqué sur la figure.
Serrer fortement.
• Monter le pare-poussière sur l’arbre. L’écrou doit être
complètement entouré par le pare-poussière
.
• Maintenir le pare-poussière avec la clé à griffes pour
l’empêcher de tour
ner.
• Visser la tête de coupe sur l’arbre.
Montage et démontage d’un tube
de transmission démontable
(122LDx-series)
Montage:
• Desserrer le raccord en tournant la manette.
• Aligner la languette de la fixation (A) sur la flèche du
r
accord (B).
• Pousser la fixation dans le raccord jusqu’à ce qu’un
déclic indique qu’elle est bien en place
.
A
B
