ASSEMBLY
1151416-95 Rev. 1 2008-12-23

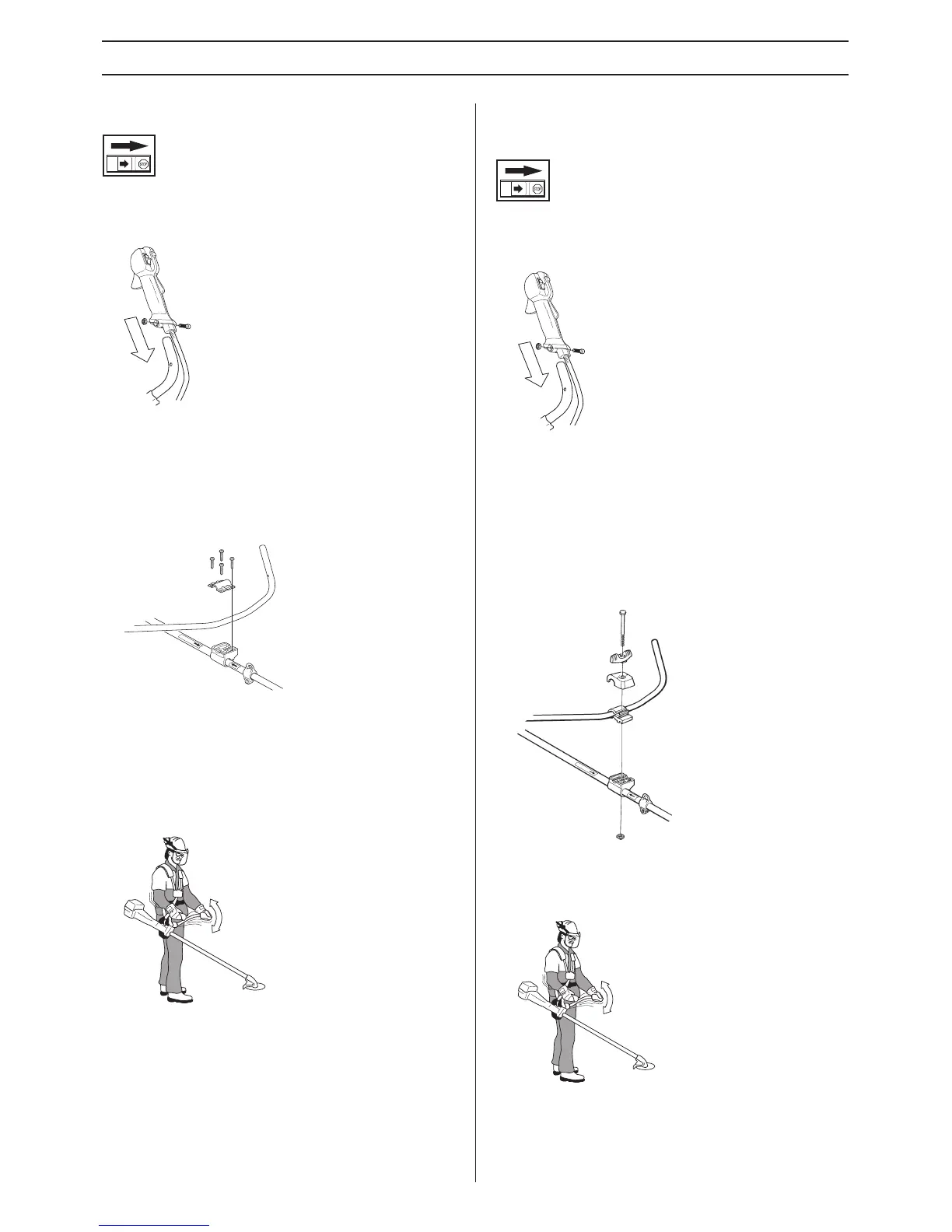

Fitting the handlebar (323R)
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diagram).
• Align the screw hole in the throttle handle with the hole in
the handlebar.
• Refit the screw in the hole in the rear of the throttle handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Fit the mounting components as shown.
• The handle mounting must be fitted between the arrows
on the shaft.
• Loosely tighten the four screws.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that the
machine is in a comfortable working position when it
hangs from the harness. Tighten the screws.
Fitting the handlebar (325Rx,
325RDx)
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diagram).
• Align the screw hole in the throttle handle with the hole in
the handlebar.
• Refit the screw in the hole in the rear of the throttle handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Unscrew the knob from the handlebar mounting.
• Position the handlebar as shown. Fit the mounting
components and tighten the knob lightly.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that the
machine is in a comfortable working position when it
hangs from the harness. Tighten the knob.
